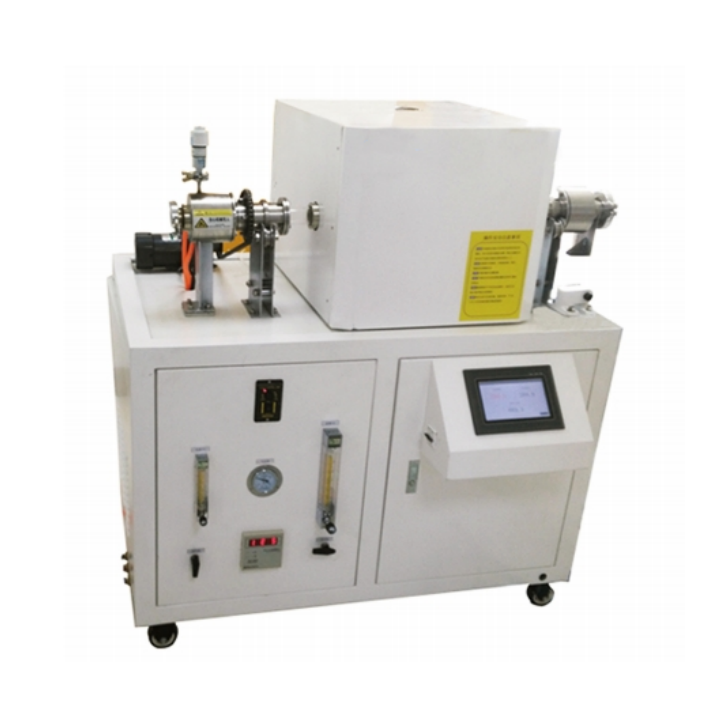

Lab 1100C Dia 40mm or 80mm Rotary Microwave Tube Furnace with Rapid Pre-vacuuming Function
Summarize
Microwave rotary tube furnace is a standardized rotary atmosphere tube furnace, which is suitable for synthesis, firing, heat treatment, sintering and other processes under various atmosphere conditions, especially for the roasting of new materials, the reaction reduction and synthesis of particles such as lithium ion battery materials.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;
3) The material is dynamically turned in the furnace, and the heat is uniform, and the reaction is fast and sufficient; Special insulation structure, energy saving and high efficiency;
4) The time of gas replacement can be greatly saved by using pre-vacuuming method.
5) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved.
Technical parameter
|
Model
Parameter |
HY-XZ1510 |
HY-XZ3010 |
|
|
Voltage |
220±10V，50Hz |
220±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
|
Heating space (diameter x length) |
φ40x130mm |
Φ80x250mm |
|
|
Microwave frequency |
2.45GHz |
||
|
Tilt Angle |
-5~+35° |
||
|
Rotational speed |
5~30 RPM |
||
|
Operating temperature |
≤1100℃ |
||
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Static limit vacuum |
≤100Pa |
||
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 650x700x1200mm |
About 850x850x1300mm |
|
