Good Uniformity High Vacuum Microwave Furnace or Multi-functional Atmosphere Microwave
Summarize

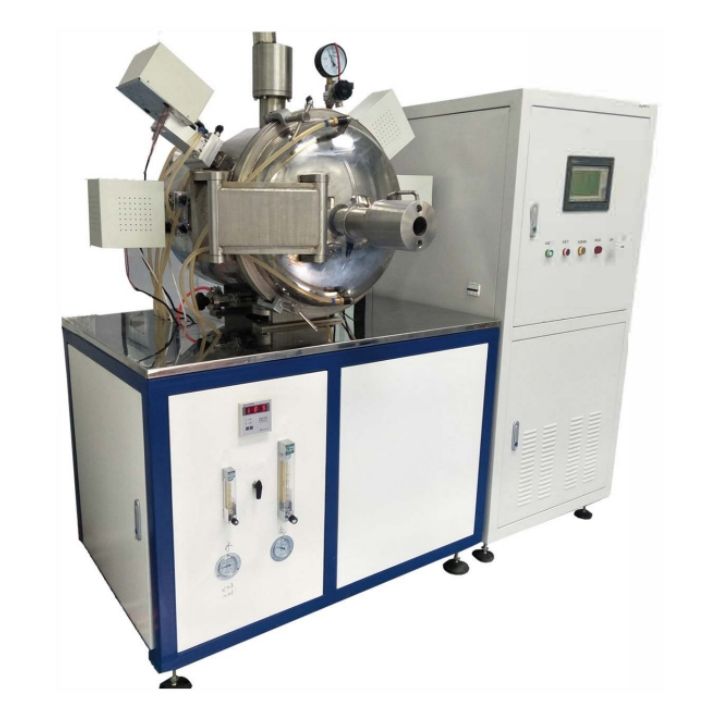

HY-ZK microwave vacuum furnace is a standard multi-functional microwave high temperature vacuum experimental workstation, which is suitable for sintering, synthesis, roasting and heat treatment under various atmosphere conditions. In particular, microwave-vacuum synthesis or sintering can be achieved, and more fine-grained atmosphere control can be provided for atmosphere-sensitive experiments.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) Equipped with two-stage vacuum unit and multi-channel atmosphere control system to provide high vacuum or fine atmosphere conditions for experiments;
3) Choose a variety of original crucible and insulation structure, no pollution to the material;
4) Fast heating, fast material heating speed, greatly improve the experimental efficiency;
5) Large sintering space, good uniformity, can be small batch production;
6) The time of gas displacement can be greatly saved by using pre-vacuuming method.
Technical parameter
|
Model
Parameter |
HY-ZK3016 |
HY-ZK6016 |
|
Voltage |
380±10V, 50Hz |
380±10V, 50Hz |
|
Microwave output power |
0.01~2.80kW, continuously adjustable (Panasonic) |
0.01~5.60kw, continuously adjustable (Panasonic) |
|
Heating space (D x H) |
φ150x120mm |
φ180x150mm |
|
Microwave frequency |
2.45GHz |
|
|
Operating temperature |
1550℃ under atmosphere protection; 1400℃ under vacuum |
|
|
Temperature measurement method |
Infrared |
|
|
Static limit vacuum |
≤10-3Pa |
|
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
|
|
Pneumatic control |
Control pneumatic vacuum flapper valve |
|
|
Heated platform rotation seal and rate |
Magnetic fluid: 4-6rpm |
|
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|
|
Main body (L x W x H) |
About 2100x1000x2000mm |
|
Consumables and optional accessories
