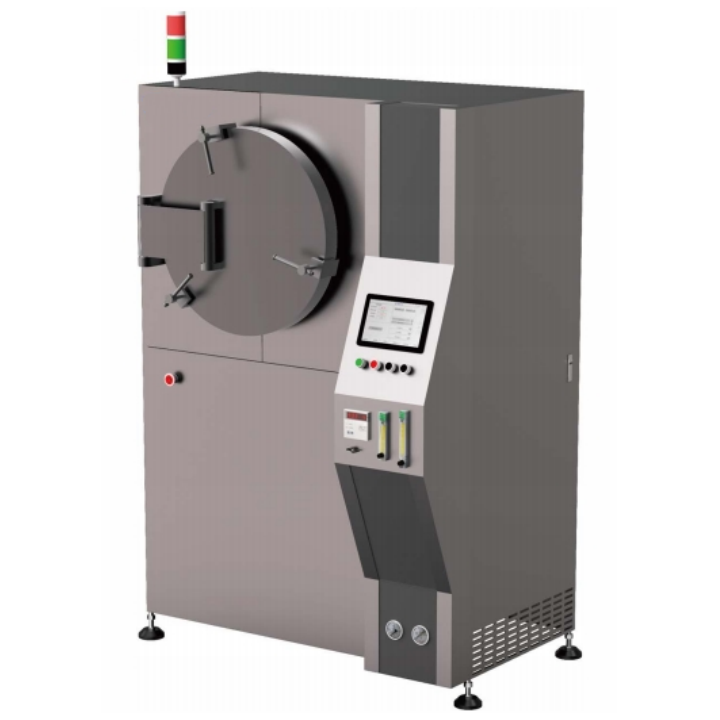

High Temperature Microwave Vacuum Atmosphere Furnace Optional Water Cooler And Infrared Thermometer
Summarize
HY-ZKG microwave multifunctional experimental furnace is a dual-structure microwave vacuum experimental workstation, with vacuum controlled atmosphere and high temperature experimental conditions, suitable for the synthesis, sintering, calcination and heat treatment of various materials under vacuum or atmosphere conditions.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) It has two kinds of furnace cavity structure, tube type and box type, which is convenient and simple to switch;
3) Using the original insulation structure, energy saving and high efficiency, no pollution to materials;
4) Professional vacuum design, unique sealing technology, multi-channel atmosphere conditions, can meet a variety of experimental needs;
5) Rapid heating, greatly shorten the process time.
Technical parameter
|
Model Parameter |
HY-ZKG3016 |
|
Voltage |
380±10V，50Hz |
|
Microwave output power |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
Heating space |
Box type: 120x120x80mm (L x W x H); Tube type: φ40x80mm (diameter x length) |
|
Microwave frequency |
2.45GHz |
|
Operating temperature |
1550℃ under atmosphere protection; 1400℃ under vacuum |
|
Temperature measurement method |
Infrared |
|
Static limit vacuum |
≤10-3Pa |
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|
Main body (L x W x H) |
About 1100x600x1950mm |
Consumables and optional accessories
