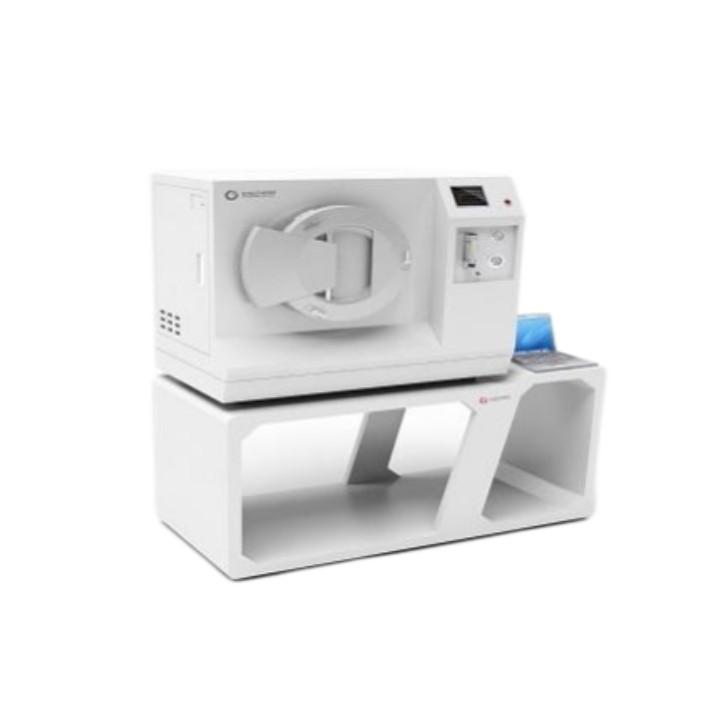

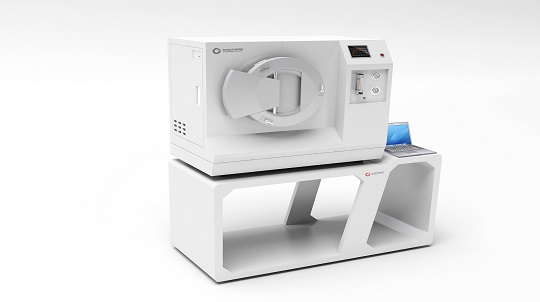

Lab 1600C High Temperature Microwave Sintering Furnace

Detailed Product Description

1. Temperature up to 1600 degree;
2. Compress sintering period;

3. Vacuum up to 100Pa;
4. No pollution to materials.

Description

HAMiLab-V1500 is our 3rd generation high temperature microwave laboratory system. It’s eloquent sophisticated design accents this system’s advanced state-of-the-art technology. It is composed of 4 sub-systems that are integrated to create a truly hands-off experience of processing materials metals, chemical biological samples. The only standard in manufactured high-temperature, high-power research furnaces. HAMiLab-V is composed of a vacuum sealed, stainless steel heating chamber that is attached to vacuum gas-infiltration systems that provides a highly controlled environment for processing samples. Energy is delivered to the sample loads by direct energy transfer form a high precision micro head, capable of delivering up to 6kw of microwave power to heat samples to temperatures only limited by the state-of-the-art in insulation materials.

 Application fields

1. Compounding sintering of inorganic powders

1). Carbide: SiC, CrC, VC, etc

2). Nitride: Si3N4, MnxNy, AlN, VN, CrN, etc

3). Electronic ceramic powder: barium titanate, barium-strontium titanate, strontium titanate, barium zirconate titanate, etc.

4). Fluorescent powder (LED powder, three primary colors, long after glowing phosphor powder, etc)

5). Lithium-ion battery material: lithium cobaltoxide, lithium manganate, LiFePO4, etc, anode cathode carbon materials.

6). Multi colors ceramic pigment, glaze material, ceramic raw material, etc.

2. Inorganic materials/products sintering

1). Electronic ceramic: BaTiO₃, SrTiO₃, ZnO piezoelectric ceramics, PTC thermo-sensitive components, etc.

2). Bio medical ceramic: man-made bones, teeth, MgO, Al₂O₃, ZrO₂, SiC, Y2O₃, Si₃N₄, SiO₂, etc high performance structure ceramic.

3). Daily-used ceramics, arts crafts ceramic.

3. Incinerating

4. Melting thermal treatment

5. Melt oxidized ore carbon thermal reduction

Configurations performance

1. Using stepless adjustable, high stability long life time, CW industry level microwave source to make sure that the system can run continuous stable for long time.

2. Use high accuracy IR thermometer to measure sample temperature directly.

3. Equipped with 2nd level high vacuum machine unit multi channels gas way, atmosphere in the furnace can be controlled accurately.

4. Equipped with embedded computer control system, provide 3 operation modes: manual, auto constant temperature which can be free switched.

5. Multi original special crucible can be chosen, material placed in the crucible will not be polluted.

6. Materials with different coupling degree with microwave source can be processed—with high universality.

7. Set anticorrosion exhaust way to exhaust gas produced in the heating process quickly.

8. Real time temperature chart display can dynamic monitor the heating process.

9. Secure reliable microwave shielding chamber design, multi leakage-proof protection.

Technical specifications
