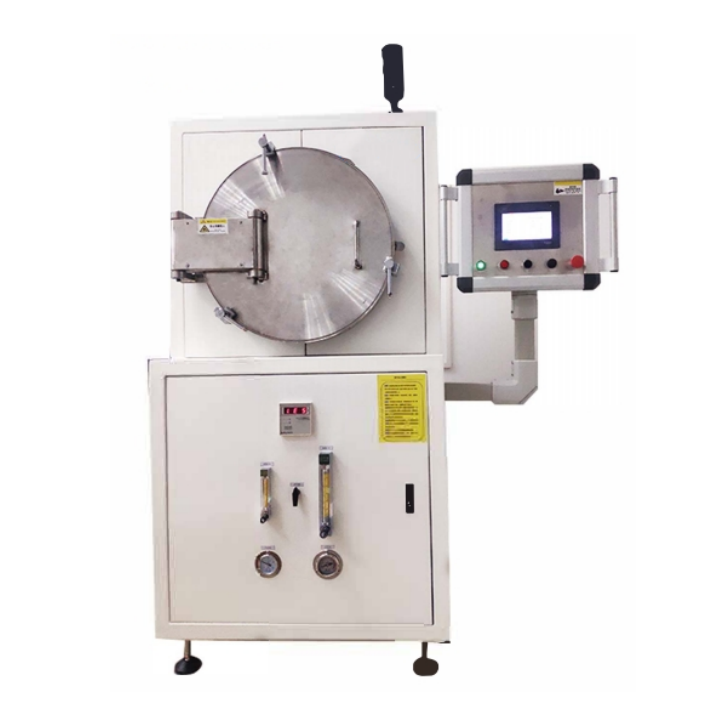

Lab 1550C Microwave Atmosphere Furnace with Rapid Pre-vacuuming Function
Summarize
HY-QS3016 microwave atmosphere furnace is a new generation of standardized multi-function microwave gas box type furnace, which is suitable for synthesis, roasting, heat treatment and sintering under various atmosphere or vacuum conditions.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) The time of gas replacement can be greatly saved by using pre-vacuuming method.
3) Various types of unique special crucible and insulation structure can be selected, no pollution to the material;
4) It can use a variety of temperature measurement methods at 1600°C to carry out various reaction process research;
5) Rapid heating, greatly improve the experimental efficiency, good uniformity;
6) The furnace structure design is reasonable and the operation and maintenance is simple.
Technical parameter
|
Model
Parameter |
HY-QS3016 |
|
Voltage |
380±10V，50Hz |
|
Microwave output power |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
Heating space |
120x120x80mm |
|
Microwave frequency |
2.45GHz |
|
Operating temperature |
1550℃ |
|
Temperature measurement method |
Infrared |
|
Static limit vacuum |
≤100Pa |
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|
Main body (L x W x H) |
About 1500x1000x2000mm |
Consumables and optional accessories
