Vacuum Lab Lithium Battery Doctor Blade Automatic Film Coater Equipment

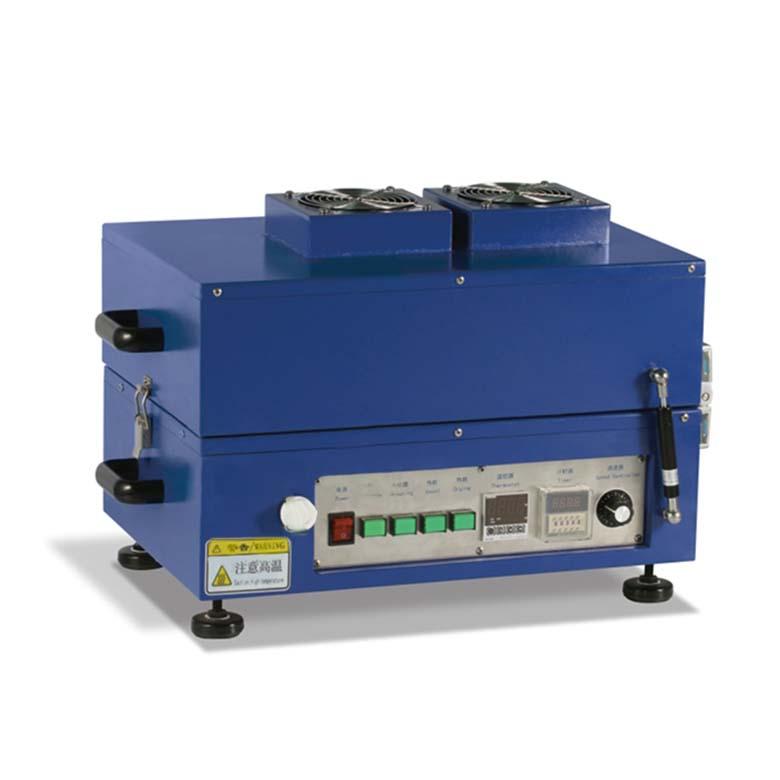

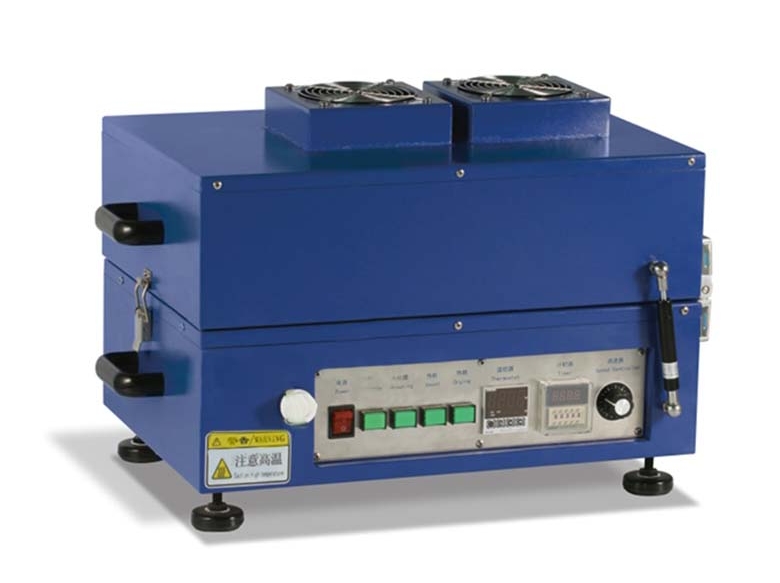

Product Name: Automatic Coating Dryer MRX-TMH250

The products are widely used in the research of various high-temperature coating films, such as ceramic films, crystal films, battery material films, and special nano-films; they can adapt to the development of science and technology for film formation under high-temperature conditions in the future. Lithium battery automatic coating dryer.

Features:

a. Using large-area uniform heating to ensure high-precision uniform temperature in the cavity;

b. Flat-plate coating, motor-driven scraper coating, stable and adjustable coating speed;

c. The coating speed is adjustable, and the vacuum aluminum plate can quickly place or remove copper foil, aluminum foil, etc., with a built-in vacuum pump or an external vacuum source, and the substrate is adsorbed without deformation;

d. Standard film maker, high coating precision, adjustable coating thickness;

e.  Can be used in the glove box, easy to operate, small in size, saving space;

f. PLC. touch screen control and easy setting of parameters;

Technical parameter:

a. Coating method: flat plate coating, standard MRX-TM100 film maker (can be enlarged), optional scraper bar, wire bar and other meters(manual scraping);

b. The coating width is adjustable from 6.4-100mm, and the coating stroke is about 250mm, and the stroke can be adjusted steplessly in the touch screen;

c. Coating drive: driven by motor, the coating speed can be adjusted steplessly in the touch screen;

d. Coating speed: 0~120mm/sec (such as lithium iron phosphate slurry);

e. Vacuum plate: with vacuum aluminum plate;

f. Vacuum plate size: L365mm×W200mm×H32mm;

g. Scraper adjustable range: 0 ~ 6mm adjustable;

h. Accuracy: ±3μm, optional 1μm dial gauge;

i. Heating and drying system: room temperature to 150°C, digital display temperature controller, accuracy ±1°C;

j. Contains a built-in oil-free vacuum pump;

k. Power supply: 220V/50Hz;

l. Weight: 50KG;

m. Dimensions: L505mm×W355mm×H325mm;
