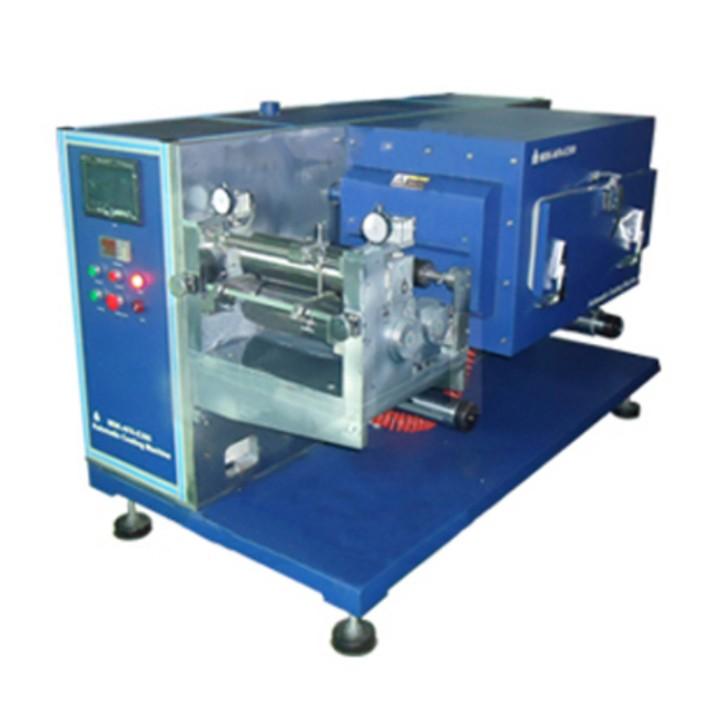

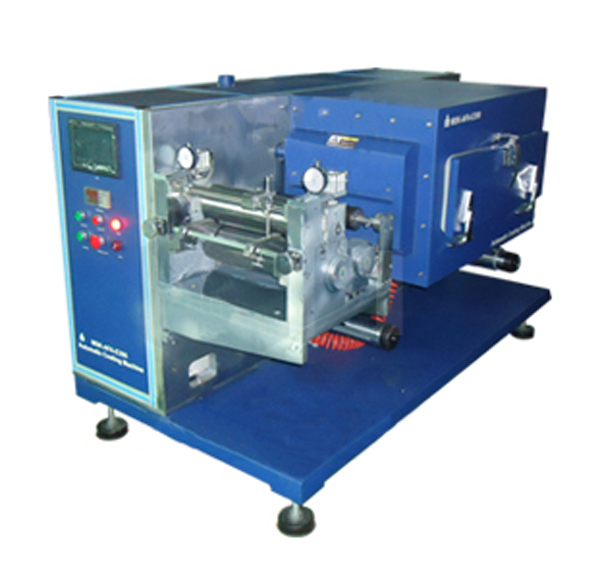

Laboratory Continuous Automatic Coater Equipment for Foil Surface Coating
Product Name: Continuous Experimental Automatic Coater
MSK-AFA-EC300 continuous experimental automatic coater is an automatic equipment specially for foil surface coating, with PLC control system and humanized Chinese and English switchable operation interface; it adopts three-roller transfer type coating, which can achieve a very uniform thin coating on the substrate surface and dry automatically by drying system. This machine can be continuously and uninterruptedly coated, which is suitable for battery's R&D experiment and sample production, etc. And it has certain versatility, and it is also widely used in film, paper and composite material industries, and has high production efficiency.
Features:
1. With automatic stirring bar, which makes the slurry more uniform when coating.
2. Automatic tape walking, automatic winding, and equipped with automatic winding correction system, making the winding more neat and beautiful.
3. With drying system, automatic drying of coating.
4. Adjustable coating tension, continuous non-intermittent coating, high precision coating.
5. According to the actual needs, you can also choose NMP recovery device.
6. It has passed CE certification.
Technical parameters：
Product Name
MSK-AFA-EC300 continuous experimental automatic coater
Model Number
MSK-AFA-EC300
Mounting Conditions
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.
1. Water: without
2. Electricity: AC220V 50Hz, must be well grounded
3. Gas: need to prepare their own air source or air compressor
4. Working station: Size 800mm×600mm×700mm, load capacity over 200kg
5. Ventilation device: required
Main Parameters
1. Input power：AC220V 50Hz
2. Maximum power: about 5KW
3. Input gas source: 0.5MPa-0.8MPa compressed air
4. Width of substrate: max. 280mm
5. Coating width：Max. 260mm
6. Coating speed: 100mm/min-600mm/min
7. Coating accuracy: ±3µm (edge error ±5µm)
8. Coating roller diameter: Ø100mm
9. Coating roller runout: ≤2µm
10. Unwinding and winding diameter: max. 250mm
11. Unwinding and winding tension: 5N-40N adjustable
12. Scraper positioning accuracy: micrometer display, accuracy ±1µm
13. Deflection accuracy: ±0.5mm
14. Drying temperature: maximum 150℃±5℃
15. Oven length: 800mm
16. Drying method: resistance wire heating, up and down blowing wind
Product Specification
Size: 1530mm x 950mm x 1080mm.
Weight: 1000kg
