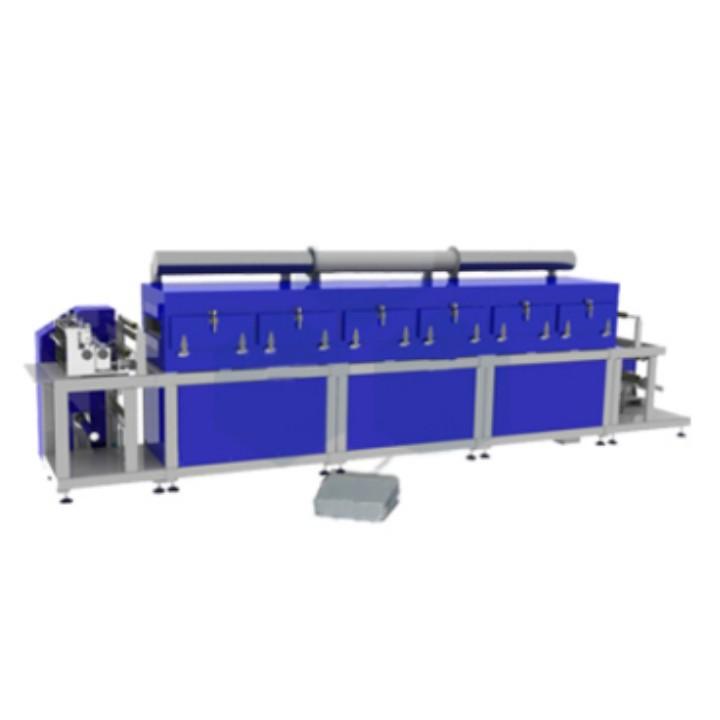

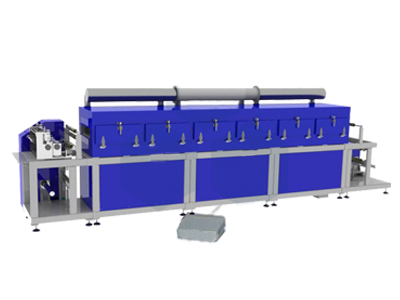

Lab Automatic Foil Surface Coating Coater Equipment with PLC and Man Machine Control System
Product Name: Lab Automatic Coater
MSK-AFA-EI400 automatic coater is specially used for foil surface coating, with PLC and man-machine control system, humanized Chinese and English switchable operation interface. This machine adopts three-roller transfer coating, which can apply a very uniform thin coating on the surface of the substrate and dry automatically by the drying system; continuous and intermittent coating can be realized during coating. This machine is suitable for battery making, R&D, experiment and sample making, etc. It has certain versatility and is also widely used in film, paper and composite material industries.
Features:
1. Automatic slurry mixing, automatic unwinding and winding.
2. With winding and deflection correction system and automatic drying system.
3. Adjustable coating tension and high coating precision.
4. According to the needs of optional NMP solvent treatment device.
Technical parameters：
Product Name
MSK-AFA-EI400 automatic coater
Model Number
MSK-AFA-EI400
Mounting Conditions
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.
1. Water: without
2. Electricity: AC380V 50Hz, must be well grounded
3. Gas: need to prepare their own air source or air compressor
4. Working station: floor-type equipment, covers an area of 7500mm × 1500mm
5. Ventilation device: required
Main Parameters
1. Power supply: three-phase AC 380V 50Hz
2. Power：30KW
3. Gas source: 0.5MPa-0.8MPa compressed air
4. Effective coating width: 350mm
5. Coating roller width: 400mm
6. Machine speed：Max. 5m/min
7. Coating speed: 3m/min
8. Surface error after drying: ±2.5µm (edge error ±5µm)
9. Coating length: single piece 5000mm
10. Length of white space: 10mm-100mm
11. Reel positioning accuracy: ±0.5mm
12. Drying temperature：Max 150℃±3℃
13. Deflection accuracy: ±0.5mm
14. Drying temperature: max. 150℃±5℃
15. The length of the oven: single section 1.5m, three sections, a total of 4.5m
16. Drying mode: hot air convection type (electric heating)
17. Tension control: ≤ 60N
18. Winding and unwinding shaft core: 3 "air expansion shaft
19. Coating thickness: 30µm-1000µm
20. Coating roller: steel wheel, Ø120mm
21. Coating roller runout: ≤3µm
22. Scraper positioning accuracy: ±1µm (micrometer display)
23. Deflection accuracy: ±0.5mm
Product Specification
Size: 6500mm×1200mm×1600mm
