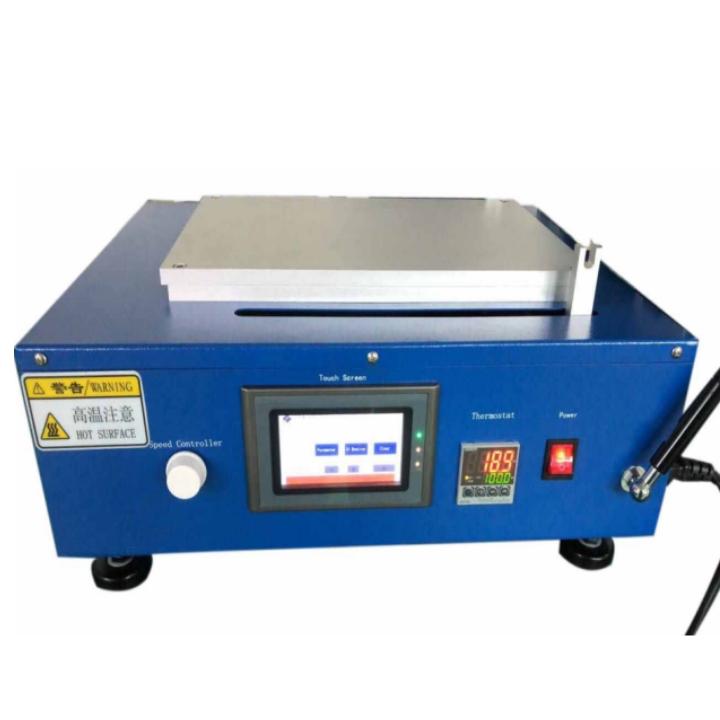

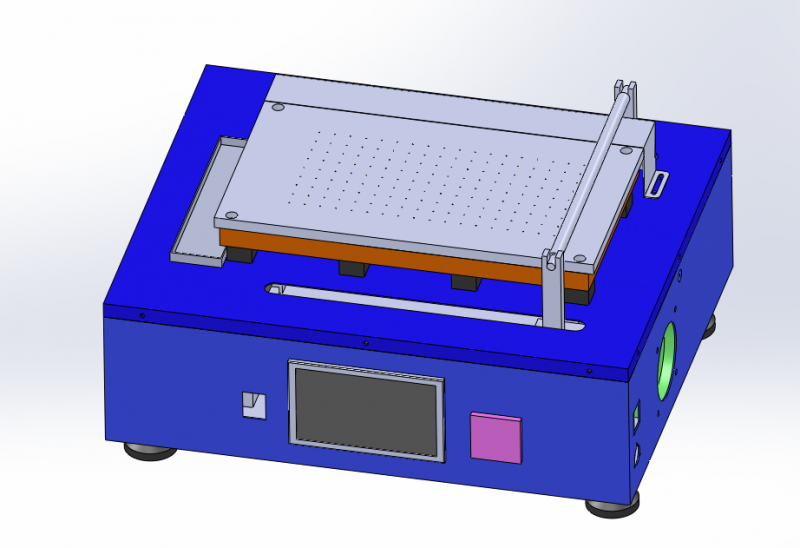

Lab Dr Blade Automatic Film Coater Coating Machine with

Heating and Vacuum Function

Product Name:Heating Type Flat Film Coating Machine

It is widely used in the research of various high-temperature coating films, such as ceramic films, crystal films, battery material films, and special nano-films; it can adapt to the development of science and technology for film formation under high temperature conditions in the future. Automatic coating machine

Features:

a.  Drying and heating, digital display temperature control, working temperature 130°C;

b. Digital display timer, the drying time can be set freely;

c. Coating speed is adjustable within the range of 0-120mm/sec (lithium iron phosphate slurry);

d.  Vacuum aluminum plate, can quickly place or remove the substrate;

e. The stroke can be adjusted by the stroke switch between 0 and 250mm;

f. With a scraper to adjust the thickness of the coating film (accuracy 0.01mm);

g. Small size, saving space;

h. Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;

 Technical parameter:

a. Coating speed: 0~120mm/s (lithium iron phosphate slurry);

b. The stroke can be adjusted by the stroke switch between 0 and 250mm;

c. Vacuum plate: with vacuum aluminum plate;

d. Vacuum plate size: L365mm×W200mm×H32mm;

e. Scraper adjustable range: 0 ~ 3.5mm;

f. Heating and drying system: room temperature to 130°C, digital display temperature controller, accuracy ±1°C

g. Including one oil-free vacuum pump;

h. Power supply: 220V/50Hz;

i. Weight: 49KG;

j. Dimensions: L505mm×W355mm×H325mm
