20T 30T 40T 60T Laboratory Electric Hydraulic Tablet Press Machine with Digital Pressure Gauge
New DYP-TS digital display series
DYP-TS series electric tablet press has two methods of electric and manual pressure. It is popular with users because of its beautiful appearance, fast boosting and convenient operation. The use of electric pressure and manual supplementary pressure can accurately control the pressure of the hydraulic press. It is widely used for pressing powder samples into various test pieces for dry scientific research and analysis, and can also be used as a common press.
The machine adopts digital pressure sensor, which is more accurate than pointer pressure gauge. When the output pressure value of the tablet press is lower than the lower limit of the set value, the machine will automatically start to supplement the pressure, which can realize the automatic pressure maintenance function for a long time.
Parameter
|
Equipment model |
DYP-20TS |
DYP-30TS |
DYP-40TS |
DYP-60TFS |
|
Pressure range |
1-20T (0-28MPa) |
1-30T (0-31.5MPa) |
1-40T (0-30MPa) |
1-60T (0-34MPa) |
|
Pressure conversion |
1T=1.4Mpa |
1T=1.05Mpa |
1T=0.75Mpa |
1T=0.56Mpa |
|
Piston diameter |
Dia95mmchrome cylinder |
Dia110mm chrome cylinder |
Dia130mm chrome cylinder |
Dia150mm chrome cylinder |
|
Maximum piston stroke |
30mm |
40mm |
50mm |
50mm |
|
Pressure gauge type |
XNNETS "S" electric digital display meter, range 0.0-40.0Mpa, accuracy 0.1Mpa
|
|||
|
Pressure stability |
<1MPa/10min |
|||
|
Pressurization method |
Electric pressurization/manual slow pressurization |
|||
|
Pressure Compensation method |
Automatic pressure compensation / Manual pressure compensation |
|||
|
Overall structure |
One-piece structure, no sealing connection of equipment, reducing oil leakage points
|
|||
|
Equipment power supply |
220V (50Hz/60Hz)
|
|||
|
Safety protection device |
none |
none |
none |
plexiglass protective cover |
|
Table diameter |
105mm, |
120mm |
140mm |
160mm |
|
Working space |
width 80×150mm |
width 92×160mm |
width 115×185mm |
width 185×250mm |
|
Overall dimension |
245×415×415mm |
275×430×420mm |
295×450×500mm |
405×470×565mm |
|
Equipment weight |
58kg
|
72kg |
92kg |
140kg |
|
Model description |
1 hydraulic press, mold optional. Four columns, can be customized to increase height, can add "F" plexiglass protection device |
|||

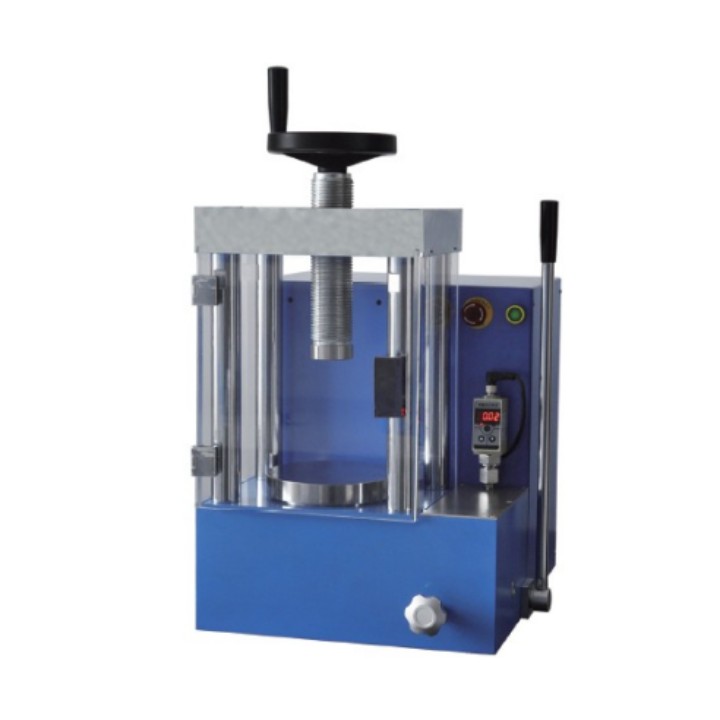

20T 30T electric press

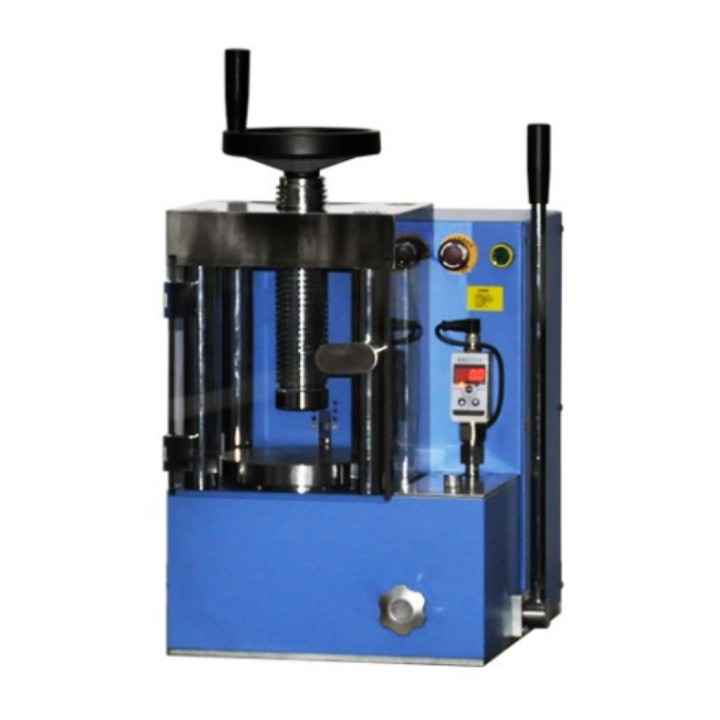

40T electric press

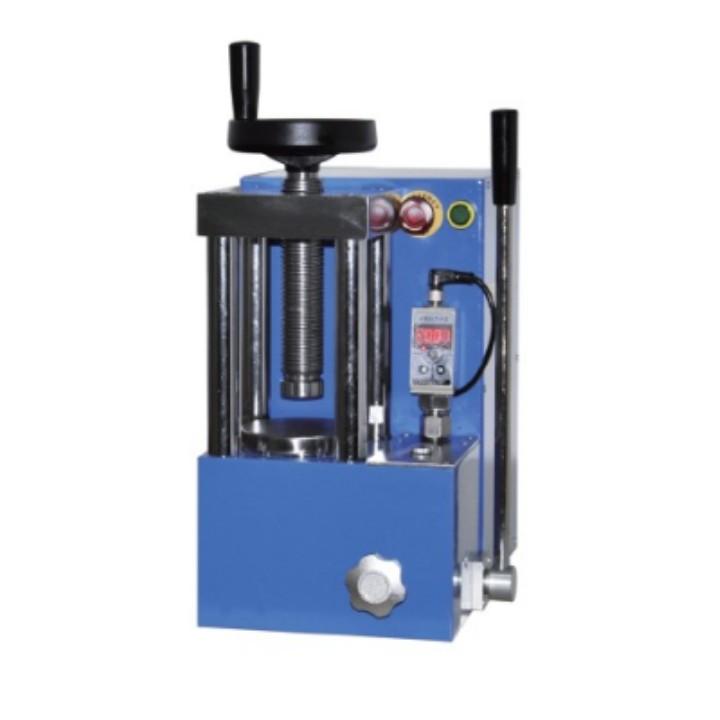

60T electric press
