100T 150T Large Tonnage - Electric Powder Press
New DYP-TFZ liquid display series

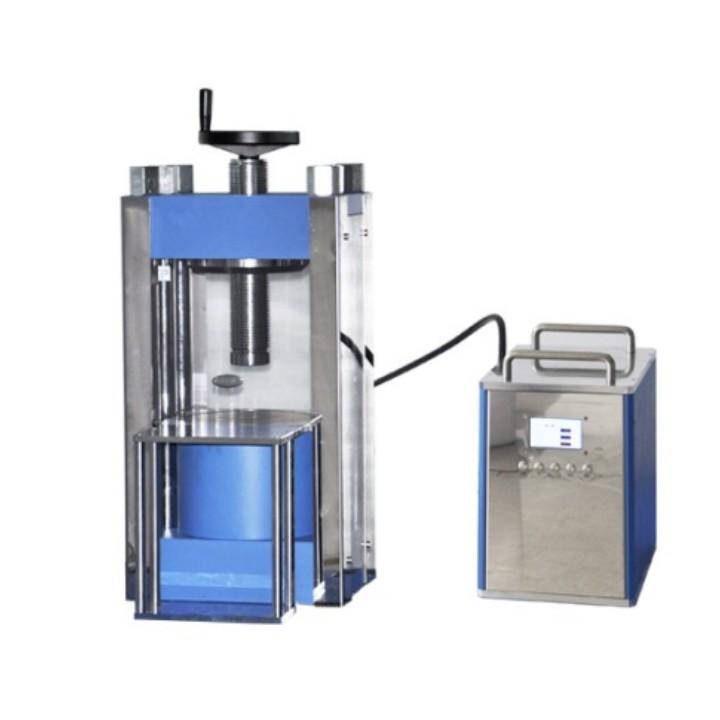

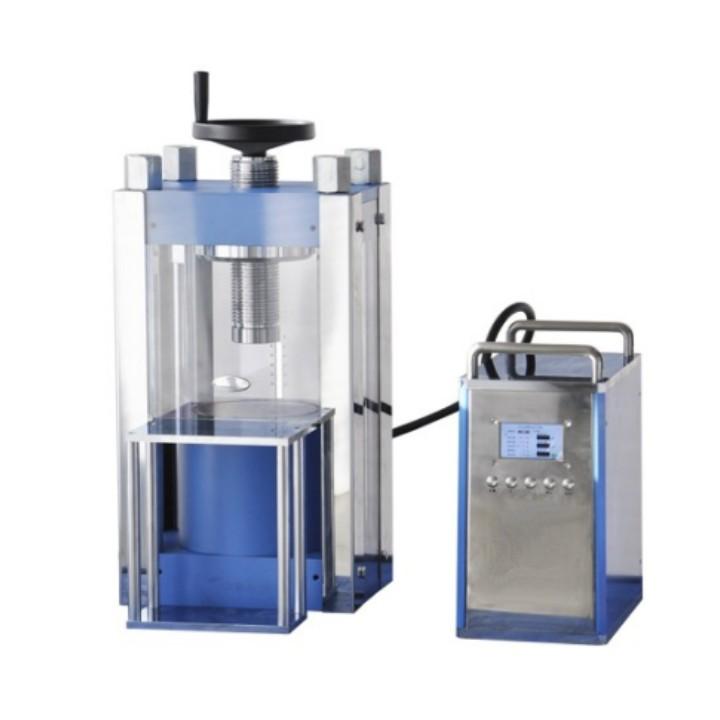

DYP-TFZ series electric tablet press adopts a split structure, which is developed to meet the needs of customers with large pressure and large space. It is mainly used for samples that need to be tested under high pressure or high pressure, such as ceramics, cement, oxidation It is another masterpiece developed on the basis of the small-tonnage electric tablet press.
The machine adopts intelligent program operation, 4.3-inch LCD screen, automatic pressurization/slow pressurization - program pressure maintenance, automatic pressure supplementation, and timing pressure relief. It is equipped with a plexiglass protective cover, and the operation is safe and secure.
Technical Parameters
|
Device model |
DYP-100TFZ |
DYP-150TFZ |
|
Pressure range |
1-100.0T |
1-150.0T |
|
Voltage regulation accuracy |
0.1t |
0.1t |
|
Piston diameter |
Dia200mm Plated Cylinder |
Dia250mm chrome cylinder |
|
Maximum cylinder stroke |
50mm |
|
|
Pressurized method |
Electric pressurization |
|
|
Sample preparation process |
Intelligent automatic, program pressurization/slow pressurization - program pressure maintaining/replenishing pressure - timed pressure relief - demoulding sampling |
|
|
Display method |
XNNETS 4.3 inch LCD viewing screen |
|
|
Compress time |
0-999.59(minute.second) |
|
|
Mold pressure conversion |
The program is automatically converted, and the digital display of the pressure of the mold sample (Mpa) |
|
|
Safety guard |
Steel plate protection with plexiglass protection door |
|
|
Whole frame |
Split structure |
|
|
Device power |
220V(50Hz/60Hz) |
220V(50Hz/60Hz) |
|
Workspace |
Width 260×400mm |
Width 285×460mm |
|
Dimensions |
850×500x1100mm |
950x600×1100mm |
|
Equipment weight |
520kg |
620kg |
|
Model Description |
1 hydraulic press, 1 controller, large tonnage and large space tablet press can be customized according to user needs. |
|
