Model

LITH-DYP-65TFS

Pressure range

0-65T

Piston diameter

Cylinder diameter 160mm(d)

Pressurization process

Program pressurization - program pressure maintenance - timed pressure relief

Compress time

0-999.59 minutes

Pressure conversion

The program automatically converts the pressure on the sample

LCD

4.3 inch LCD screen

Equipment protection

Steel protection with plexiglass door

Cylinder stroke

50mm (T)

Space size

220*300mm(M*N)

Dimensions

580*700*800mm(L*W*H)

Device power

220V(50Hz/60Hz)

Equipment weight

280kg

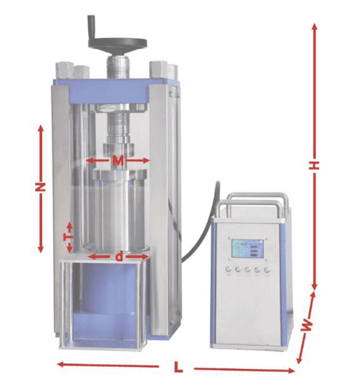

Tablet press size diagram
