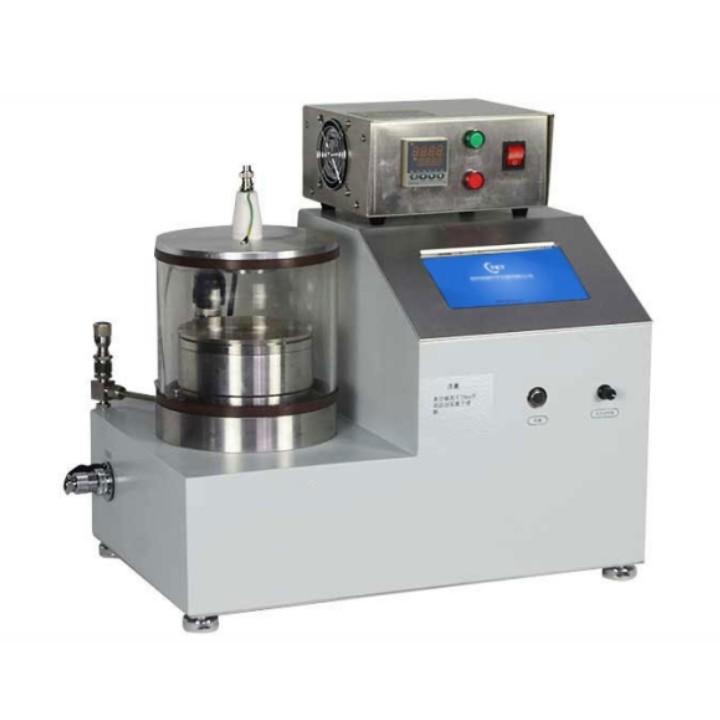

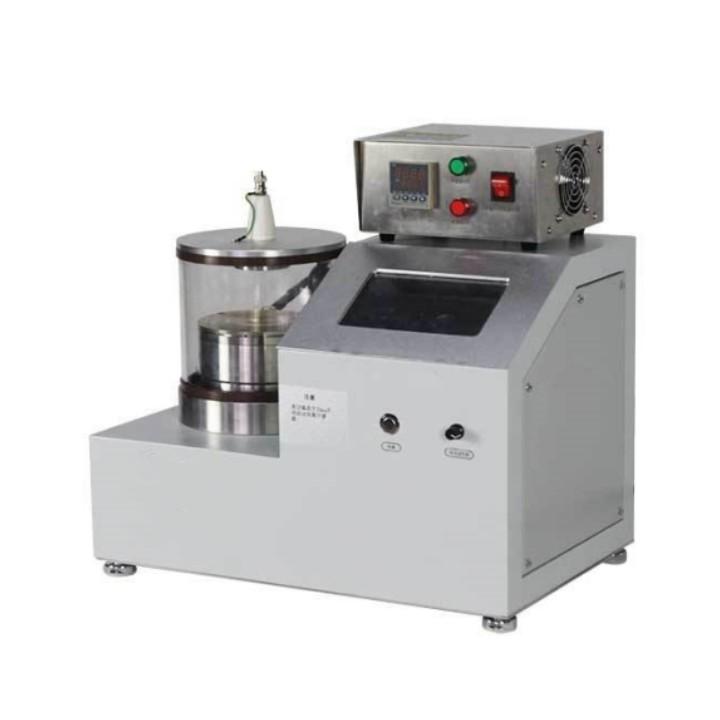

Small Single Target Plasma Sputter Coater Sputtering Coating Machine
Introduction
Single target plasma sputter coater is a cost effective plasma sputter coater developed by our company, which has the advantages of compact structure, easy to use, high integration and strong design sense. The plasma sputtering target is a standard size of 2 inches, and customers can choose different configurations of 1~3 targets according to their needs to meet different experimental requirements for plating single-layer films or multi-layer films of various materials. The instrument is equipped with a 150W DC high voltage power supply, which can be used for metal sputtering coating, especially for gold, silver, copper and other precious metals. The coating instrument is equipped with a venting interface for protective gas, if the customer needs to pass into the gas mixture, you can contact the staff to configure their own high-precision mass flow meter to meet the experimental needs.
Application
Can be used for metal sputtering coating, especially suitable for gold, silver, copper and other metals coating.
|
Main technical parameters |
||
|
Sample table |
Size |
Φ138mm |
|
Heating temperature |
Maximum 500℃ |
|
|
Temperature control accuracy |
±1℃ |
|
|
Rotation speed |
1-20rpm adjustable |
|
|
Plasma sputtering head |
1 x 2" plasma target |
|
|

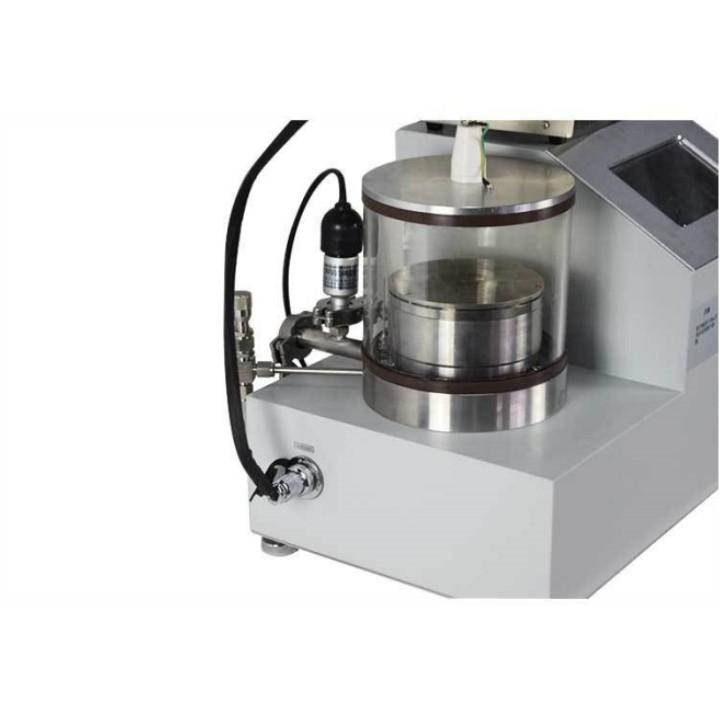

Vacuum chamber |
Cavity size |
Φ180mm×150mm |
|
Cavity material |
High purity quartz |
|
|
Viewing window |
Omnidirectional transparent |
|
|
Opening method |
Top cover removal type |
|
|
Front pole pump |
VRD-4 |
|
|
Pumping rate |
Rotary vane pump：1.1L/S |
|
|
Ultimate vacuum |
1.0E-1Pa |
|
|
Pumping interface |
KF16 |
|
|
Exhaust connection |
KF16 |
|
|
Vacuum measurement |
Digital vacuum gauge |
|
|
Others |

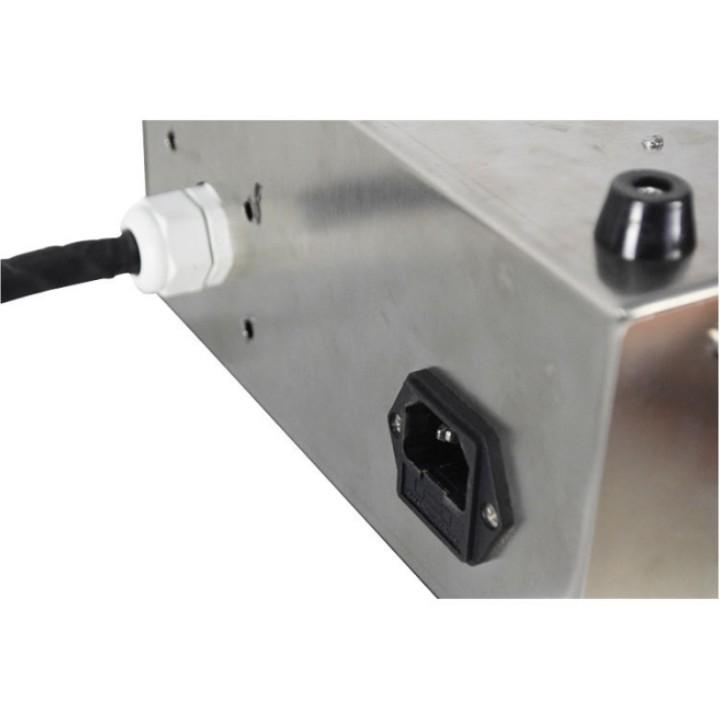

Supply voltage |
AC220V,50Hz |
|
Whole machine power |
800W |
|
|
Sputtering vacuum |
20Pa |
|
|
Whole machine size |
Length 360mmWidth 300mmHeight 470mm |
|
|
Weight of the whole machine |
30Kg |
|
