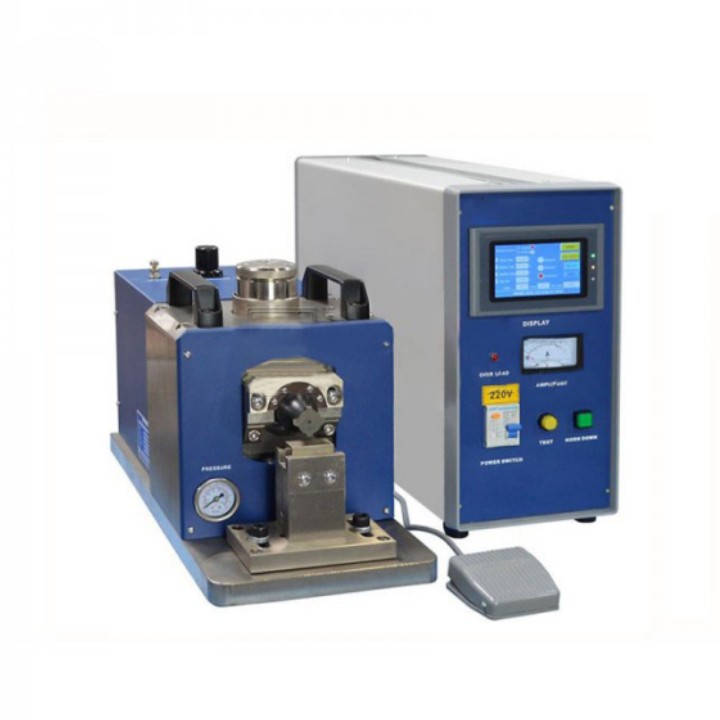

Compact HMI Operation Digital Ultrasonic Spot Welder Welding Machine
Product overview:
MSK-800W Ultrasonic Welding machine is a device that can be applied to laminate metallic foil for Li-ion battery, Ni-MH battery, Ni-Cr battery and various secondary battery welding processes.Equipment power selection of high quality electronic components, stable power, good welding consistency.The overall equipment design is compact, HMI parameter adjustment, easy to use.
Product features:
Adopt international advanced voltage regulator circuit, stable welding output power, good welding consistency;
Strong welding power, solid welding, low internal resistance, no virtual welding;
Can achieve up to 20 layers of copper foil laminated welding;(depending on the battery copper foil, thickness and pole lug thickness);
Welding mold using special abrasive steel, good wear resistance, long service life;
HMI operation, digital setting, easy to use;
Technical parameters:
|
Power supply |
Single-phase voltage AC110V or 220V adjustable |
|
Gas source |
0.5-0.8MPa compressed air |
|
Operating environment |
Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference |
|
Total power |
800VA |
|
Welding power |
0 to 800W adjustable |
|
Ultrasonic frequency |
40 KHZ plus or minus 10% |
|
Spot welding area of welding head base |
Standard welding mold area: 4*4MM standard with two sets of head welding base, (used for positive and negative electrode lug welding of lithium battery cell) |
|
Welding process 1 |
Used for welding pure aluminum belt 0.10mm+ pure aluminum foil 0.012-0.018mm within 20 layers |
|
Welding process 2 |
For welding pure nickel with 0.10mm+ copper foil 0.012-0.018mm within 20 layers of welding |
|
Equipment dimension |
Working part 510*220*290mm; Control box: 500*190*380mm |
|
Heavy weight |
About 60 KG |
