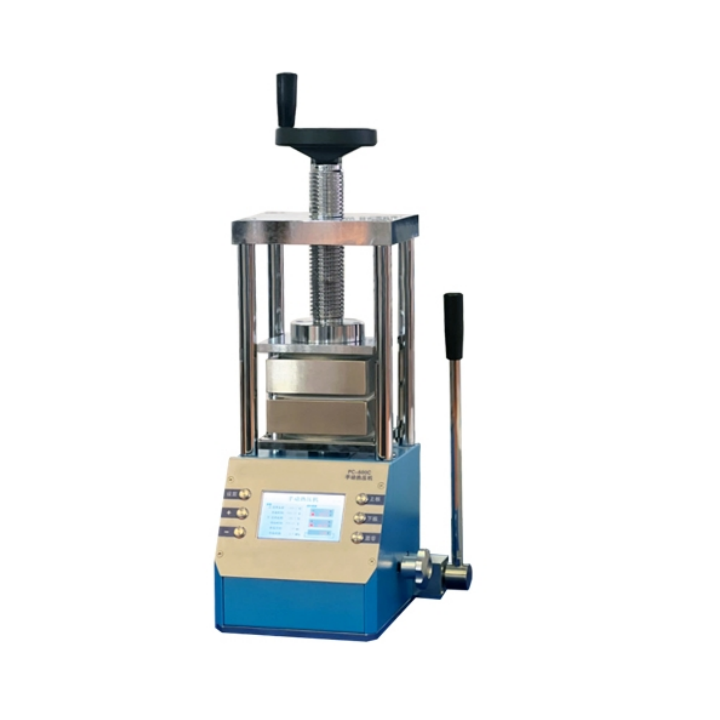

Larger Opening Size Integrated Small Tonnage Manual Hot Press Optional Water Cooler

Setting interface

Settings

Under the operation interface, press the setting button to enter the setting interface, press the setting button again, move the setting content, move to the mold diameter, press the setting button again to return to the operation interface. Note: When the time is set to "0", the setting time is infinite.

+

On the operation screen, press the + key to add the number.

-

On the operation screen, press _ to reduce the number of Settings.

Operating interface

Upper plate

Press the "Upper plate" button in the operation interface, and when the upper heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Upper plate" button again to stop heating the upper heating plate.  During the heating process, all setting buttons are invalid.

Lower plate

Press the "Lower plate" button in the operation interface, and after the lower heating plate starts to heat to the set temperature, the timer starts to record the time and starts to maintain the constant temperature. When the timer is over, stop the heat. Or press the "Lower plate" button again to stop heating the Lower heating plate.  During the heating process, all setting buttons are invalid.

Zero setting

If the sample is not in contact, but the device has shown pressure, it may be the weight of the heating plate, we can press the "zero" button to clear the pressure. To make our samples more accurate.

Mold operation diagram

Operation procedure

Technical parameter
