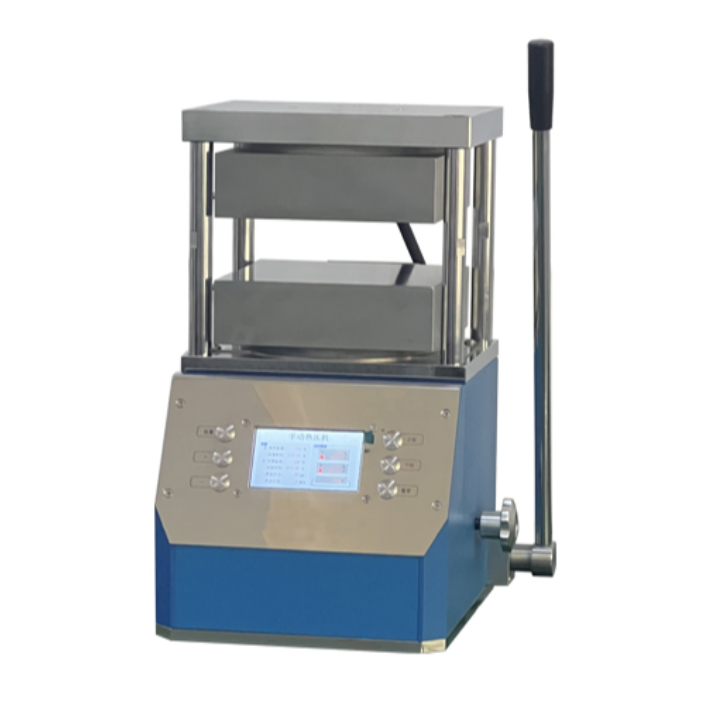

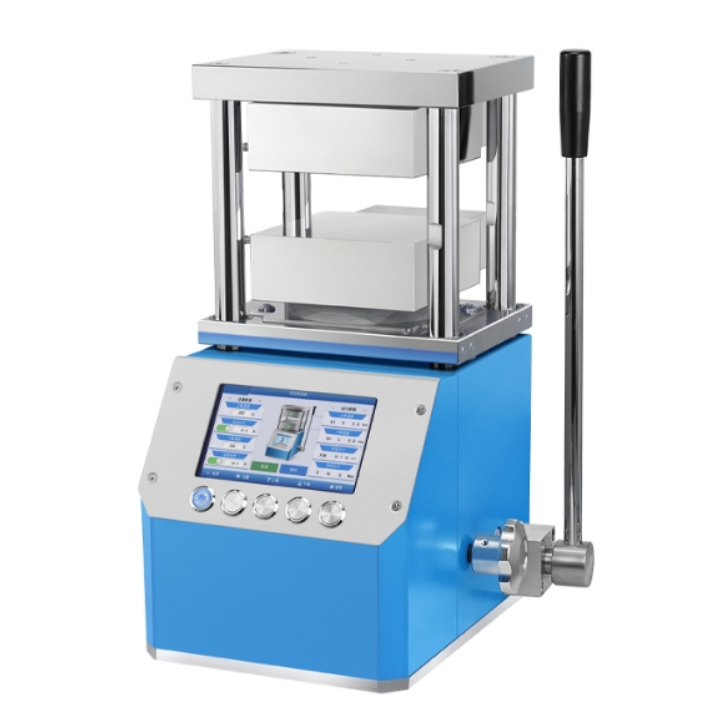

Integrated Manual 300C 500C Hydraulic Heat Hot Press with 120*120mm Double Heating Plate

Application field

We are a professional manufacturer of hydraulic powder presses and dies. Our hydraulic presses feature small size , high pressure and high pressure control accuracy , and have been widely applied in scientific research , teaching, testing and chemical engineering. In addition, the products can be used together with Fourier infrared spectrometer, fluorescence spectrophotometer and other testing instruments to substitute for imported products.

Set

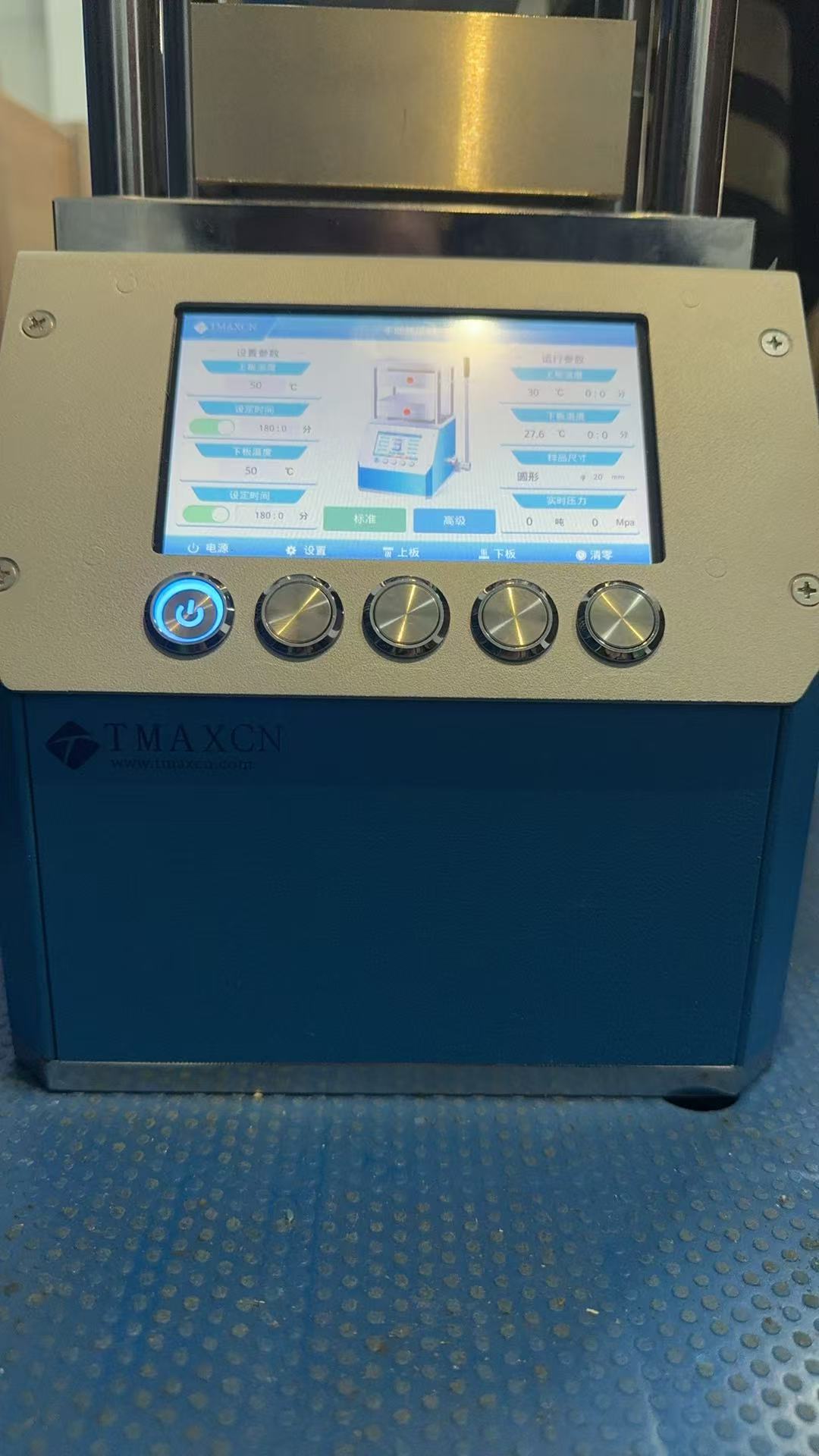

Set: In the operation interface, press the settings button to enter the settings interface, then press the settings button to move the settings content. After moving to the mold diameter, press the settings button again to return to the operation interface. Note: When the time is set to "0", it means that the time is set to infinity.

+: In the operation interface, press the "+" key to increase the setting number.

-: In the operation interface, press the "-" key to reduce the setting number.

Upper: Press the "Upper Plate" button on the operation interface, and the upper plate will start heating to the set temperature. After the automatic timing and constant temperature timer are completed,the heating will stop.Or press the "Upper Plate" button again to stop heating the upper plate. During the heating process, all setting buttons are invalid.

Lower: Press the "Lower Plate button on the operation interface, and the lower plate will start heating to the set temperature. After the automatic timing and constant temperature timer are completed,heating will stop.

Zero: If the sample is not in contact, but the device has already displayed pressure, it may be due to the weight of the heating plate. We can press the "reset" button to reset the pressure to zero.

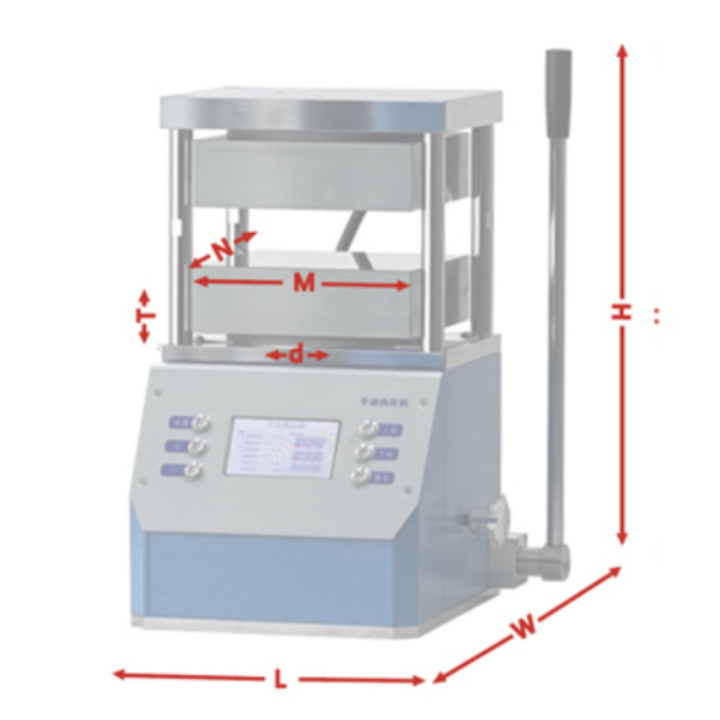

Technical parameters
