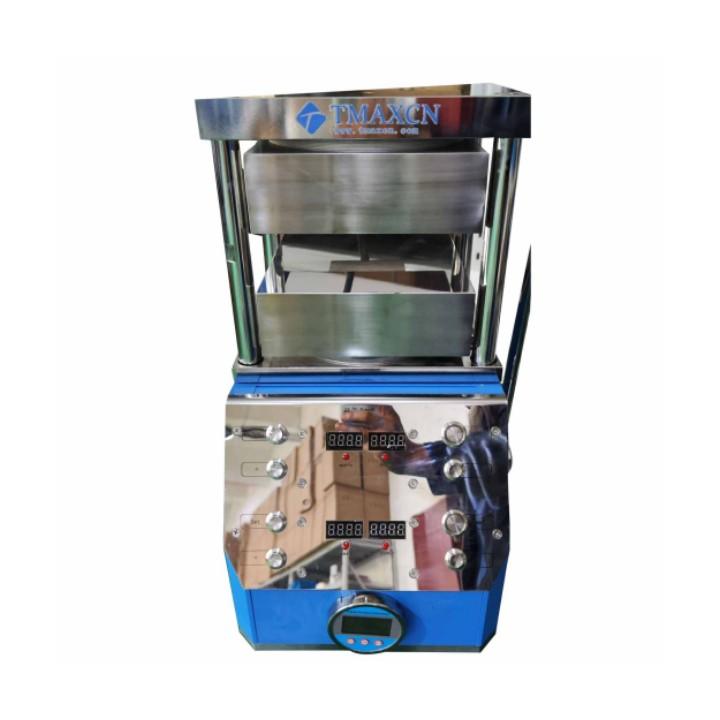

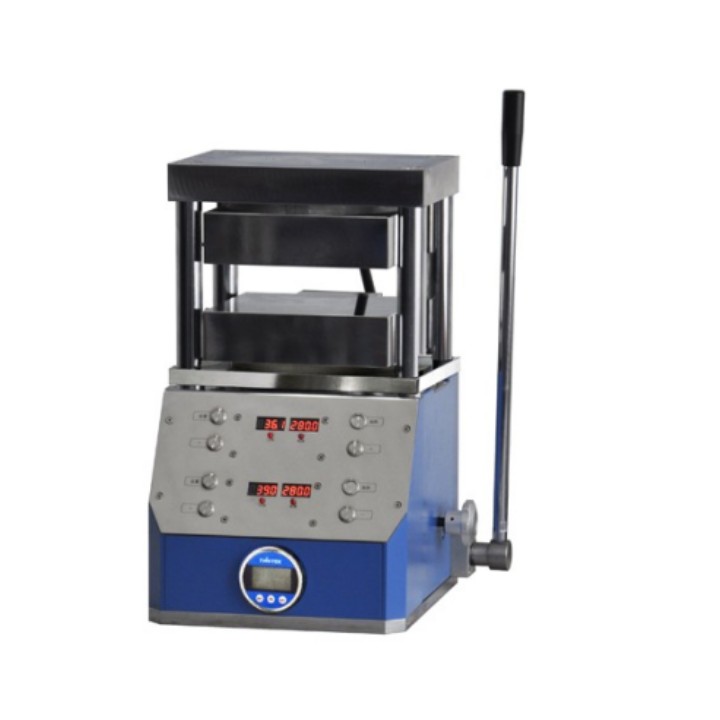

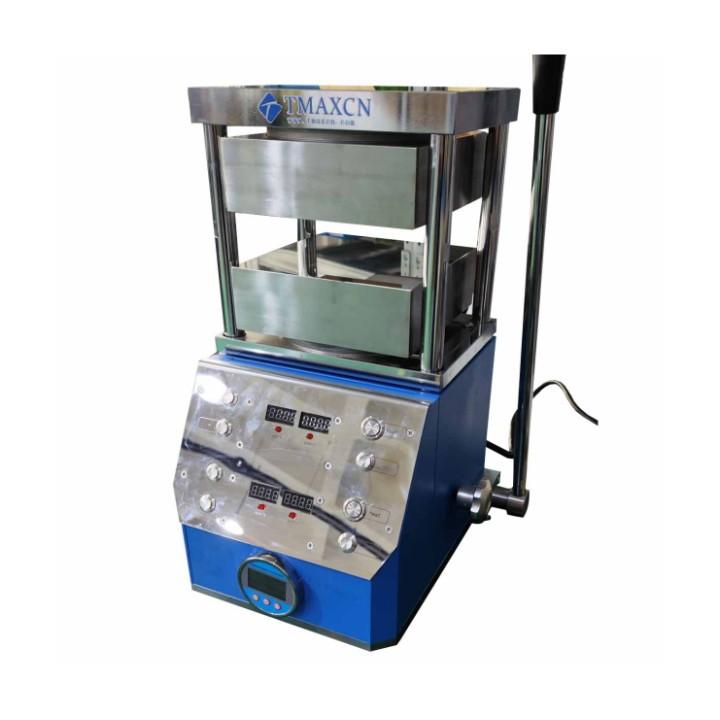

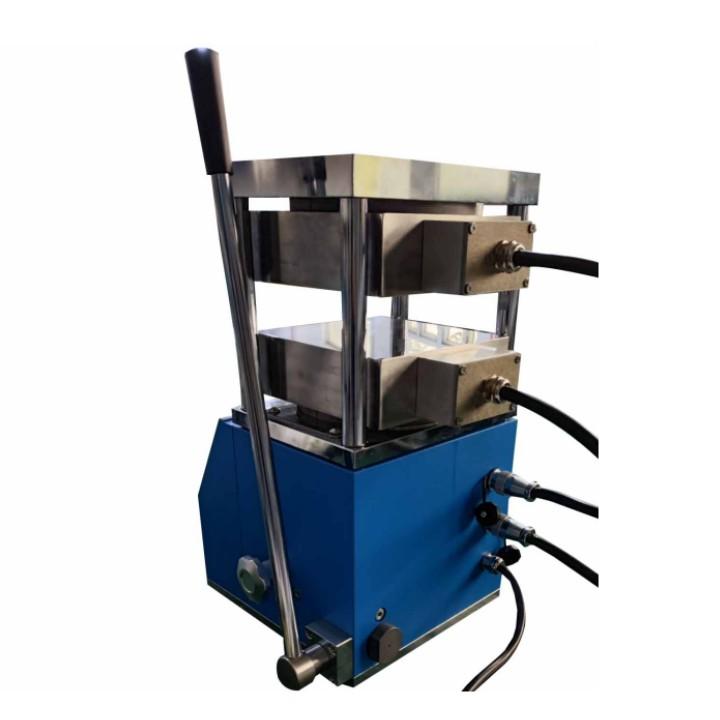

300°C 500°C Manual Integrated Hot Press with Heating Die
New RYJ-600E series manual hot press is our company combined with market demand, developed a new small tonnage, widened type, integrated, double plate hot press. This machine satisfied to stress more stringent control accuracy, and wide size sample hot-pressing experimental users, for powder, rubber, plastic film and so on some sample experiment of high temperature solid samples can also be used as a small rheometer, is now widely used in scientific research, teaching, persistence, medicine, catalysis, chemical and other industries, can replace similar imported products.
Main technical parameters
|
Product name |
RYJ-600E1 |
RYJ-600E2 |
RYJ-600EG1 |
RYJ-600EG2 |
|
Pressure range |
0-10T(0-30Mpa) |
|||
|
Pressure conversion |
1t=3Mpa/1Mpa=0.33t |
|||
|
Piston diameter |
Dia65mm chrome plating cylinder |
|||
|
Type of pressure gauge |
Digital display, range 0.001-40.000Mpa, display precision 0.001mpa |
|||
|
Pressure mode |
Manual pressure |
|||
|
Temperature controller type |
XNNETS PLC programmed temperature controller(double temperature controller) |
|||
|
Temperature control range |
RT-600.0℃/0.1℃ |
|||
|
Type of hot pressing die |
Double die heating up and down (polished surface) |
|||
|
Heating die size |
180*180mm |
200*200mm |
180*180mm |
200*200mm |
|
Temperature of hot pressing die |
RT-300℃ |
RT-500℃ |
||
|
Heating die cooling method |
Cooling by natural or water cooler |
Cooling by natural or water cooler |
||
|
Equipment insulation Mode |
Imported heat shield |
Imported heat insulation board + stainless steel water cooling cycle heat insulation board |
||
|
Power |
220V/1800W |
220V/2500W |
||
|
Overall structure |
One-piece construction |
|||
|
Size of the machine |
280*320*520mm(The weight of the water cooler is not included) |
|||
|
Weight |
About 80-95kg |
|||
|
Model specification |
Water cooling machine (optional) |
|||
