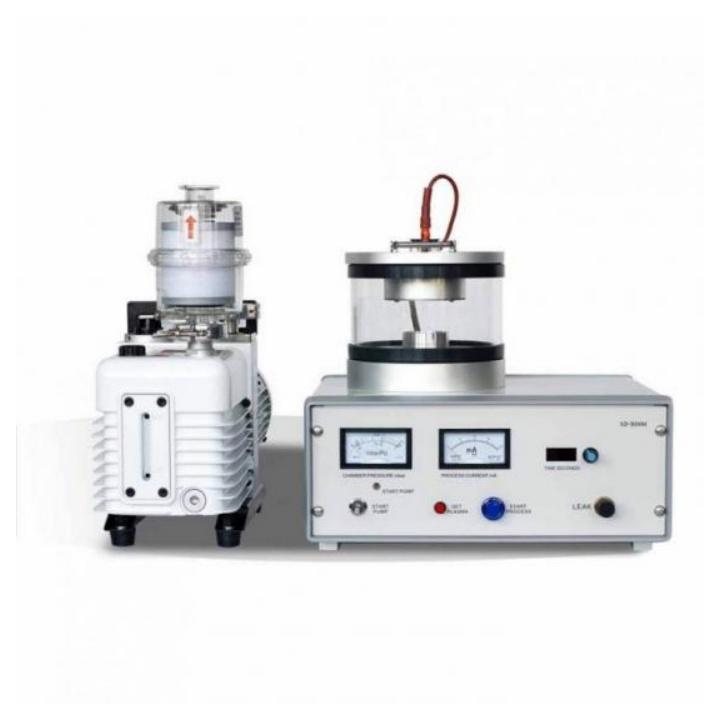

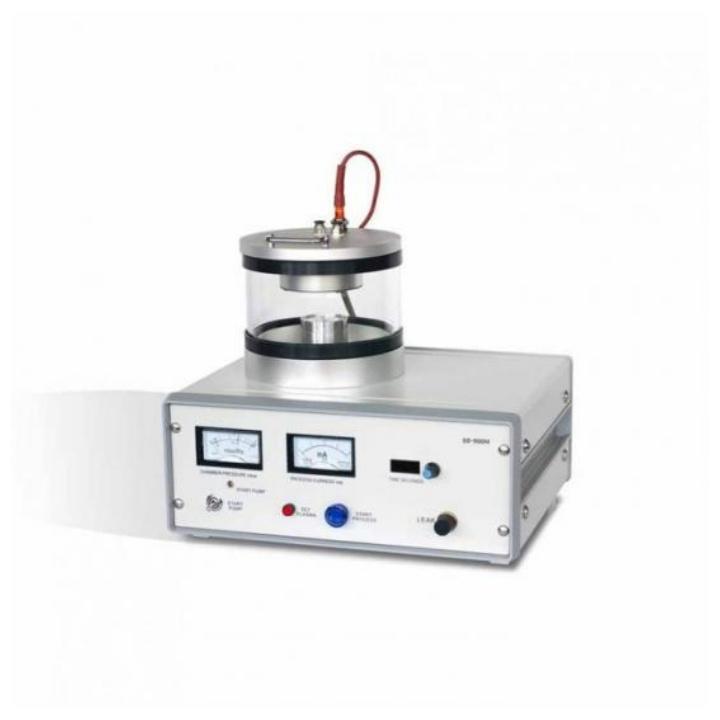

Laboratory Vacuum Magnetron Ion Sputtering Coater Used to Coat Non-conductive or Heat-sensitive SEM Samples






Introduction

Magnetron Ion Sputtering Coater (SD900M Model) is ideal and designed for lab SEM sample preparation. It is widely used to coat non-conductive or heat-sensitive SEM samples with Au for better imaging. It is also excellent for surface treatment and avoids damage to the substrate sample.

Coating Result Sample Picture under SEM (by SD-900M Model) EPTFE (Extended Poly Tetra Fluoro Ethylene)




Low vacuum, can be achieved quickly when using proper vacuum pump within 5 minutes. It generates much less heat and avoids plasma damage to the substrate sample. It is user friendly and easy to operate.

Vacuum pump is included. Chiller is optional.


Parameter

Vacuum pump set

(Oil required) rotary vacuum pump

Rotary pumping speed

50 Hz : 8 /h (2.2 L/s)/ 60 Hz : 9.6/h (2.6 L/s)

 Vacuum limit

Pa

Max sputtering current

100mA

Working pressure

20Pa - 8 Pa

Vacuuming time

<5 Min(Pa)

Vacuum measure

Measuring range from atmosphere to 2*10-2mbar

Chamber size

Φ150*120mm (height) scratch resistant quartz glass

Magnetron target source

Target size φ50*0.1mm(Au)/target source: Au,Ag,Pt

Operation method

Instruction Manual

Weight/size

45kg/360mm length x 300mm wide 380mm high

Power supply

AC 110V 60Hz or AC 220V 50Hz

Power consumption

<1500W

Cooling method

Water cooling(optional)

Warranty

One year limited warranty with lifetime product support








PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
