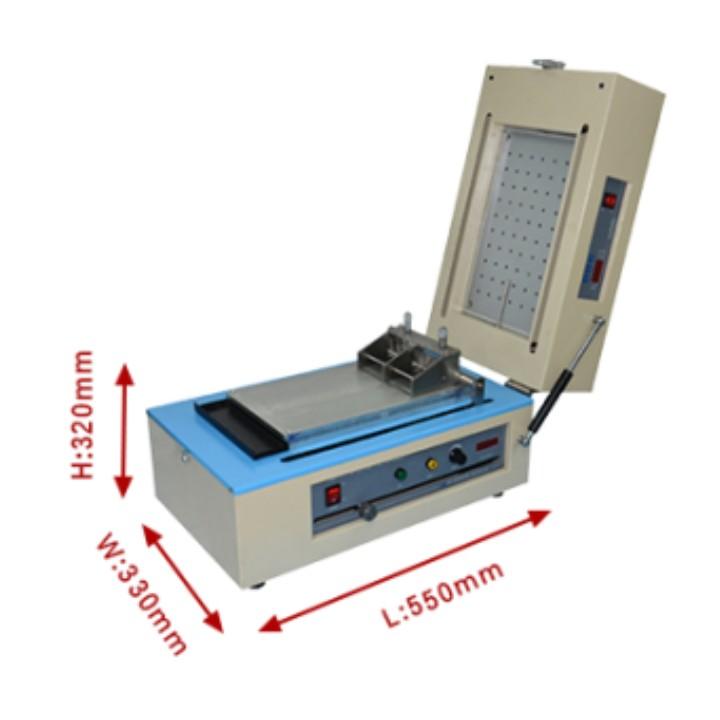

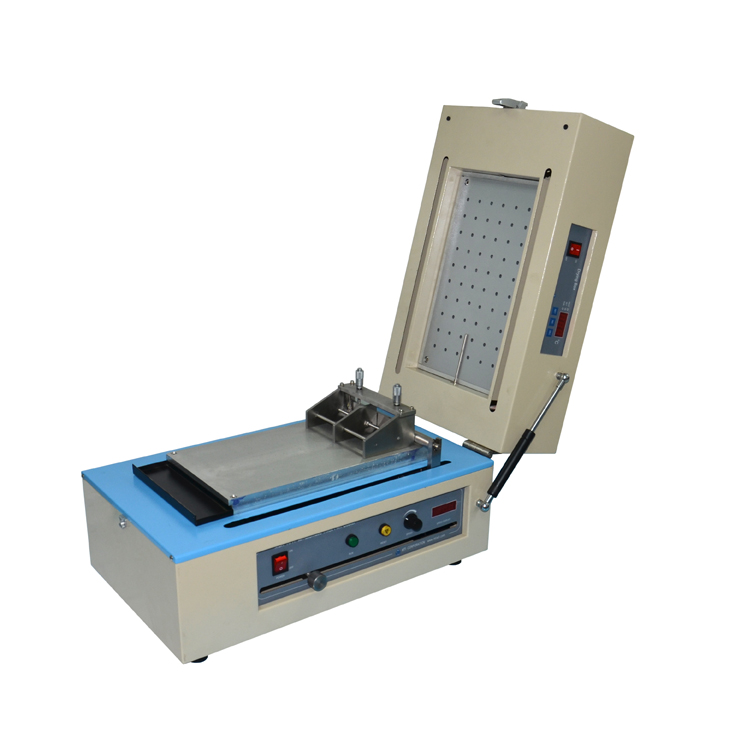

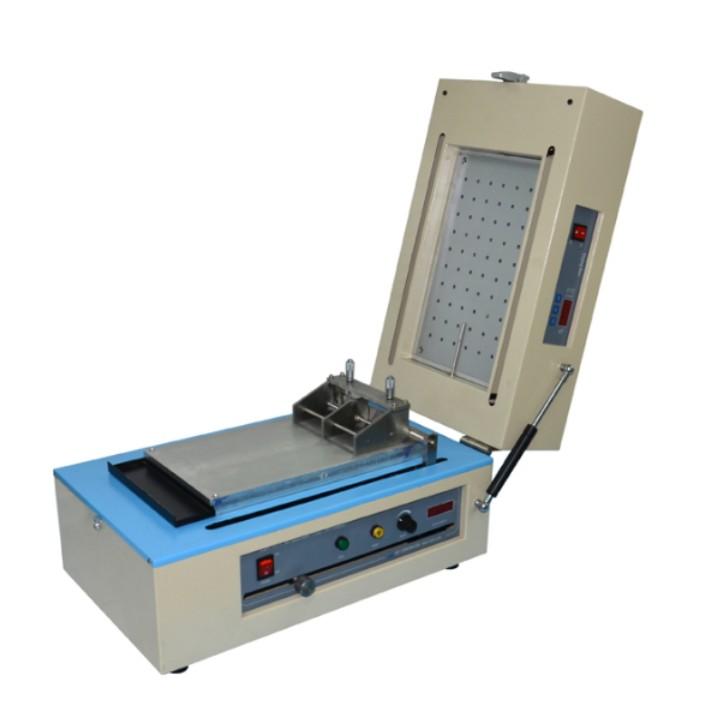

Lab Small Flow Drying and Coating Machine with Automatic Drying Function
Product Name: Small Flow Automatic Drying and Coating Machine
MSK-AFA-III small cast automatic drying and coating machine is widely used in various high temperature coating research, such as ceramic type film, crystal type film, battery material film, special nano film, and can adapt to the future development of film forming technology under high temperature conditions. MSK-AFA-III small cast automatic drying and coating machine can achieve smooth and uniform coating effect by pushing the precision film maker at a uniform speed. The advance speed of the film maker can be controlled according to individual needs. The vacuum adsorption method to fix the substrate makes the substrate wrinkle-free during the coating process, thus making the coating smoother. After coating, the top cover can heat and dry the film with a temperature control accuracy of ±1°C. It is especially suitable for the preparation of solid electrolyte and lithium battery pole piece.
Features:
1. With automatic drying function.
2. Using vacuum adsorption to fix the substrate.
3. Uniform coating.
4. It has passed CE certification.
Technical parameter:
Product Name
MSK-AFA-III small cast automatic drying and coating machine
Model Number
MSK-AFA-III
Mounting Conditions
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.
1. Water: without
2. Electricity: AC220V 50Hz, must be well grounded
3. Gas: without
4. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more
5. Ventilation device: without
Main Parameters
1. Power supply: AC 220V, 50HZ
2. Total power: 1100W
3. Coating speed: 10mm/s-100mm/s adjustable
4. Coating stroke: 10mm-250mm adjustable
5. Vacuum aluminum plate: 360mm×200mm (length×width)
6. Vacuumable size：300×150㎜（L×W）
7. Maximum heating temperature setting: 120℃
8. Accuracy of temperature control: ±2℃

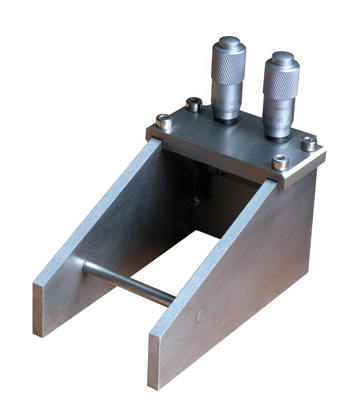

9. Film maker: 150mm micron level adjustable (other sizes are available), adjustment range 0.01mm-5mm
10. Film thickness accuracy: ± 0.01mm
Product Specification

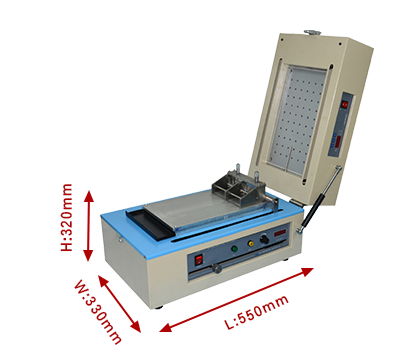

Overall dimensions.
Closed state 600mm (L) × 400mm (W) × 380mm (H)
Open state 870mm (L) × 400mm (W) × 750mm (H)
Weight: 50kg
Standard Accessories：
|
No. |
Name |
Amount |
Picture |
|
1 |
Pusher bar |
1 |
|
|
2 |
Aggregate box |
1 |
|
|

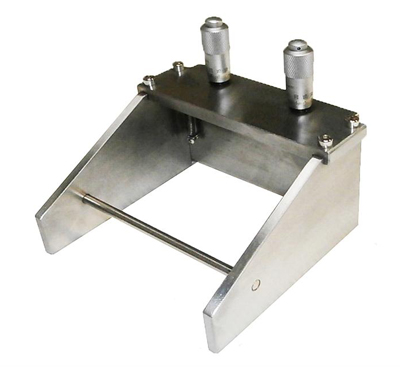

3 |
150mm micrometer modifiable membranes |
1 |
|
|

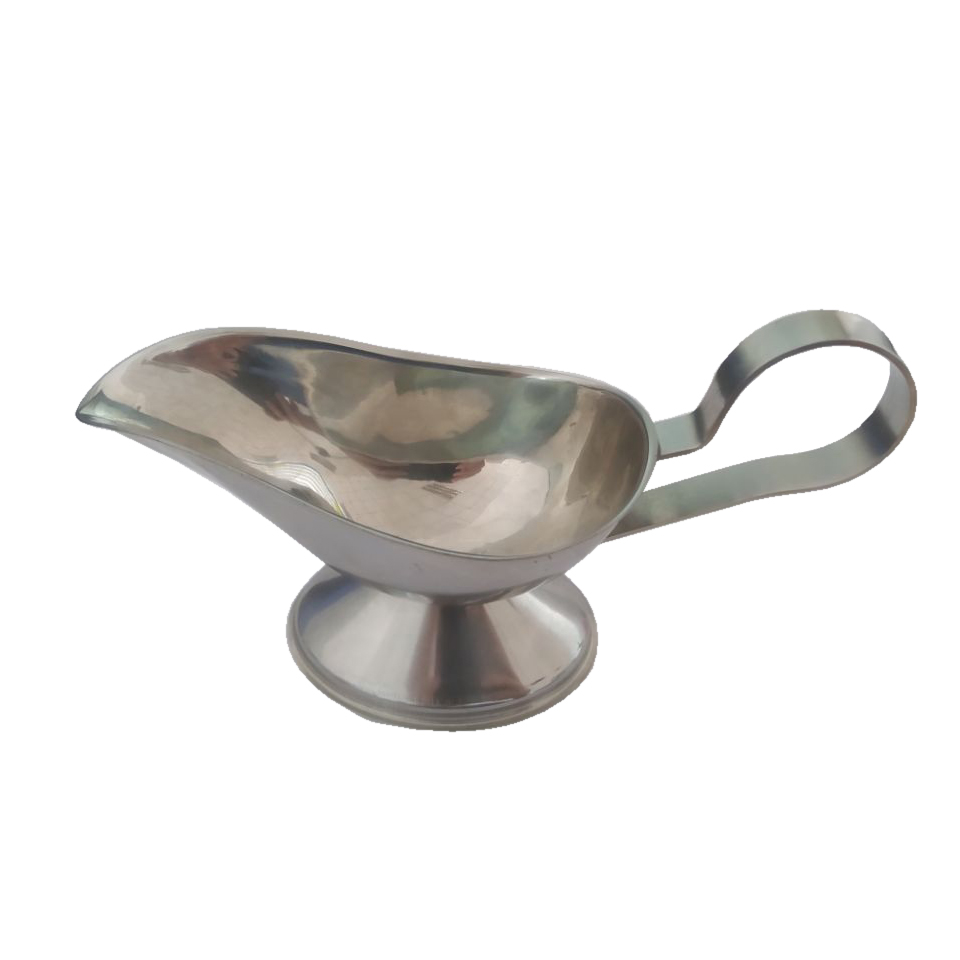

4 |
Ingredient cup |
1 |
|
Optional Accessories：
|
No. |
Name |
Function Category |
Picture |
|

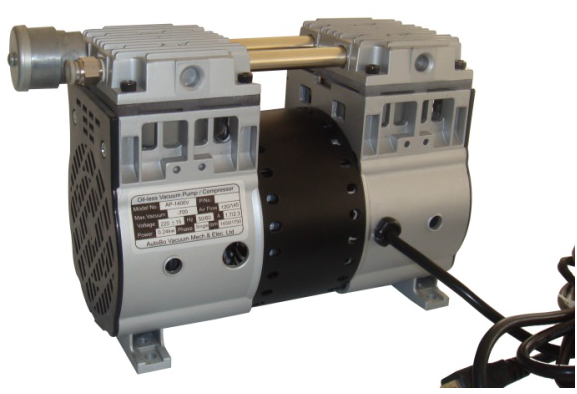

1 |
Vacuum pump (AP-1400V oil-free vacuum pump) |
（avaliable） |
|
|

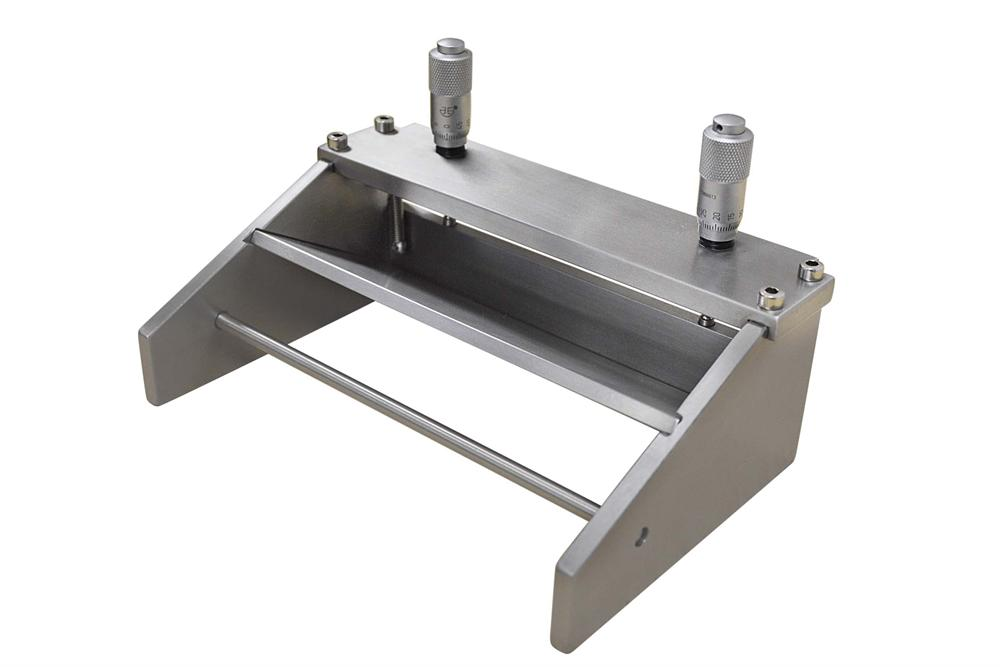

2 |
Micrometer modifiable membrane-50mm |
（avaliable） |
|
|
3 |
Micrometer modifiable membrane-100mm |
（avaliable） |
|
|
4 |
Vacuum Mixer |
（avaliable） |
|
|

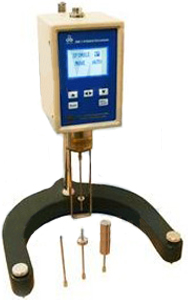

5 |
Viscometer |
（avaliable） |
|
|

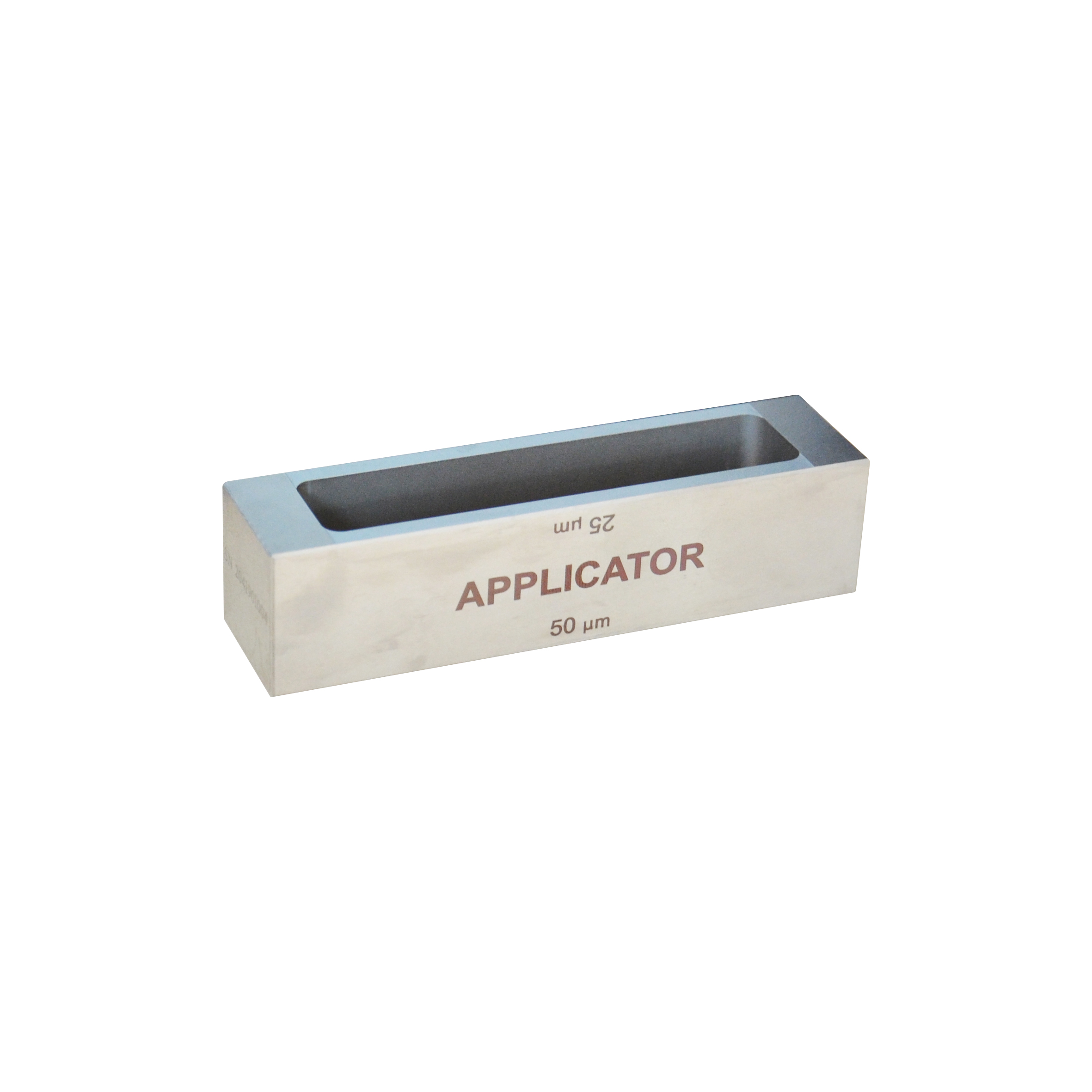

6 |
Four-sided precision film maker (4 types of film thickness can be prepared) |
（avaliable） |
|
|
7 |
Frame Preparer |
（avaliable） |
|
|

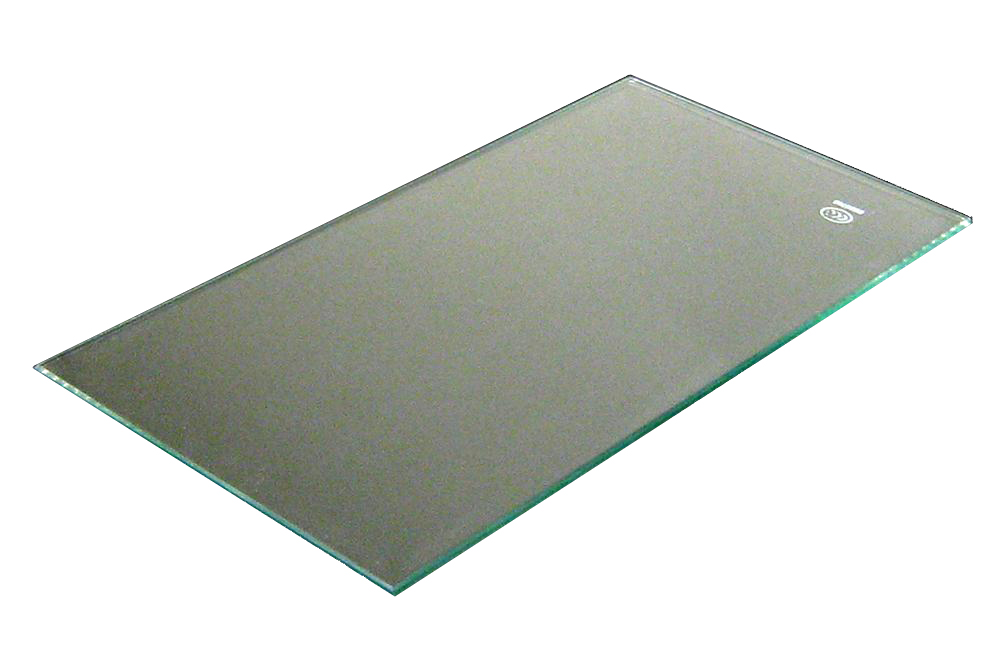

8 |
Glass plate |
（avaliable） |
|
