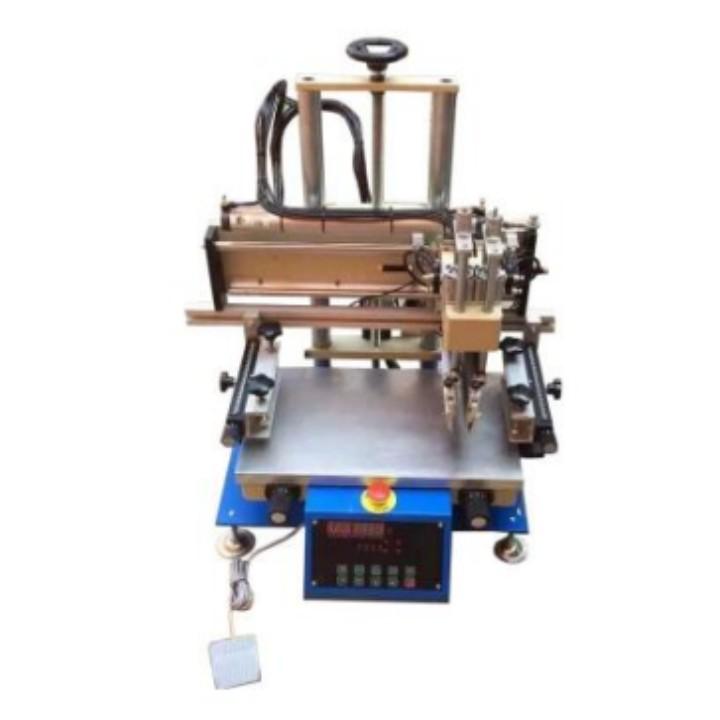

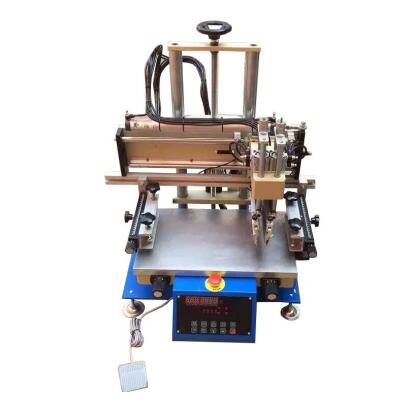

Lab Small Semiautomatic Screen Printer
Product Name: Lab Small Semiautomatic Screen Printer
SPC-3050 is a small semi-automatic screen printer with microcomputer type microcontroller control, which can perform screen printing in two modes: manual or semi-automatic. The working table with suction holes can adsorb film substrate, the maximum printing area is 280mm×350mm, and the squeegee is controlled by constant pressure to ensure stable pressure in printing and guarantee the printing quality. The equipment can be widely used in various types of small flat material printing, such as flexible electrode preparation, OLED, fuel cells and solar cells in the coating printing process.
Features:
1. Two working modes: manual (foot switch) and semi-automatic (panel control)
2. Microcomputer type single-chip control system, printing quantity can be counted
3. Pneumatic drive, constant pressure squeegee device, to ensure stable pressure in printing, high printing accuracy
4. sample table with suction holes, can adsorb each film substrate
5. Left and right stroke, front and back of the screen frame, front and back of the table, squeegee / ink return knife angle and other parameters can be arbitrarily adjusted
Technical parameters:
Product Name |
SPC-3050 small semi-automatic screen printer |
Model Number |
SPC-3050 |
Main Parameters |
1. Working power: Voltage: AC220V or 110V 50/60Hz Power: 40W 2. Maximum mesh frame size: 400 × 600mm 3. Worktable size: 300 * 500mm 4. Maximum printing area: 250 × 350mm 5. The maximum thickness of the sample can be put: 80mm 6. Air source pressure: 0.5-0.6MPa 7. Printing thickness repeatability: ±0.08mm 8. Printing speed: 800-1200 pcs/h |
Product Specification |
Product size: 750×650×850mm Product weight: 90kg |
Standard Accessories |
1. 2 sets of scrapers 2. 1 set of tools |
