Product Name

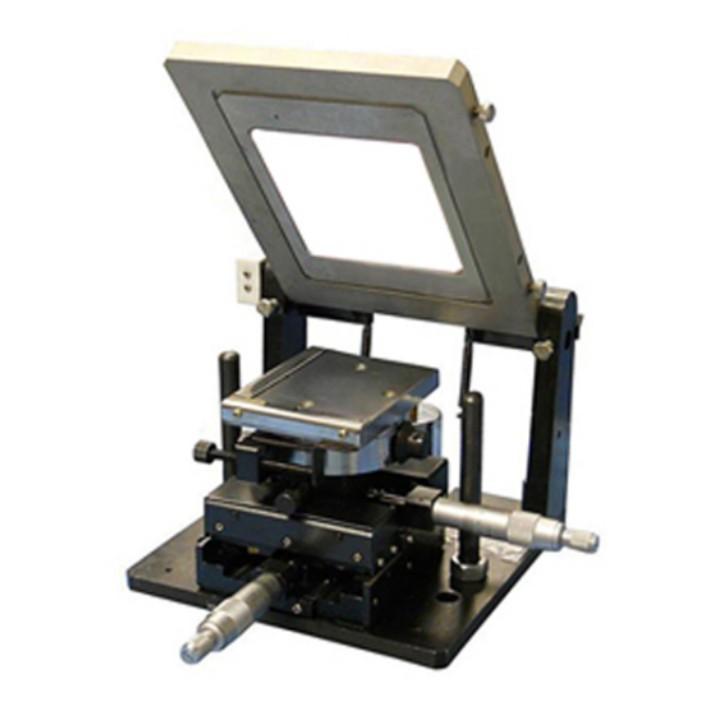

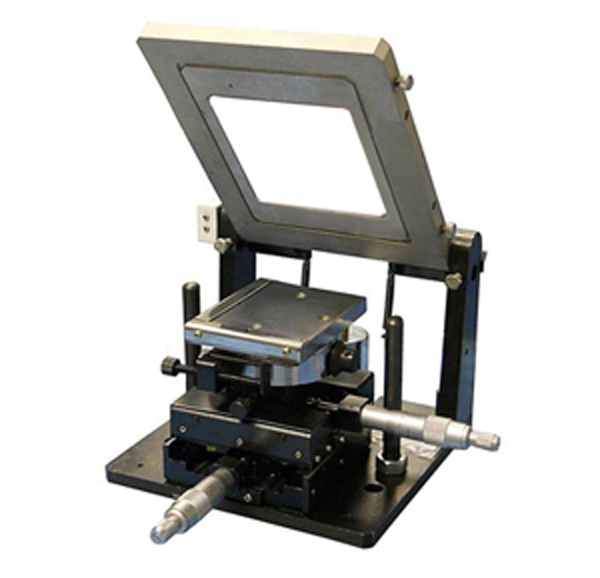

SPC-1 micro screen printing and coating machine

Model Number

SPC-1

Mounting Conditions

1. This equipment is required to be used at an altitude of less than 1000m, at a temperature of 25℃±15℃ and a humidity of 55%Rh±10%Rh.

2. Water: the equipment is equipped with self-circulating cooling water machine (filled with pure water or deionized water)

3. Electricity: AC380V 50Hz (63A air switch), must have good grounding

4. Gas: the equipment chamber needs to be filled with argon gas (purity of 99.99% or more), need to provide their own argon gas cylinder (with Ø6mm double ferrule connector)

5. Working station: size 1500mm × 600mm × 700mm, load capacity of 200kg or more

6. Ventilation device: required

Main Parameters

1. Screen printing area: minimum 16mm×12mm, maximum 70mm×50mm

2. Position adjustment and accuracy: X, Y, Z three directions adjustable

              X direction 20mm, ±0.01mm

              Y direction 20mm, ±0.01mm

              Z direction 3mm, ±0.05mm

3. Screen angle adjustment: ± 10 ° adjustable

4. Substrate support: vacuum backing

5. Screen frame: 180mm×130mm on the outer side of the upper frame, 156mm×106mm on the inner side

Bottom frame outside 125mm×108mm, inside 105mm×88mm

Screen frame outside 180mm×130mm, inside 126mm×109mm

Product Specification

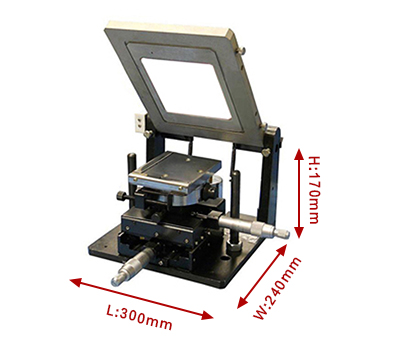

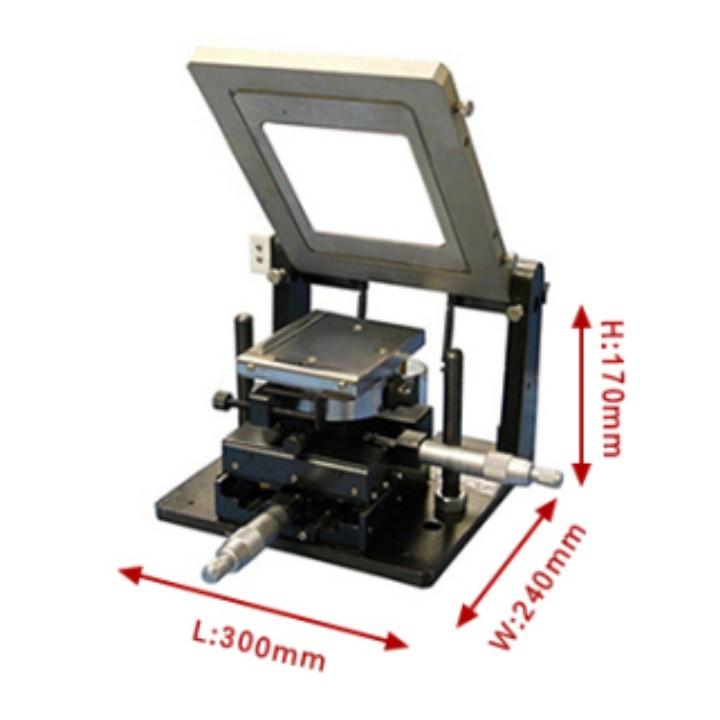

Size: 300mm×240mm×170mm when the upper frame is closed, 300mm×240mm×330mm when the upper frame is opened

Weight: 11kg
