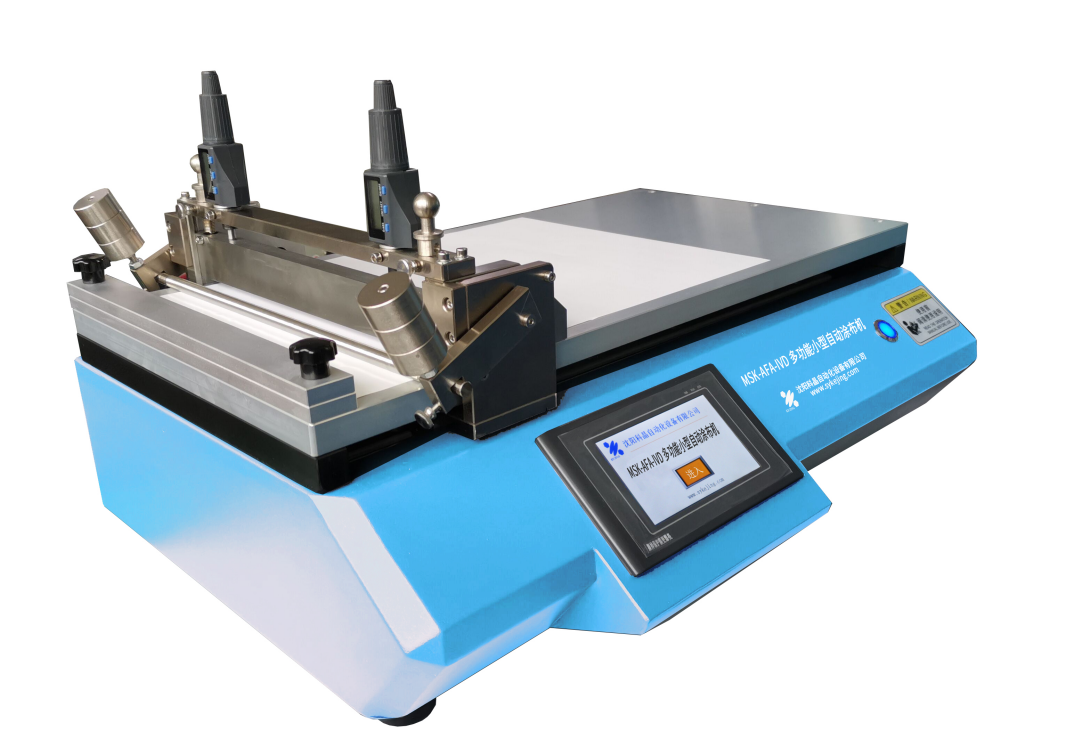

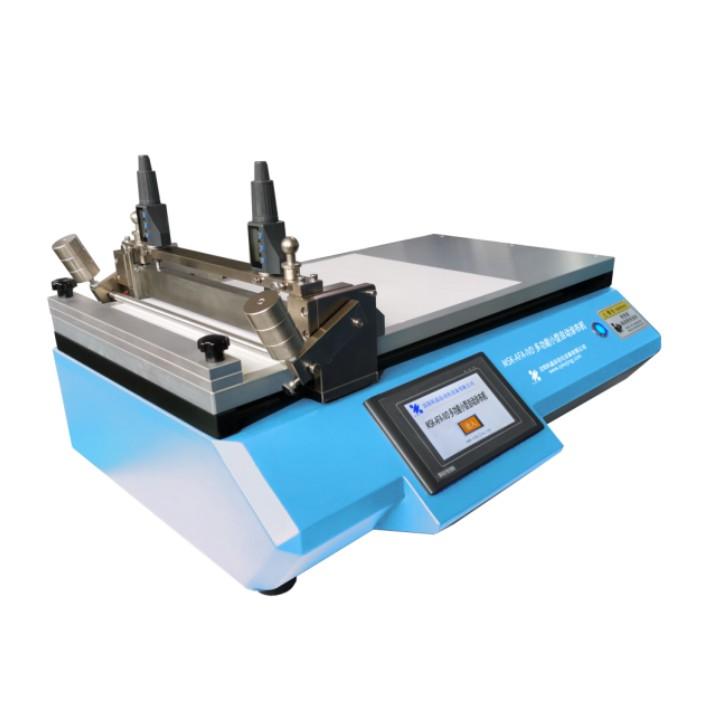

Lab Multifunctional Small Automatic Coater
Product Name: Lab Multifunctional Small Automatic Coater
MSK-AFA-IVD multifunctional small automatic coater all use high quality parts, and the price is cheap, get many multinational companies R & D institutions, many well-known universities at home and abroad. The MSK-AFA-IVD multi-functional small automatic coater is designed to ensure the coating effect by controlling the speed and stable pressure to ensure the uniformity and smoothness of the coating. and flawless test samples. It is easy for the lab technician to coat different substrates accurately, which reduces and eliminates the errors caused by different coating speed and pressure. The coating head is made of stainless steel U-shaped scraper, imitating a large coating head to ensure that the quality of the experimental product matches that of the production coating, and the coating head can be quickly opened at 90 degrees for cleaning the scraper after each experiment.
Features:
1. Adjust the coating thickness by changing the coating stick.
2. Adjust the coating speed through the knob, the speed can be displayed through the display.
3. Imported parts are used.
4. Uniform coating.
Technical parameters：
Product Name
MSK-AFA-IVD multifunctional small automatic coater
Model Number
MSK-AFA-IVD
Mounting Conditions
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity.
1. Water: without
2. Electricity: AC220V 50Hz, must be well grounded
3. Gas: without
4. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more
5. Ventilation device: without
Main Parameters
1. Power supply: voltage 110~220V 50/60HZ
2. Total power ：48W (standby) 2000W (heating)
3. Coating method: alternating scraper / wire rod
4. Speed: digital display settings 10 meters / min
5. Length: digital display setting 1-450MM
6. Leveling device: with a weight counterweight according to the different thickness of the material, automatic leveling material before coating
7. Accuracy error: ±5%, (different glue viscosity error, subject to the actual test)
8. Width: 300 * 450MM (using vacuum way to fix the sample)
9. Coating thickness: 0.005-5MM (digital micrometer control film maker thickness, wet film thickness of the thinnest 5 microns)
10. Coating wire rod: length: 400MM
11. Scraper material: alloy stainless steel material (professional scraper R)
12. Heating temperature: room temperature -200 ℃
Product Specification
Overall dimensions 680*480*380 (L*W*H); weight: 38kg
Optional Accessories：
|
No. |
Name |
Function Category |
Picture |
|
1 |
Customizable thickness-adjustable applicator with minimum thickness of 5μm and 1μm adjustment accuracy. |
（avaliable） |
|
|
2 |
The thicknesses of the films are 5 μm, 10 μm, 15 μm, 20 μm, 25 μm, 30 μm, 40 μm, 50 μm, 60 μm, 80 μm, 100 μm, 120 μm, 150 μm, 200 μm, and 200 μm. |
（avaliable） |
|
