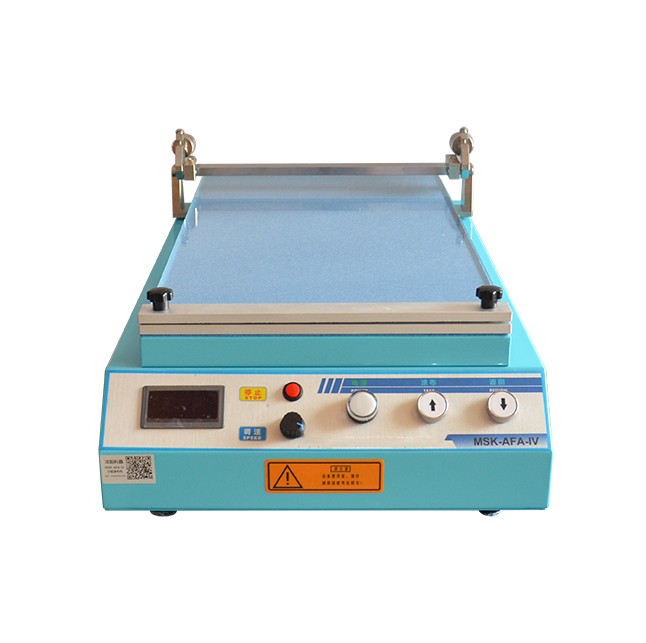

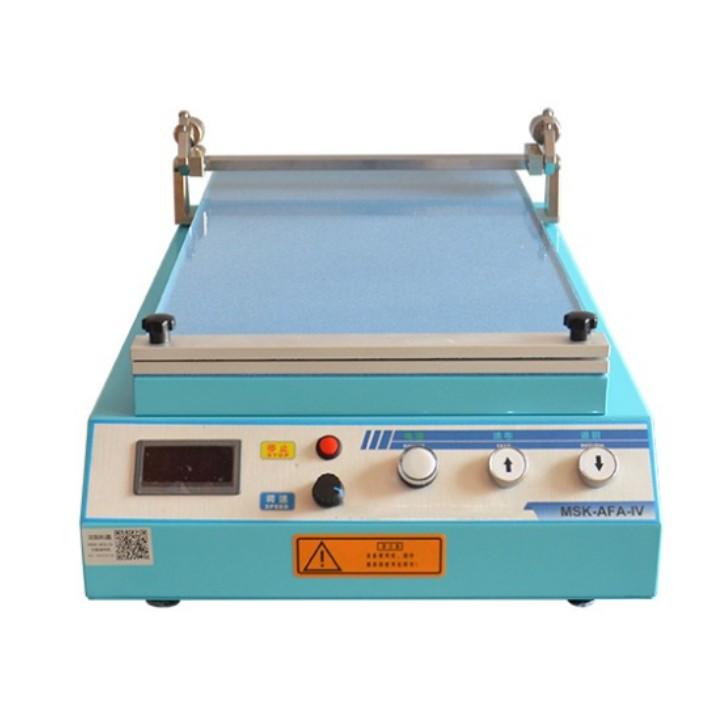

Lab Mini Coater Adopts The Organic Combination of Electrical Control and Machinery
Product Name:Lab Mini Coater
MSK-AFA-IV mini coater adopts the organic combination of electrical control and machinery, which can save a lot of raw materials, improve the process technology, facilitate the coating of good quality film on different substrates, reduce and eliminate the error of film thickness on the surface of the coated sample caused by different human factors such as coating speed and pressure, etc. Different specifications of coating sticks are needed for coating films of different thicknesses. The speed of coating can be adjusted by a speed control knob. The MSK-AFA-IV mini coater is equipped with imported control parts, which are strong and durable. It is mainly used for glue, paper and film production tests, and can also be used in other related coating and painting industries. The equipment is compact and suitable for laboratory coating experiments on small area substrates.
Features:
1. Adjust the coating thickness by changing the coating stick.
2. Adjust the coating speed by knob, and the speed can be displayed by the display.
3. Adopt imported parts.
4. Uniform coating.
Technical parameters：
|
Product Name |
MSK-AFA-IV mini coater |
|
Model Number |
MSK-AFA-IV |
|
Mounting Conditions |
This equipment is required to be used under 1000m above sea level, 25℃±15℃ and 55%Rh±10%Rh humidity. 1. Water: without 2. Electricity: AC220V 50Hz, must be well grounded 3. Gas: without 4. Working station: size 800mm × 600mm × 700mm, load capacity of 200kg or more 5. Ventilation device: without |
|
Main Parameters |
1. Power supply: 220V 50Hz 2. Total power : 48W 3. Coating speed: 0-1200mm/min adjustable 4. Coating precision: 1μm 5. Coating area: 300mm×420mm 6. Coating stick specification: Ø12mm×400mm 7. Coating film thickness: 12μm-200μm (according to the coating stick used to decide) |
|
Product Specification |

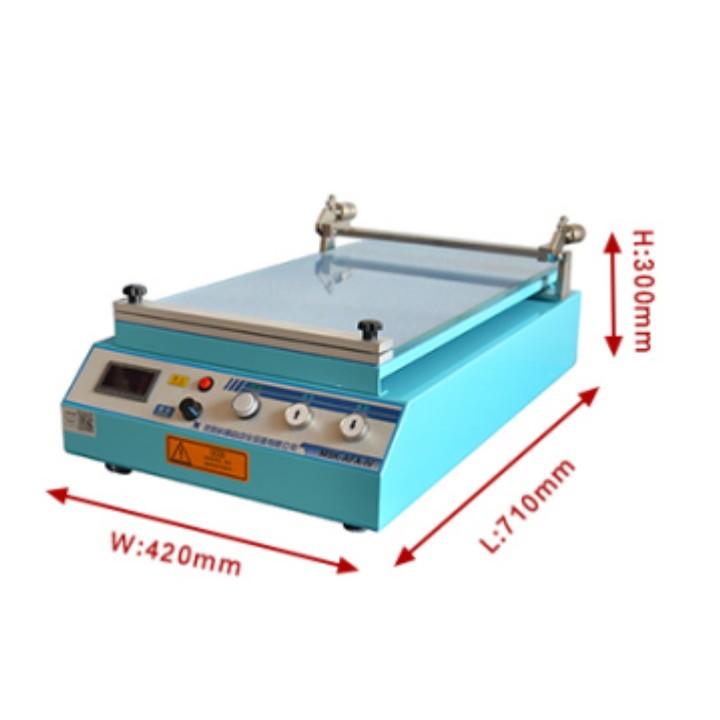

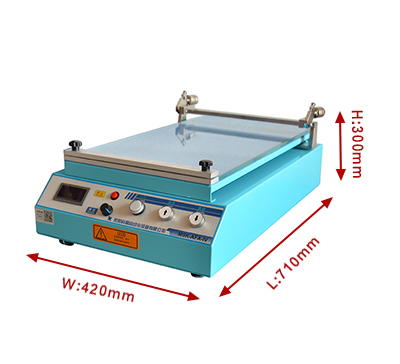

Overall dimensions 710mm (L) × 420mm (W) × 300mm (H) m.
Weight: 20kg |
Optional Accessories：
|
No. |
Name |
Function Category |
Picture |
|
1 |
Customizable thickness-adjustable applicator with minimum thickness of 5μm and 1μm adjustment accuracy. |
（avaliable） |
|
|
2 |
The film thicknesses are 5 μm, 10 μm, 15 μm, 20 μm, 25 μm, 30 μm, 40 μm, 50 μm, 60 μm, 80 μm, 100 μm, 120 μm, 150 μm, and 200 μm. |
（avaliable） |
|
|
3 |
Frame Preparer |
（avaliable） |
|
