Lab High Energy Planetary Nano Ball Mill with The Rotation Speed of 1630rpm

A. Product Introduction

High-energy planetary ball mill mainly adopts the principle of planetary ball mill, through the high speed centrifugal force to promote the collision, shear, dispersion between the medium and the material in the tank, the tank wall and the ball speed is different, the friction force and impact force between the material and the medium are different, the high energy is different, the rotation speed of 1630 turns to produce high energy (equivalent to 60 times the gravity acceleration), Reliable and reproducible nano-scale grinding results can be obtained in a very short time. This equipment is ideal for high efficiency sample mixing and homogenization or mechanical activation and alloying. It is suitable for geological and mineral, mechanical alloying, chemistry, nanotechnology, metallurgy, materials research, ceramics, biology, analytical sample preparation, etc.

B. How it works

PBM series planetary ball mill is equipped with two ball grinding tanks on the same planetary mechanism disk, when the planetary disk rotates, the ball grinding tank rotates around the axis of the disk and rotates around its own axis at the same time, making planetary motion. The grinding balls in the tank collide with each other in high speed motion, grinding and mixing the sample. The product can grind and mix products with different particle sizes and materials in dry and wet ways. The minimum particle size of the grinding product can reach 0.1 micron (1.0×10mm-4).

C. Technical parameters

D. Product Features

a. Equipment through professional appearance design, the shell adopts high precision laser cutting, CNC bending molding, generous and delicate, high-end and stable;

b. The e planetary disk and structural components are processed by numerical control processing technology and nitriding metal heat treatment technology to ensure wear resistance of rotating shaft parts and prevent shaft breakage. The transmission gear is made of high-temperature and wear-resistant non-metal and metal combination precision gear, and the gear box is lubricating with liquid oil, which is safe and reliable, low noise, no pollution and small loss.

c. Equipped with induction lamp device: THE working lamp is controlled by infrared human sensor, the light is on when people come, and the light is off when people walk, which is convenient and energy-saving.

d. Ball grinding tank adopts planetary movement, high grinding efficiency, fine particle size;

e. The inverter has undervoltage and overcurrent protection, which can protect electrical components such as motors;

f. The machine cover adopts the hydraulic pole cover type, through the electromagnetic safety lock and latch type limit switch to ensure the normal operation of the equipment and the personal safety of the operator;

g. The window glass adopts double vacuum toughened glass, which not only insulates the sound and reduces the noise, but also ensures the personal safety. The ball grinding chamber is equipped with sound-absorbing cotton.

h. The electrical control part through the design of independent control box built-in equipment, 5 sets of exhaust fans forced to exhaust heat dissipation, forming an in and out of the internal circulation heat dissipation system;

i. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss;

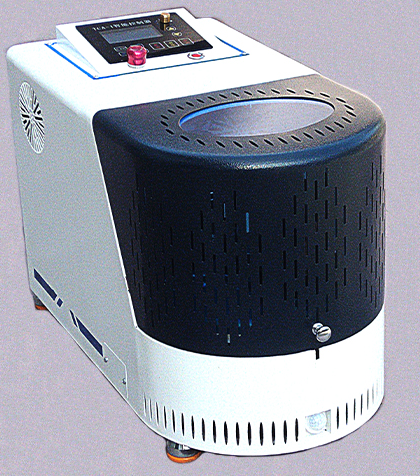

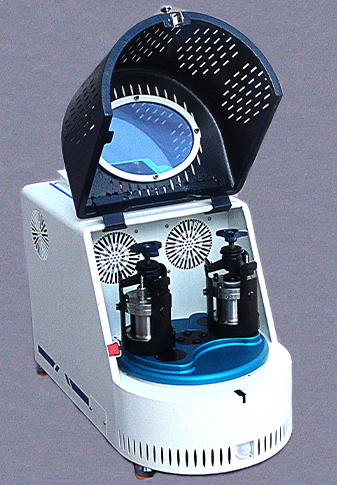

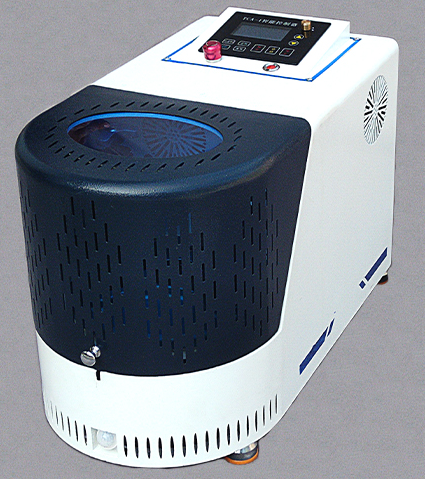

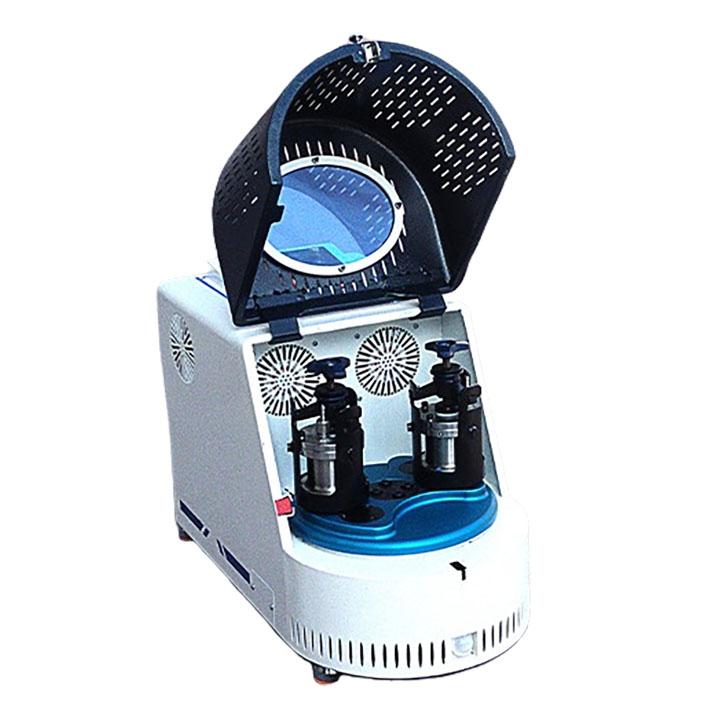

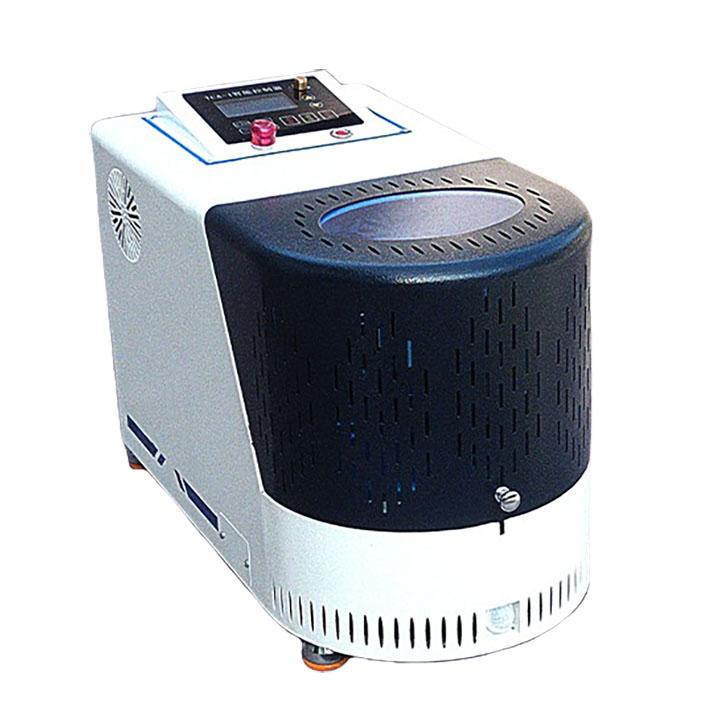

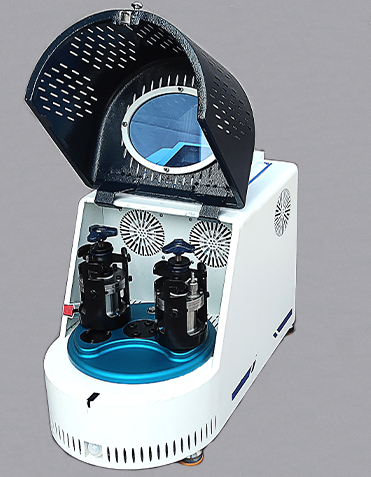

E. High-end planetary ball mill products related pictures

(Photo with reference)
