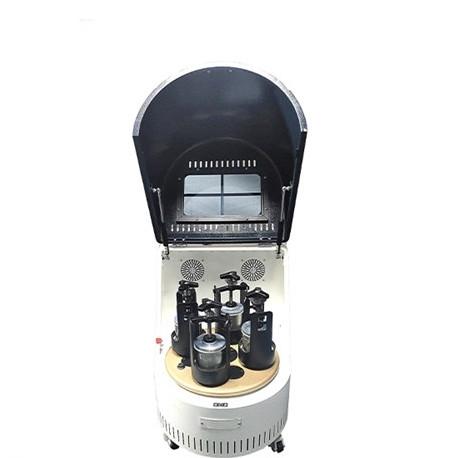

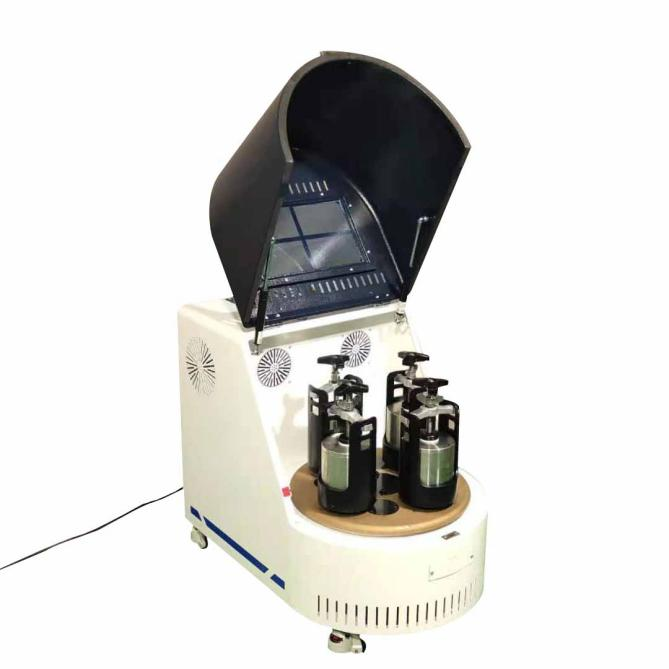

Lab Vertical Semi-circular Arc Planetary Ball Mill with 4 Jars of
Grinding
Characteristic

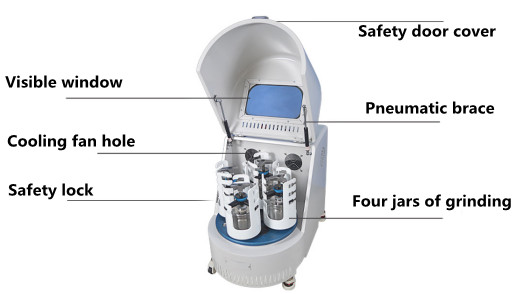

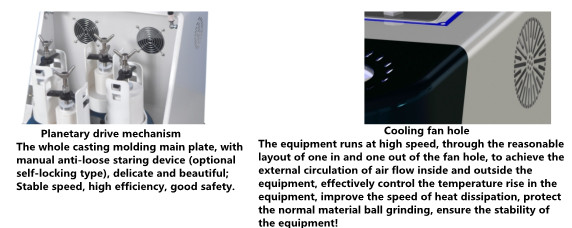

Equipment through professional appearance modeling design, the shell adopts high precision mold stamping molding, generous and delicate, high-end stable, the planet disk adopts casting molding, Numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure smooth and quiet equipment running at a high speed, can watch the device monitor grinding jar can be self-locked locking synchronization at the same time, the operation is convenient, safe and reliable, shell color, the products give New vitality of products, activate the new life of products, in line with the international and domestic aesthetic needs, in line with ergonomics.
|
Mode of transmission |
Gear transmission |
|
Mode of working |
Two and four ball grinding jars work simultaneously |
|
Maximum loading capacity of materials |
Two thirds of the volume of the ball mill jar |
|

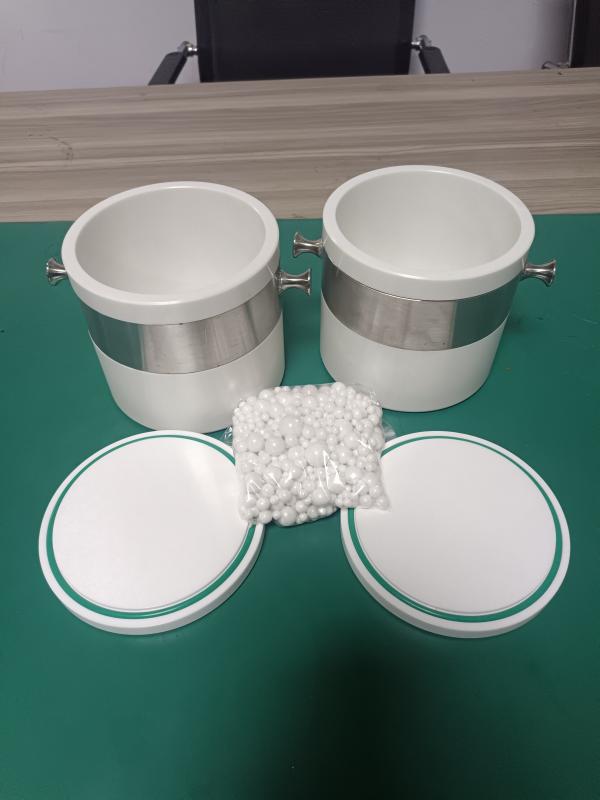

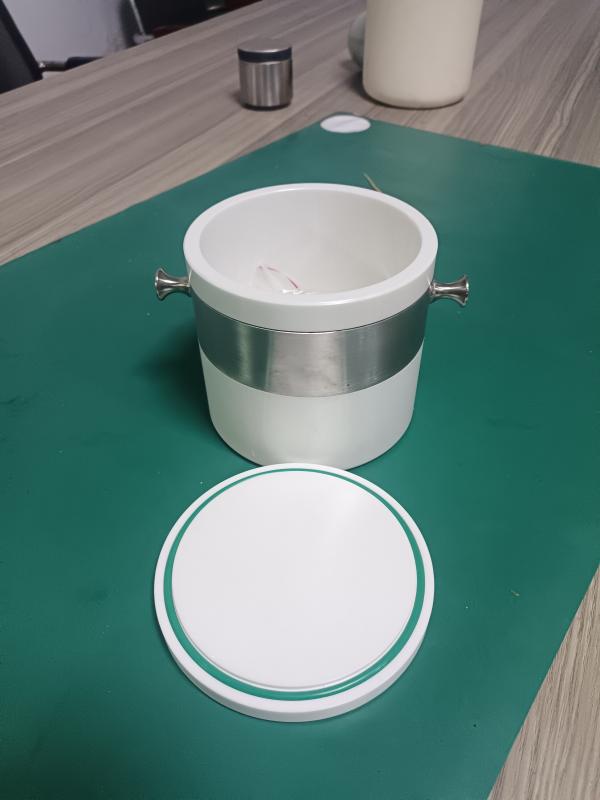

Ball mill tank volume |
0.05-4L per jar, total volume 0.2-16L |
|
Feed granularity |
Soil material≤10mm, and other materials≤3mm |
|
Granularity of discharge |
Down to 0.1 micron |
|
Mode of speed regulation |
Infinitely adjustable-speed |
|
Model |
Volume |
Configurable ball mill specifications |
Qty |
Configurable vacuum ball mill volume |
Locking device |
|
PBM-0.2A |
0.2 |
10-50ml |
4 |
10ml |
Manual |
|
PBM-0.4A |
0.4 |
50-100ml |
4 |
50ml |
Manual |
|
PBM-1A |
1 |
50-250ml |
4 |
50-100ml |
Manual |
|
PBM-2A |
2 |
50-500ml |
4 |
50-250ml |
Manual |
|
PBM-4A |
4 |
250-1000ml |
4 |
50-500ml |
Manual |
|
PBM-8A |
8 |
1-2L |
4 |
50-2000ml |
Manual |
|
PBM-10A |
10 |
1-2.5L |
4 |
1-2L |
Manual |
|
PBM-12A |
12 |
1-3L |
4 |
1-2L |
Manual |
|
PBM-16A |
16 |
2-4L |
4 |
1-3L |
Manual |
|
Model |
Power supply |
Power(kw) |
Total time to run the set(min) |
Alternating positive and negative running time(min) |
Adjustable speed Revolution(rpm) Rotation(rpm) |
|
|
PBM-0.2A |
220V-50HZ(single-phase) |
0.09 |
1-9999 |
1-999 |
60-580 |
120-930 |
|
PBM-0.4A |
220V-50HZ(single-phase) |
0.25 |
1-9999 |
1-999 |
47-465 |
94-930 |
|
PBM-1A |
220V-50HZ(single-phase) |
0.75 |
1-9999 |
1-999 |
35-370 |
70-740 |
|
PBM-2A |
220V-50HZ(single-phase) |
0.75 |
1-9999 |
1-999 |
35-370 |
70-740 |
|
PBM-4A |
220V-50HZ(single-phase) |
0.75 |
1-9999 |
1-999 |
35-370 |
70-740 |
|
PBM-8A |
220V-50HZ(single-phase) |
1.5 |
1-9999 |
1-999 |
35-320 |
70-640 |
|
PBM-10A |
220V-50HZ(single-phase) |
1.5 |
1-9999 |
1-999 |
35-320 |
70-640 |
|
PBM-12A |
220V-50HZ(single-phase) |
2.2 |
1-9999 |
1-999 |
30-320 |
60-510 |
|
PBM-16A |
380V-50HZ(three-phase |
3 |
1-9999 |
1-999 |
35-255 |
70-510 |
|
Model |
Standard panel (optional touch screen) |
Lubrication way（optional automatic grease-adding device） |
Mode of speed regulation |
Weight(kg) |
Size(Length * width * height) |
Noise≤db |
|
PBM-0.2A |
Common |
grease |
Frequency control |
18 |
430*250*270 |
50±5 |
|
PBM-0.4A |
Common |
grease |
Frequency control |
26 |
520*300*420 |
55±5 |
|
PBM-1A |
Common |
grease |
Frequency control |
74 |
740*470*600 |
60±5 |
|
PBM-2A |
Common |
grease |
Frequency control |
74 |
740*470*600 |
60±5 |
|
PBM-4A |
Common |
grease |
Frequency control |
80 |
740*470*600 |
60±5 |
|
PBM-8A |
Common |
grease |
Frequency control |
132 |
870*560*680 |
65±5 |
|
PBM-10A |
Common |
grease |
Frequency control |
138 |
870*560*680 |
68±5 |
|
PBM-12A |
Common |
grease |
Frequency control |
140 |
870*560*680 |
68±5 |
|
PBM-16A |
Common |
grease |
Frequency control |
200 |
940*600*670 |
68±5 |
Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production. The product is small in size, complete in function and high in efficiency. It is an ideal equipment for scientific research institutions, universities, and corporate laboratories to obtain microparticle research samples (four samples can be obtained simultaneously for each experiment). Grind the sample under vacuum.
Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other sectors, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, fluorescence Powder, long afterglow luminous powder, rare earth polishing powder, electronic glass powder, fuel cell, ceramic capacitor, zinc oxide varistor, piezoelectric ceramic, nano material, chip ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO Varistor, arrester valve, strontium titanate ring varistor, ceramic filter, dielectric ceramic, piezoelectric transducer, piezoelectric transformer, chip resistor, thick film circuit, pyroelectric potentiometer, alumina ceramic , Production of zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, nickel-zinc ferrite, manganese-zinc ferrite and other industry products.

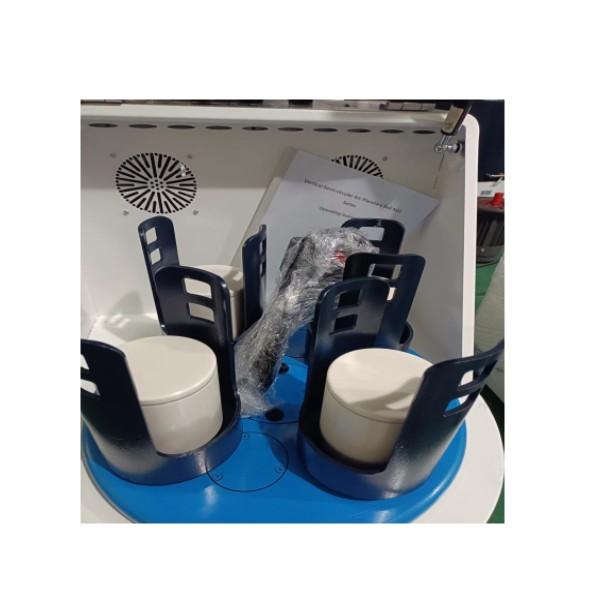

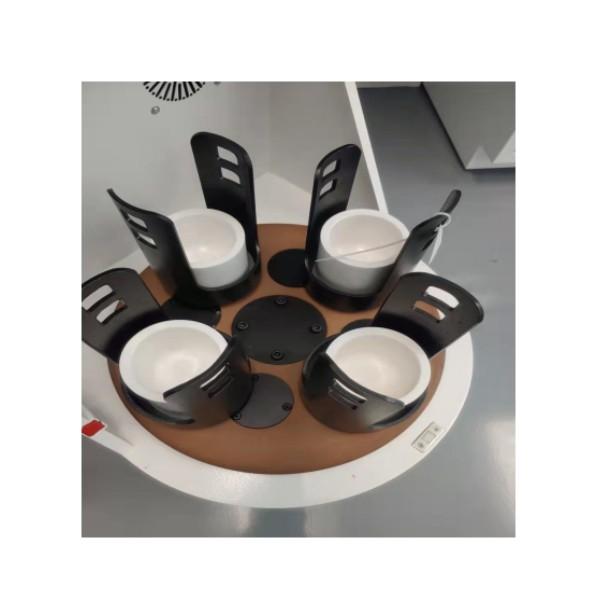

The planetary pulverizer is designed to crush, grind and disperse metal, non-metal, organic, Chinese herbal medicine and other powders. Especially suitable for laboratory research use. Strong shear, impact, and rolling can achieve the purpose of crushing, grinding, dispersing and emulsifying materials. The planetary ball mill is equipped with four ball mill pots on the same turntable. When the turntable rotates, the ball mill pan revolves around the turntable axis and at the same time rotates around its own axis, making planetary motions. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. The product can be used for dry and wet grinding and mixing products with different particle sizes and materials. The minimum particle size of the ground product can be as small as 0.1 microns. Can well meet the requirements of various process parameters. At the same time, due to the advantages of small batch, low power consumption, and low price, it is the primary choice for schools, scientific research units, and enterprises to carry out research on crushing technology, new materials, and coatings.
