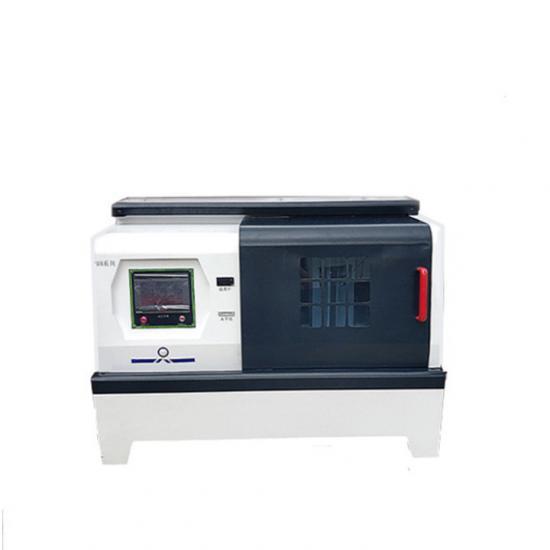

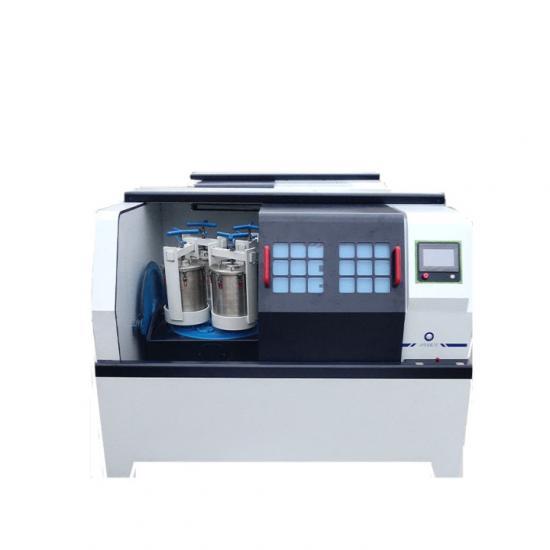

360C Degree Vertical Omnidirectional Planetary Turnover
Grinding Ball Mill Laboratory

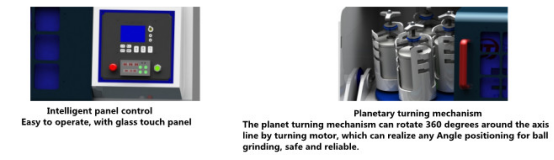

On the basis of the vertical planetary mill, the omni-directional planetary ball mill adds the turnover function of the planetary transmission mechanism. While the planetary disc and the materials and grinding balls in the ball mill tank are doing planetary movement, they can also do 360 ° turnover in a fixed space, so as to realize the multi-dimensional and multi-directional movement of the grinding balls and materials in the ball mill tank and improve the disordered movement of the grinding balls and materials, The whole material is ground without dead angle in the grinding tank, so that the ground material is more uniform, and the problems of bottom sinking and tank sticking of some materials can be solved.
Product character
|
Mode of transmission |
Gear transmission |
|
Mode of working |
Two and four ball grinding jars work simultaneously |
|
Maximum loading capacity of materials |
Two thirds of the volume of the ball mill jar |
|
Ball mill tank volume |
0.05-10L per jar, total volume 0.2-40L |
|
Feed granularity |
Soil material≤10mm, and other materials≤3mm |
|
Granularity of discharge |
Up to 1 micron |
|
Mode of speed regulation |
Infinitely adjustable-speed |
|
Model |
Volume |
Configurable ball mill specifications |
Qty |
Configurable vacuum ball mill volume |
Locking device |
|
OPBM-0.4 |
0.4 |
50-100ml |
4 |
50ml |
automatic |
|
OPBM-1 |
1 |
50-250ml |
4 |
50-100ml |
automatic |
|
OPBM-2 |
2 |
50-500ml |
4 |
50-250ml |
automatic |
|
OPBM-4 |
4 |
250-1000ml |
4 |
50-500ml |
automatic |
|
OPBM-6 |
6 |
1-1.5L |
4 |
50-1000ml |
automatic |
|
OPBM-8 |
8 |
1-2L |
4 |
50-1500ml |
automatic |
|
OPBM-10 |
10 |
1-2.5L |
4 |
1-2L |
automatic |
|
OPBM-12 |
12 |
1-3L |
4 |
1-2L |
automatic |
|
OPBM-16 |
16 |
2-4L |
4 |
1-3L |
automatic |
|
OPBM-20 |
20 |
2-5L |
4 |
2-4L |
automatic |
|
OPBM-40 |
40 |
5-10L |
4 |
4-5L |
automatic |
|
OPBM-60 |
60 |
10-15L |
4 |
5-10L |
manual |
|
OPBM-80 |
80 |
15-20L |
4 |
10-15L |
manual |
|
OPBM-100 |
100 |
20-25L |
4 |
15-20L |
manual |
|
Model |
Power supply |
Power(kw) |
Rotary motor power(KW) |
Total time to run the set(min) |
Alternating positive and negative running time(min) |
Adjustable speed Revolution(rpm) Rotation(rpm) |
|
|
OPBM-0.4 |
220V-50HZ(single-phase)
|
0.75 |
0.09 |
1-9999 |
1-9999 |
47-465 |
94-930 |
|
OPBM-1 |
220V-50HZ(single-phase) |
0.75 |
0.09 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
OPBM-2 |
220V-50HZ(single-phase) |
0.75 |
0.09 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
OPBM-4 |
220V-50HZ(single-phase) |
0.75 |
0.09 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
OPBM-6 |
220V-50HZ(single-phase) |
0.75 |
0.12 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
OPBM-8 |
220V-50HZ(single-phase) |
1.5 |
0.12 |
1-9999 |
1-9999 |
35-320 |
70-640 |
|
OPBM-10 |
220V-50HZ(single-phase) |
1.5 |
0.12 |
1-9999 |
1-9999 |
35-320 |
70-640 |
|
OPBM-12 |
220V-50HZ(single-phase) |
1.5 |
0.12 |
1-9999 |
1-9999 |
35-320 |
70-640 |
|
OPBM-16 |
380V-50HZ(three-phase) |
3 |
0.12 |
1-9999 |
1-9999 |
30-255 |
60-510 |
|
OPBM-20 |
380V-50HZ(three-phase) |
4 |
0.75 |
1-9999 |
1-9999 |
25-215 |
50-430 |
|
OPBM-40 |
380V-50HZ(three-phase) |
5.5 |
0.75 |
1-9999 |
1-9999 |
20-195 |
40-390 |
|
OPBM-60 |
380V-50HZ(three-phase) |
7.5 |
1.1 |
1-9999 |
1-9999 |
27-174 |
40-260 |
|
OPBM-80 |
380V-50HZ(three-phase) |
11 |
1.5 |
1-9999 |
1-9999 |
27-160 |
40-240 |
|
OPBM-100 |
380V-50HZ(three-phase) |
11 |
1.5 |
1-9999 |
1-9999 |
27-160 |
40-240 |
|
Model |
Standard panel (optional touch screen) |
Lubrication way（optional automatic grease-adding device） |
Mode of speed regulation |
Weight(kg) |
Size(Length * width * height) |
Noise≤db |
|
OPBM-0.4 |
intelligent |
grease |
Frequency control |
140 |
900*570*650 |
55±5 |
|
OPBM-1 |
intelligent |
grease |
Frequency control |
280 |
1330*770*810 |
60±5 |
|
OPBM-2 |
intelligent |
grease |
Frequency control |
280 |
1330*770*810 |
60±5 |
|
OPBM-4 |
intelligent |
grease |
Frequency control |
285 |
1330*770*810 |
60±5 |
|
OPBM-6 |
intelligent |
grease |
Frequency control |
290 |
1330*770*810 |
60±5 |
|
OPBM-8 |
intelligent |
grease |
Frequency control |
345 |
1350*850*900 |
60±5 |
|
OPBM-10 |
intelligent |
grease |
Frequency control |
345 |
1350*850*900 |
65±5 |
|
OPBM-12 |
intelligent |
grease |
Frequency control |
350 |
1350*850*900 |
65±5 |
|
OPBM-16 |
intelligent |
grease |
Frequency control |
400 |
1550*940*1050 |
65±5 |
|
OPBM-20 |
intelligent |
grease |
Frequency control |
710 |
1700*1200*1250 |
68±5 |
|
OPBM-40 |
intelligent |
grease |
Frequency control |
1000 |
1900*1450*1400 |
68±5 |
|
OPBM-60 |
intelligent |
grease |
Frequency control |
2180 |
2150*1750*2090 |
68±5 |
|
OPBM-80 |
intelligent |
grease |
Frequency control |
2400 |
2300*1900*2140 |
68±5 |
|
OPBM-100 |
intelligent |
grease |
Frequency control |
2400 |
2300*1900*2140 |
68±5 |

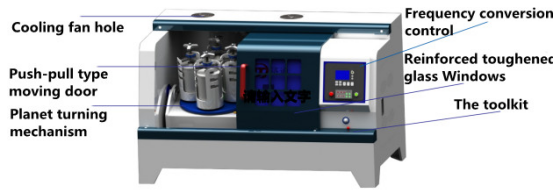

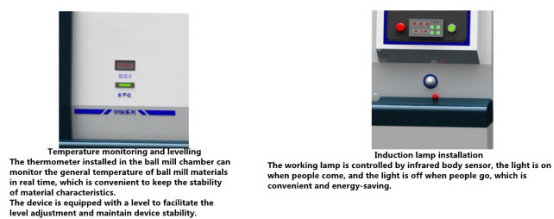

Features of omnidirectional planetary ball mill

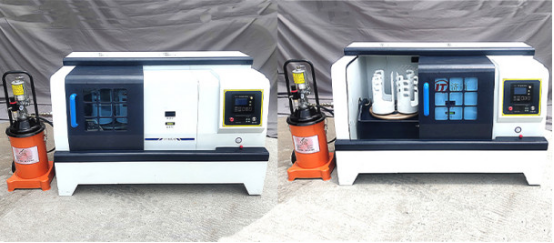

The equipment is lightweight sliding door] easy to operate, the shell is made of high-precision laser cutting, CNC bending forming, generous and exquisite, high-end and stable, the planetary disc and structural components are processed by CNC processing technology, and the nitriding metal heat treatment process ensures the resistance of the rotating shaft. To prevent shaft breakage, the transmission gear adopts high-temperature and wear-resistant non-metal and metal combination precision gears, which are lubricated by grease, and can be equipped with our company's automatic grease adding device. Lubricating the transmission components causes abrasion, shortens the service life of the equipment, and ensures the smooth and quiet operation of the equipment at high speed.
Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production. The product is small in size, complete in function and high in efficiency. It is an ideal equipment for scientific research institutions, universities, and corporate laboratories to obtain microparticle research samples (four samples can be obtained simultaneously for each experiment). Grind the sample under vacuum.
Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other sectors, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, fluorescence Powder, long afterglow luminous powder, rare earth polishing powder, electronic glass powder, fuel cell, ceramic capacitor, zinc oxide varistor, piezoelectric ceramic, nano material, chip ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO Varistor, arrester valve, strontium titanate ring varistor, ceramic filter, dielectric ceramic, piezoelectric transducer, piezoelectric transformer, chip resistor, thick film circuit, pyroelectric potentiometer, alumina ceramic , Zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder production, nickel-zinc ferrite, manganese-zinc ferrite and other industry products.
The planetary pulverizer is designed to crush, grind and disperse metal, non-metal, organic, Chinese herbal medicine and other powders. Especially suitable for laboratory research use. Strong shear, impact, and rolling can achieve the purpose of crushing, grinding, dispersing and emulsifying materials. The planetary ball mill is equipped with four ball mill pots on the same turntable. When the turntable rotates, the ball mill pan revolves around the turntable axis, and at the same time rotates around its own axis, making planetary motions. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. The product can be used for dry and wet grinding and mixing products with different particle sizes and materials. The minimum particle size of the ground product can be as small as 0.1 microns. Can well meet the requirements of various process parameters. At the same time, due to the advantages of small batch, low power consumption, and low price, it is the primary choice for schools, scientific research units, and enterprises to carry out research on crushing technology, new materials, and coatings.
