Lab 8 Inches to 12 Inches Programmable Vacuum Benchtop Spin Coater with 12-inch Silicon Wafer

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna

  • Item no.:

    LITH-4Q
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

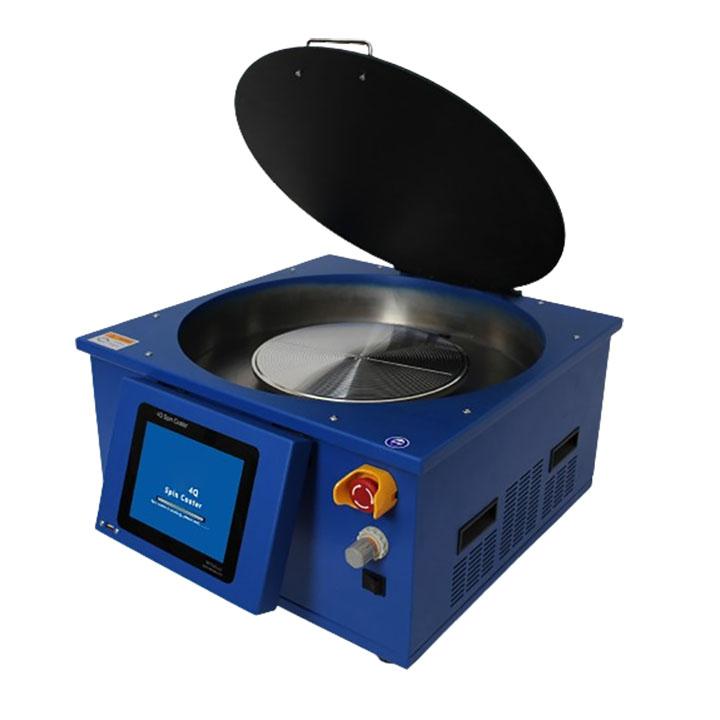

Lab 8 Inches to 12 Inches Programmable Vacuum Benchtop Spin Coater with 12-inch Silicon Wafer



Spin Coater


Key Features:

1.  Support 12-inch silicon wafer spin coating

2.  The maximum speed can reach 6000 rpm.

3.  Acceleration 10- 1000RPM/S continuously adjustable

4.  With Bluetooth communication

5.  Support standard 485modbus communication

6.  Free PC control software.


Spin Coater Specifications (KW-4Q Spin Coater)

Substrate size

200-300mm (8 inches to 12 inches)

Speed range

10-6000RPM

Acceleration range

10- 1000RPM/S, Adjustable

Motor speed stability

±1RPM

Spin coating uniformity

±1%

Human machine interface

8-inch touch screen

Communication interface

USB (standard)/RS485 (optional)/Bluetooth (standard)

Turn around

Support forward and reverse

Stylus

Stylus BAMBOO resistance pen (standard)

Vacuum Pump

SC-550V

Set data

Unlimited  groups  of  data,  each  group  has   15  speeds  (standard)  or unlimited speeds (optional)

Seconds per period

0- 10000s

Storage data

Unlimited data

Data protection

default with power-down protection

Operating voltage(Spin Coater)

AC100-250V, single phase, 50/60Hz

Operating voltage(Pump)

AC220V(Standard)    AC110V(Optional)

Pumping speed

≥60L/MIN

Max vacuum

-85KPA

Sound Level

≤55db

Spin coater power

2KW

Pump power

350W

Dimensions(Spin Coater)

550mm(W)X550mm(D)X350mm(H)

Weight(Spin Coater)

50KG

Weight(Pump)

9KG

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year







PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
