Lab 500ML Programmable Dual-shaft Planetary Vacuum Mixer for Perovskite Solar Cell Assembly Line

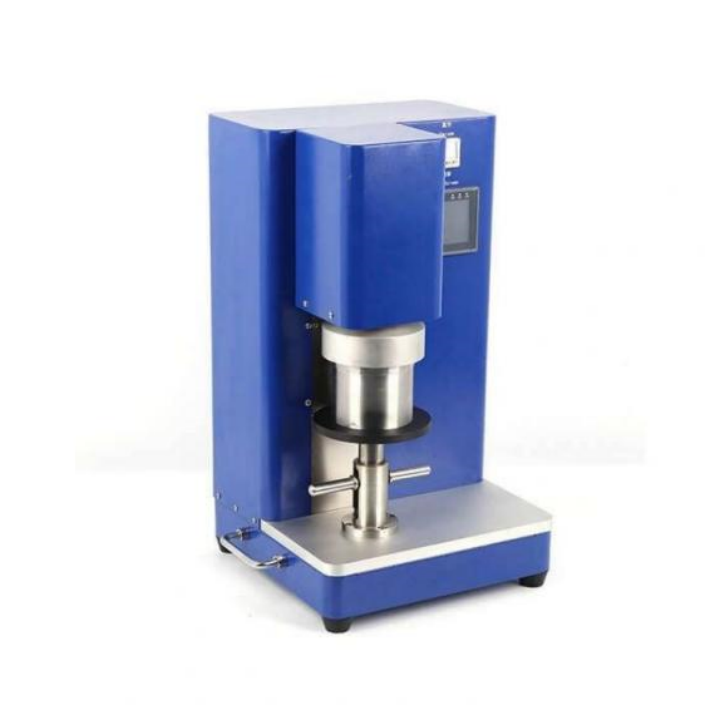

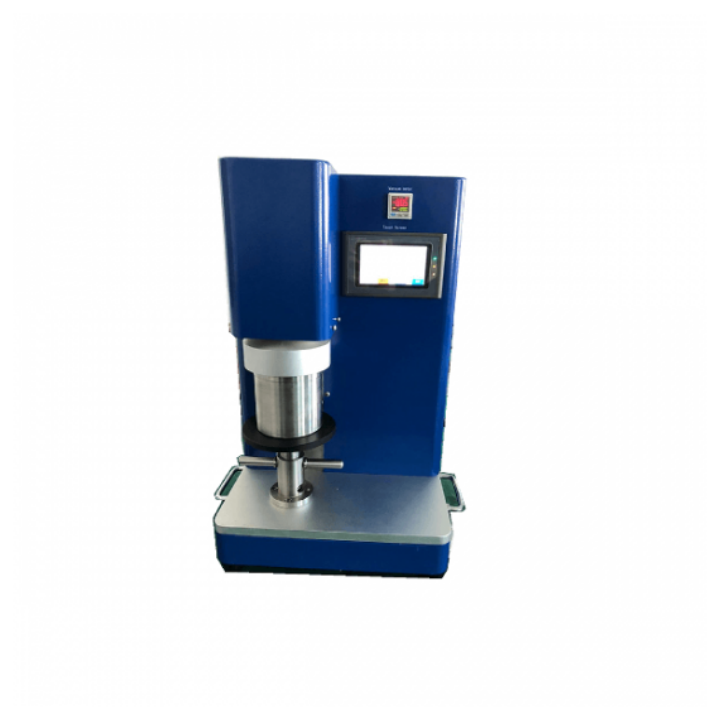

TMAX-XJB is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing gas bubble, which can vacuum the mixing container to -0.08 MPa. It is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab. For full details about dual shaft mixer here.
SPECIFICATIONS:
|
Voltage Input & Power |
One UL listed 100-240 VAC IN |
|
Rotary Speed |
0 - 600 rpm |
|
Mixing Container |
1. One 500 mL stainless steel vacuum sealed container is included. |
|
Vacuum Pump |
Built-in single stage vacuum pump |
|
Contol Panel |
1. Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off |
|
Timing Range |
0 to 120 minutes for built-in mechanical timer |
|
Dimensions |

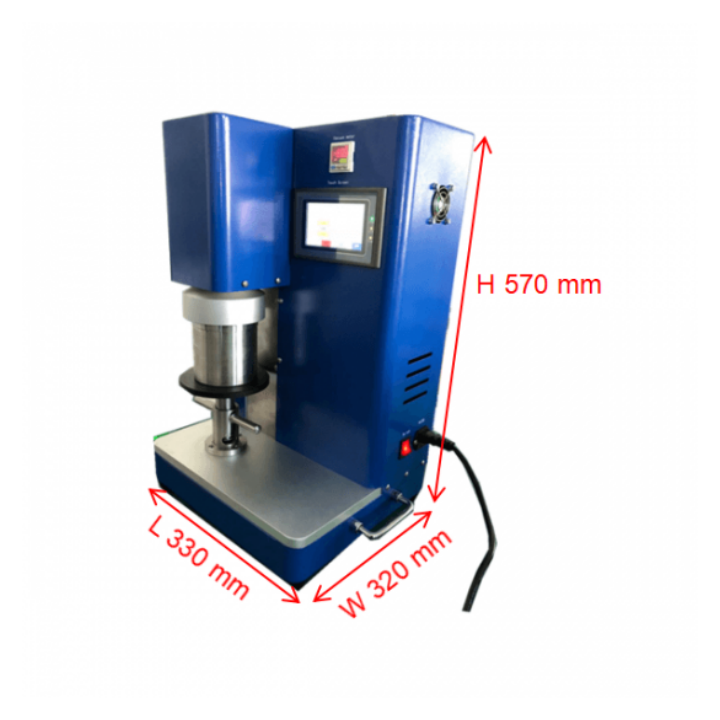

330 mm x 320 mm × 570 mm |
|
Compliance |
CE Certified |
|
Warranty |
One years limited warranty with lifetime technical support |
|
Net Weight |
40 kg (88 lbs) |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
