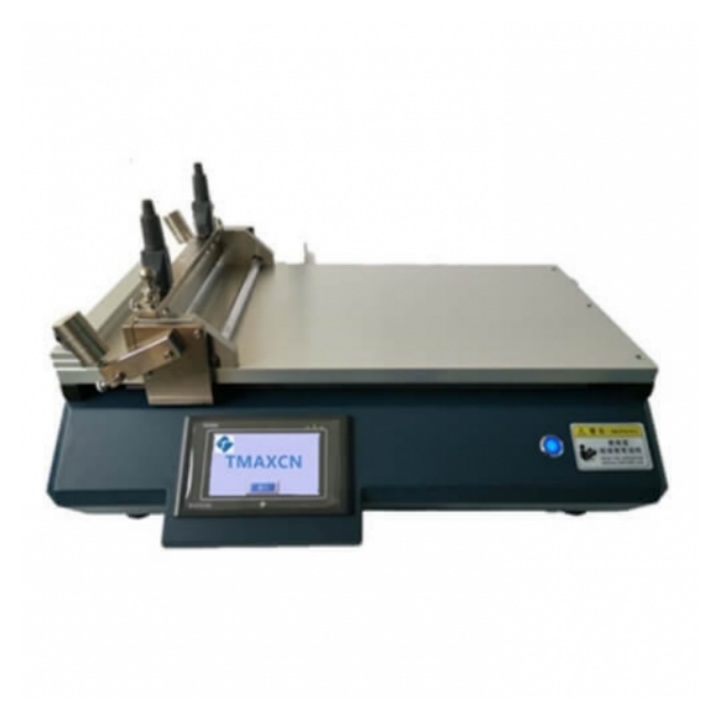

Lab 5-inch PLC Touch Screen Desktop 160C Film Coater or Quality Blade coater
Features
TMAX-MS-ZN320B is an automatic coating machine with integrated functions such as bar coating, doctor blade and heating. It is an ideal equipment for coating electrodes, glues and other high viscosity samples in the laboratory. we are dedicated to providing quality blade coater for customers.
Specifications
|
Control system |
5 inch PLC touch screen |
|
Coating method |
Doctor blade/bar can be used alternately |
|
Heating |
normal temperature ~ 160 degrees (constant temperature setting) |
|
Effective coating range |
300*450mm |
|
Coating thickness |
0.005-3MM |
|
Automatic control |
travel setting/speed setting/temperature setting |
|
Suitable for |
Lithium battery, PET, aluminum foil, paper and other flat materials |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
