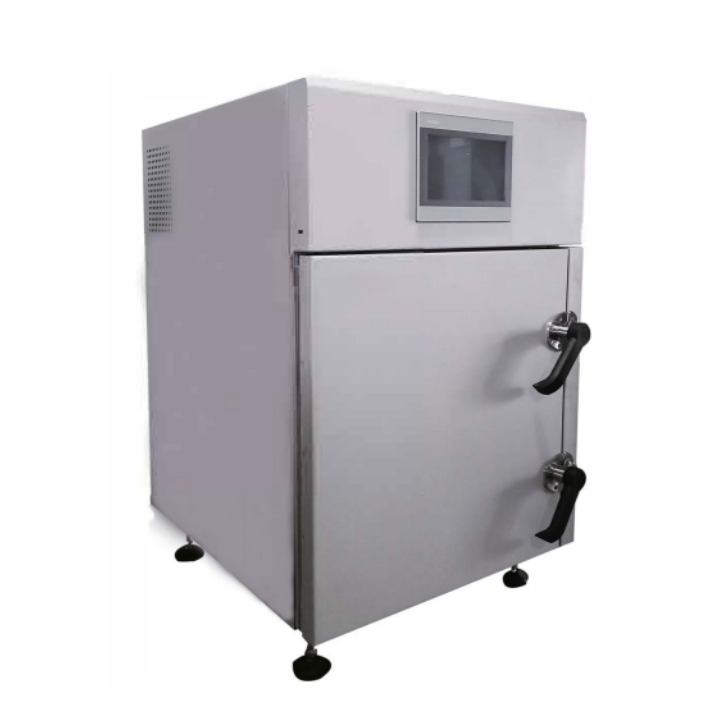

Lab 1150C High Temperature Microwave Box Type Furnace
Summarize
Microwave box furnace is a standardized microwave rapid heating equipment, which is suitable for sintering, roasting, synthesis and heat treatment technology research in large space.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) It can achieve rapid heating and rapid extreme cooling, saving 90% of the time than the traditional Muffle furnace;
3) Touch screen operation, simple and convenient; Brand control system, stable and reliable;
4) Using the original thermal insulation and crucible structure, no slag, no pollution; Durable;
5) Door open and power off, power restoration delay, professional microwave shielding technology to ensure safety.
Technical parameter
|
Model
Parameter |
HY-MF6012 |
|
Voltage |
380±10V，50Hz |
|
Microwave output power |
0.01~5.60kW, continuously adjustable (Panasonic) |
|
Heating space (L x W x H) |
300x300x280mm |
|
Microwave frequency |
2.45GHz |
|
Operating temperature |
≤1150℃ |
|
Temperature measurement method |
Thermocouple/infrared |
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, sexual gas, weak reduction gas, etc |
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|
Main body (L x W x H) |
About 1100x600x1750mm |
Consumables and optional accessories
