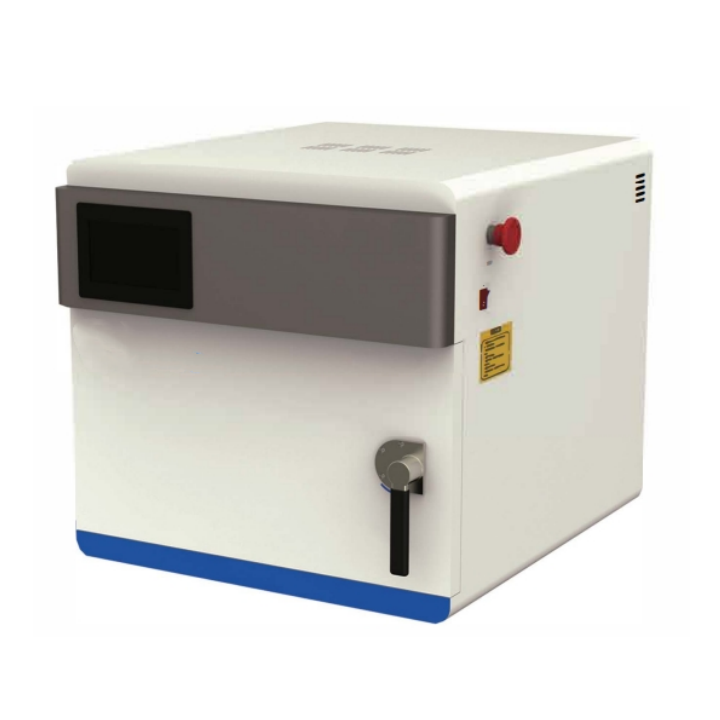

1200C Microwave Muffle Furnace with Original Heat Preservation And Crucible Structure
Summarize
HY-MF microwave muffle furnace is a standard microwave high temperature equipment for laboratory use, applicable to various materials sintering synthesis, roasting and calcination and other process experimental research.
Main features
1) Industrial-grade brand microwave source, microwave output power stepless adjustable, to ensure that the equipment is continuous and stable for a long time;
2) Rapid heating and rapid extreme cooling can be realized, the experimental efficiency is greatly improved, saving 90% of the time than the traditional muffle furnace;
3) Touch screen operation, simple and convenient; brand control system, stable and reliable;
4) Adopt original heat preservation and crucible structure, no slagging, no pollution, durable;
5) Door open and power off, resumption delay, professional microwave shielding technology, to ensure safety.
Technical parameter
|
Model
Parameter |
HY-MF1512 |
HY-MF3012 |
|
|
Voltage |
220±10V，50Hz |
220±10V，50Hz |
|
|
Microwave output power |
0.01~1.40kW, continuously adjustable (Panasonic) |
0.01~2.80kW, continuously adjustable (Panasonic) |
|
|
Heating space (L x W x H) |
110x110x70mm |
200x200x100mm |
|
|
Microwave frequency |
2.45GHz |
||
|
Operating temperature |
≤1100℃ |
||
|
Temperature measurement method |
Thermocouple/infrared |
||
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
||
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
||
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
||
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
||
|
Main body (L x W x H) |
About 750x550x650mm |
About 850x650x750mm |
|
Consumables and optional accessories
