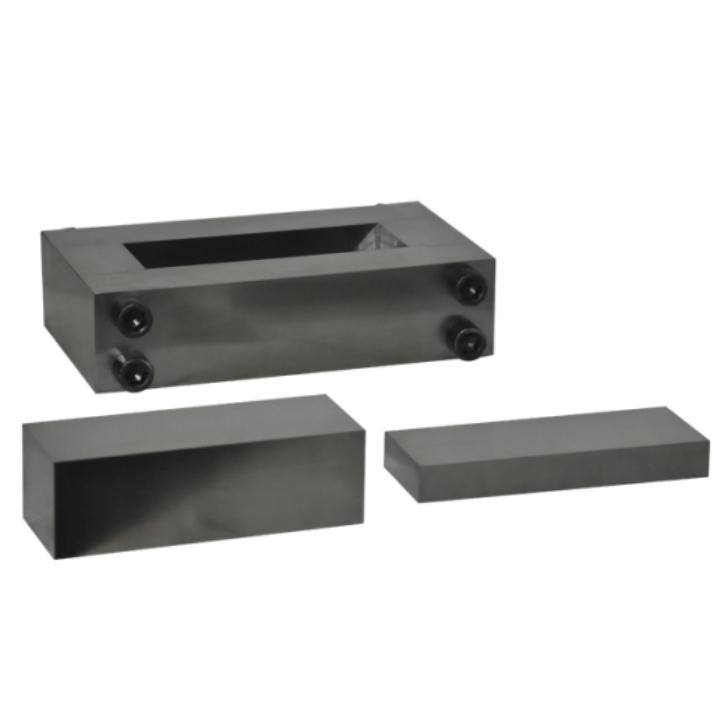

 81-150mm Splicing Square Powder Pellet Press Die

Splicing Square Press Die
Splicing Square Press Die

81-150mm Splicing Square Powder Pellet Press Die

Contact Person：Gilia Ding


Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna



  • Item no.:

    LITH-PMF-P

  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal

  • Lead Time:

    7 days

  • Compliance:

    CE Certified

  • Warranty:

    Two years limited standard warranty
  • Product Detail

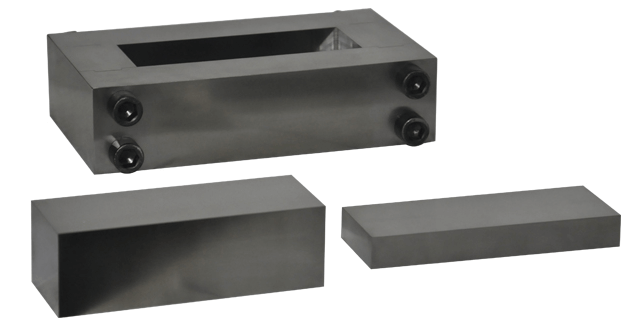

81-150mm Splicing Square Powder Pellet Press Die



Splicing Square Press Die


Parameter

Model

LITH-PMF-P

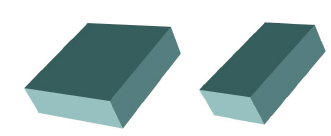

Compressed sample shape



Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

Long side 81-150mm(M)

Cavity depth

60mm(N)

Dimensions

160*140mm, (L*H)

Mold weight

25kg-40kg

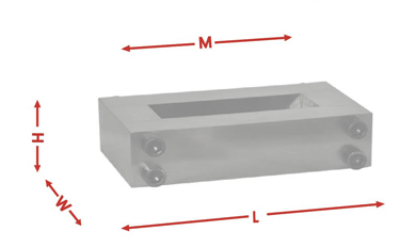

Dimension diagram

Splicing Square Press Die

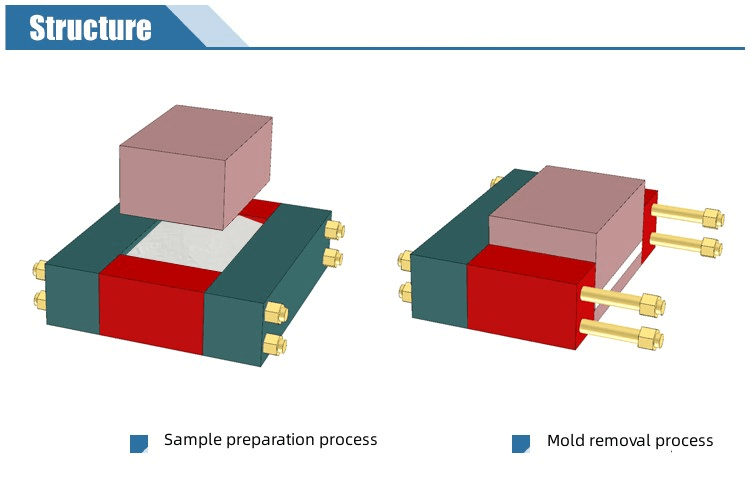

Schematic Diagram of Mold Operation

Powder Pellet Press Die

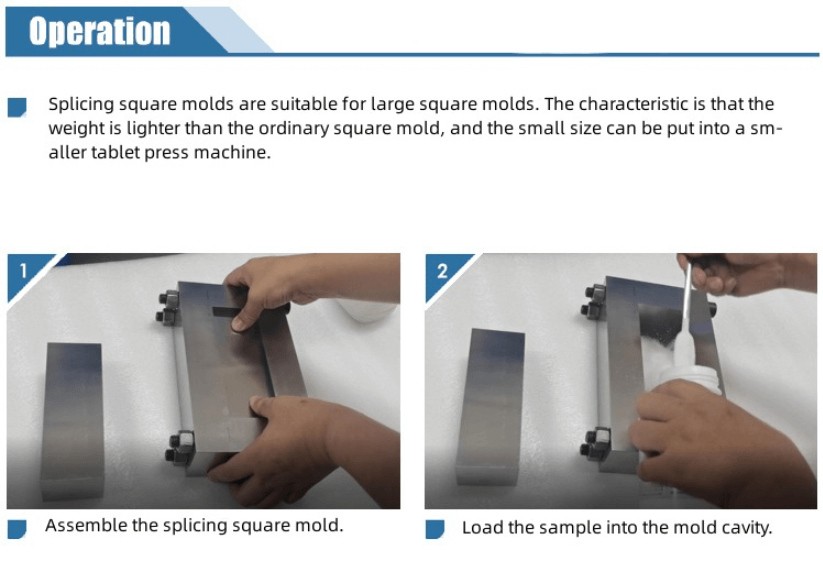

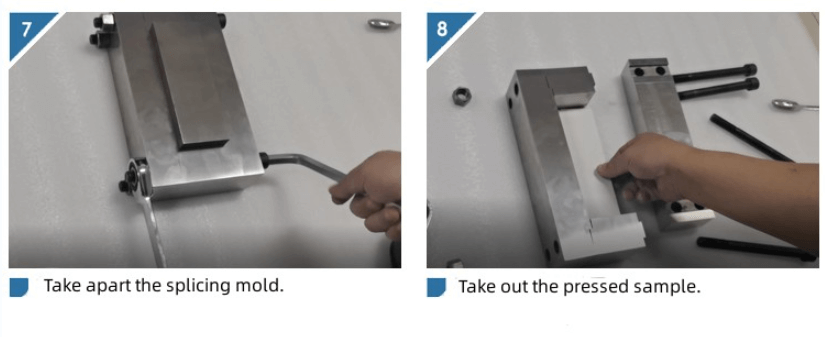

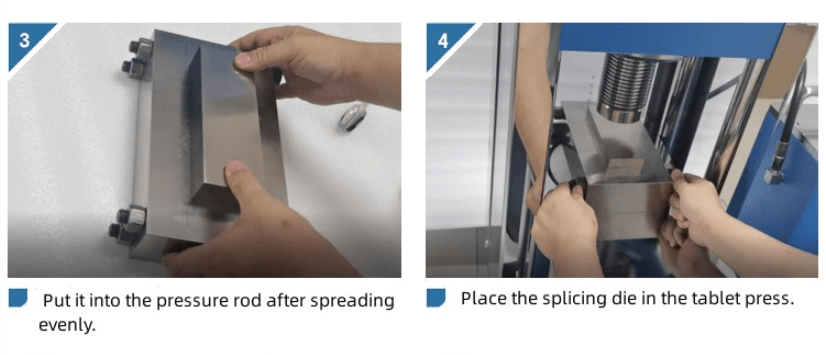

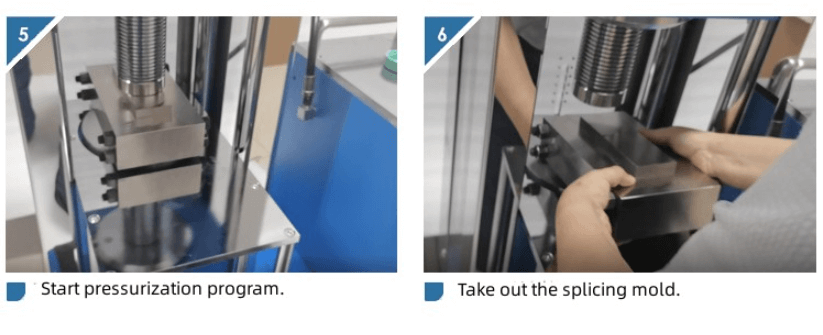

Mold sample preparation operation steps

Powder Pellet Press Die

Square Pellet Press Die


81-150mm Square Press Die

 81-150mm Square Press Die




Mold use and maintenance
