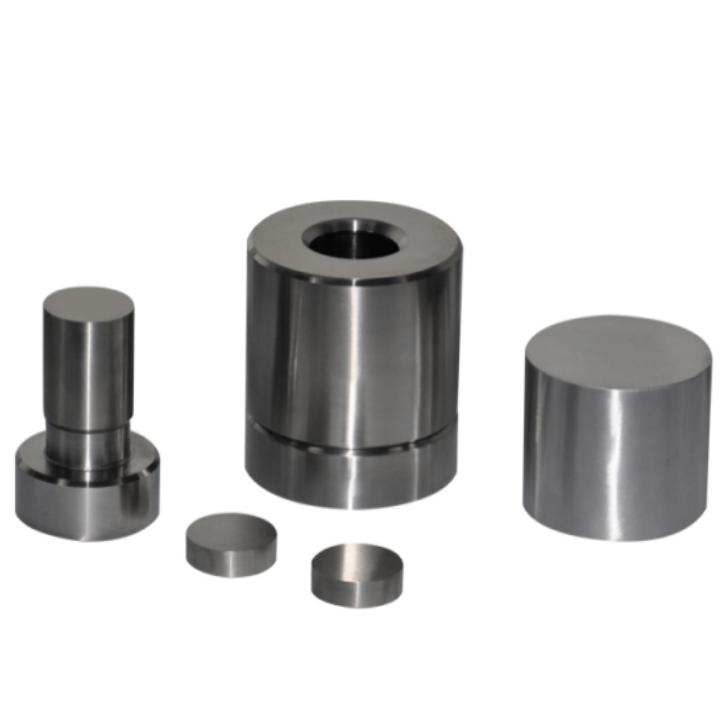

Φ26-40mm Ordinary Cylindrical Hydraulic Press Die
Parameter
|
Model |
LITH-PMY-D |
|
Compressed sample shape |
|
|
Mold material |
Alloy tool steel:Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
Φ28、Φ30、Φ32、Φ35、Φ40mm(M) |
|
Cavity depth |
45mm(N) |
|
Dimensions |
Φ73*133mm(L*H) |
|
Mold weight |
2.9kg |
|
Dimension diagram |
|
Schematic Diagram of Mold Operation

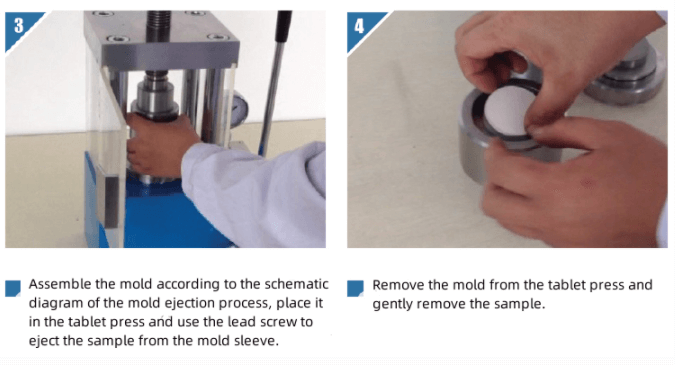

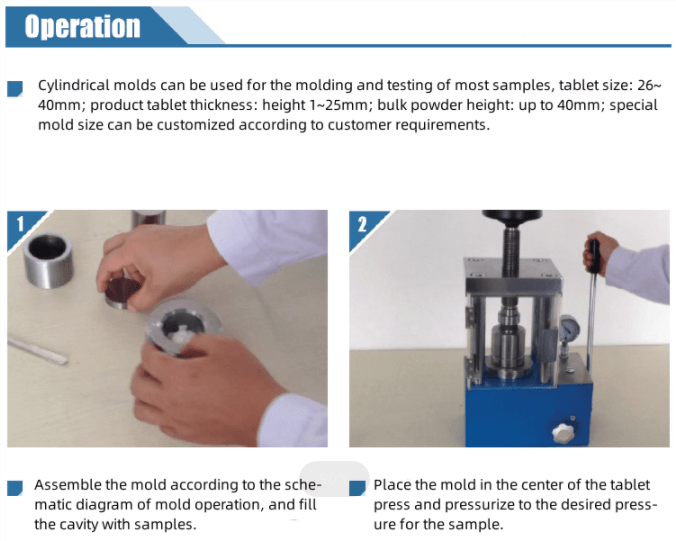

Mold sample preparation operation steps
Mold use and maintenance
