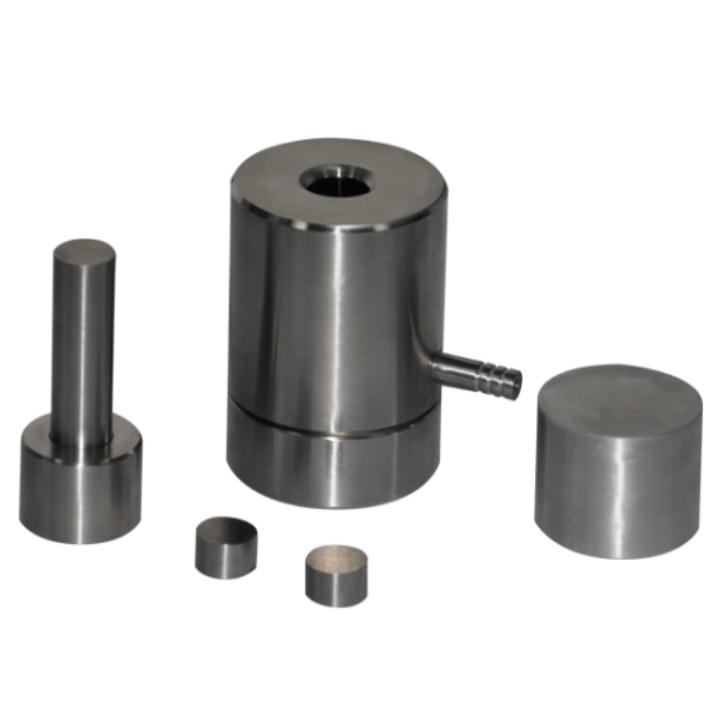

Φ15-25mm Ordinary Cylindrical Hydraulic Pressing Die
Parameter
|
Model |
LITH-PMY-C |
|
Compressed sample shape |
|
|
Mold material |
Alloy tool steel:Cr12MoV |
|
Indenter hardness |
HRC60-HRC62 |
|
Sample size |
Φ15、Φ16、Φ18、Φ20、Φ22、Φ25mm(M) |
|
Cavity depth |
40mm(N) |
|
Dimensions |
Φ53*120mm(L*H) |
|
Mold weight |
1.34kg |
|
Dimension diagram |
|
Schematic Diagram of Mold Operation

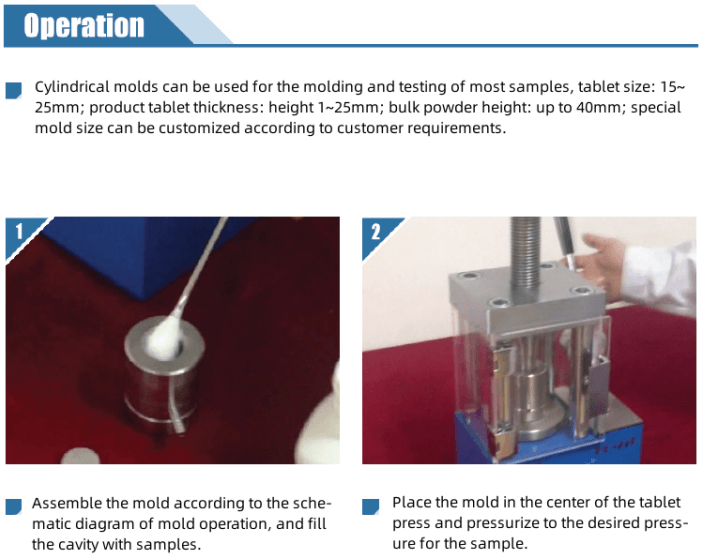

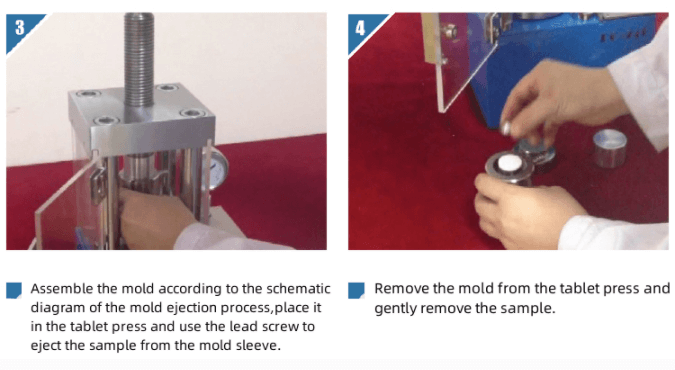

Mold sample preparation operation steps
Mold use and maintenance
