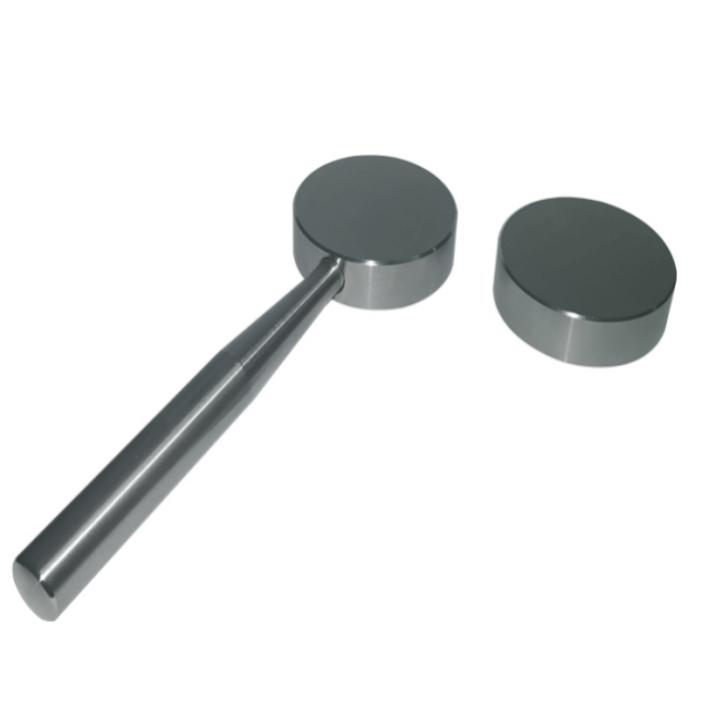

Lab Round Flat Plate Hydraulic Press Mold for the Pressing of Bettery Electrodes

Contact Person:Gilia Ding


Email: gilia@inthelaboratory.com

Tel:+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat:Dingqiuna



  • Item no.:

    LITH-PMB-A
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Lead Time:

    7 days
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited standard warranty
  • Product Detail

Lab Round Flat Plate Hydraulic Press Mold for the Pressing of Bettery Electrodes

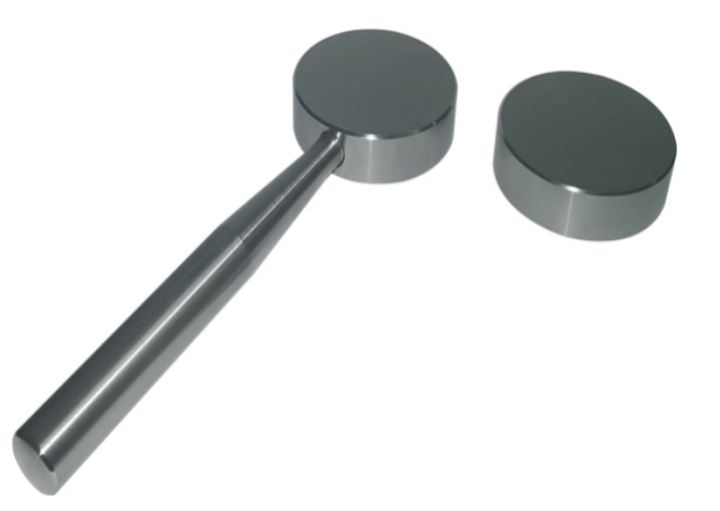

Round Flat Plate Press Mold


Parameter

Model

LITH-PMB-A



Compressed sample shape



Mold material

Alloy tool steel: Cr12MoV

Indenter hardness

HRC60-HRC62

Sample size

<Φ50mm(M)

Cavity depth

0.02-0.1mm(N)

Dimensions

Φ200*50mm(L*H)

Mold weight

3.0kg

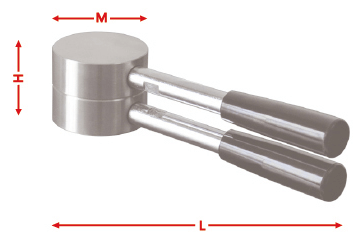

Dimension diagram

Round Flat Plate Press Mold

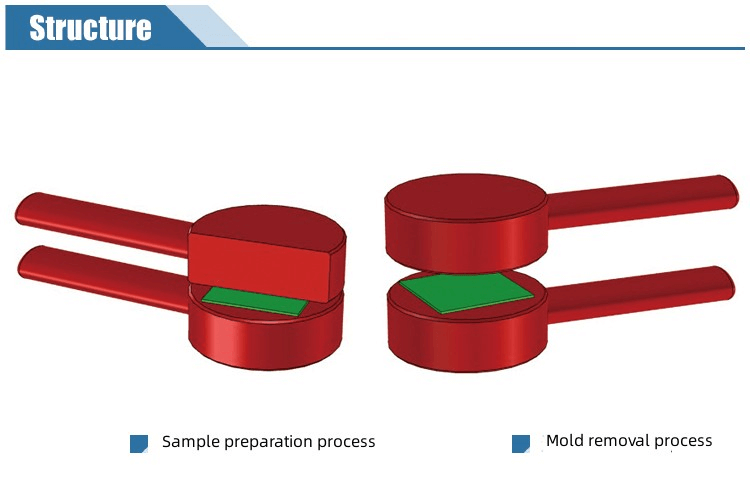

Schematic Diagram of Mold Operation

Flat Plate Press Mold

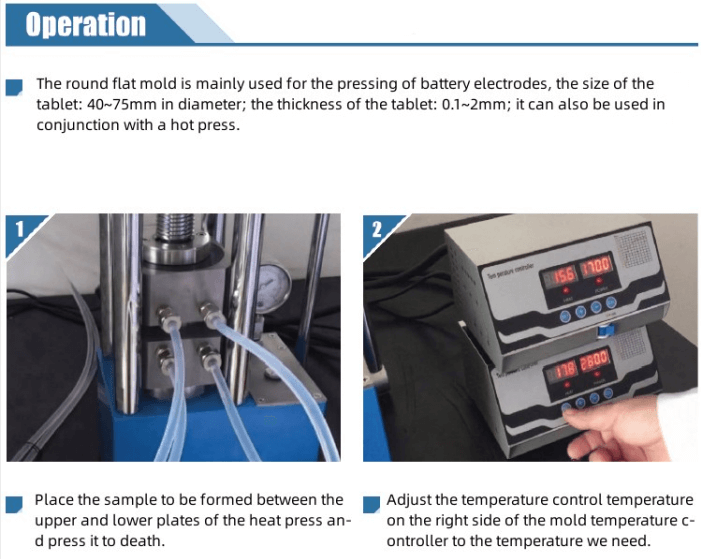

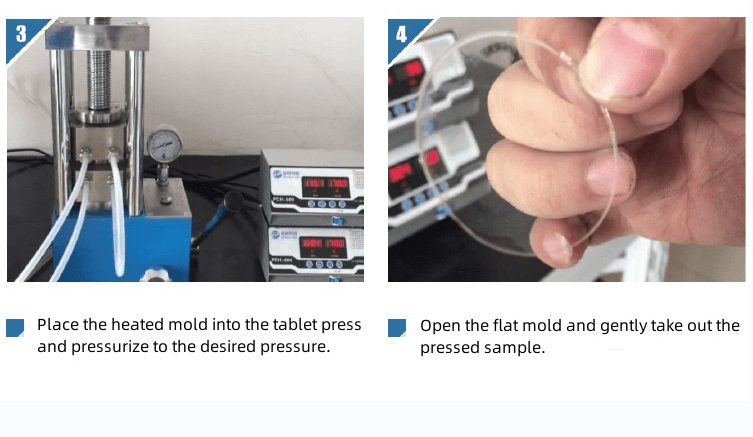

Mold sample preparation operation steps

Hydraulic Press Mold

Lab Flat Plate Press Mold








Mold use and maintenance
