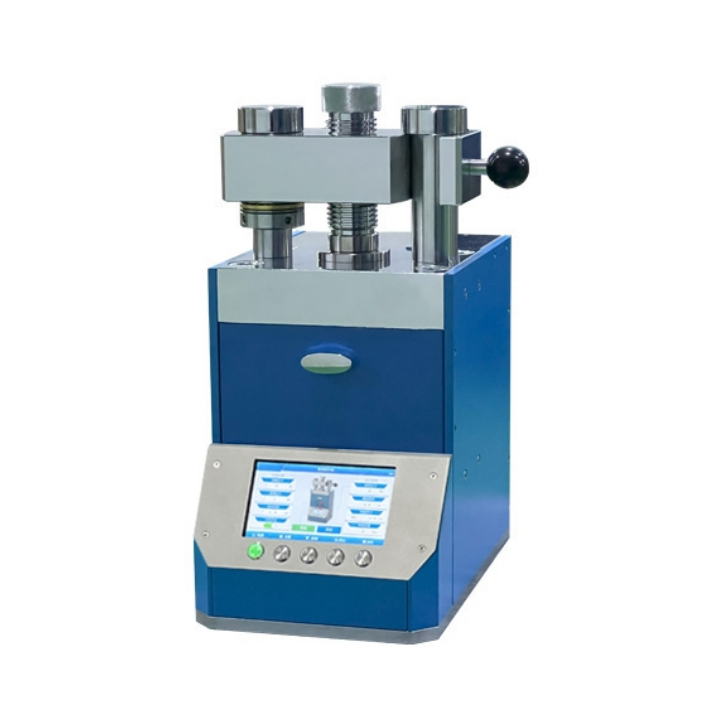

60T Lab Automatic Demolding Fluorescent Tablet Press
Machine
Operation interface (Manual mode)
Standard interface: Various parameters such as pressure, demoulding, time, sample size, etc. can be set in this interface alone.
Pressurization button: Press according to the parameters set on the interface.
Stop button: Press the stop button during the pressurization process to stop the pressurization.
Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.
Timing switch: The timing function can be turned on and off.
Operation interface (Automatic mode)
Activate button: It can be pressurized according to a multi-stage pressurization program.
Stop button: During the pressurization process, you can stop the pressurization process.
List/Curve: The current display state can be switched between list and curve
Operation steps (Boric acid mold)
Operation Procedure (Steel ring mold)
Operation procedure(Plastic ring mold)
Technical parameter
|
Instrument type |
PP-60X |
|
Pressure range |
0-60.0 tons |
|
Pressurization process |
Common or connected multi-section pressure and can display pressure curves |
|
Holding time |
1 s to ∞ s |
|
Pressure conversion |
Program automatically converts mold pressure |
|
Liquid crystal display |
7 inch (IPS HD) touch screen |
|
Metal keying |
Silver-plated contact, service life > 100,000 times |
|
Built-in mold |
Boric acid/steel ring/plastic ring mold (built-in 1 set of mold) |
|
Sample size |
Standard φ40mm |
|
Mold material |
440C mold steel |
|
Demoulding mode |
Automatic release |
|
Overall dimension |
300X520X580mm(LXWXH) |
|
Equipment power supply |
550W(220V/110 can be customized) |
|
Equipment weight |
180Kg |
|

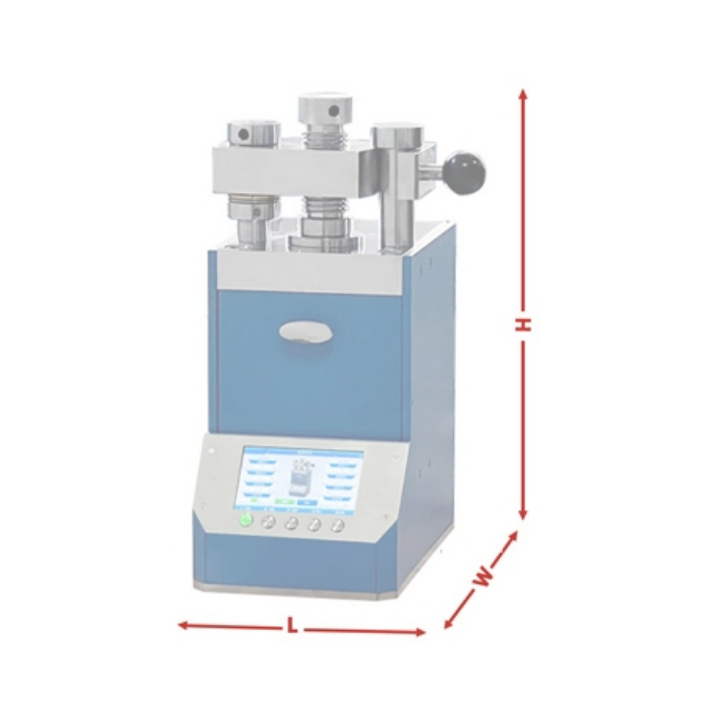

Powder tablet press size diagram |
|
