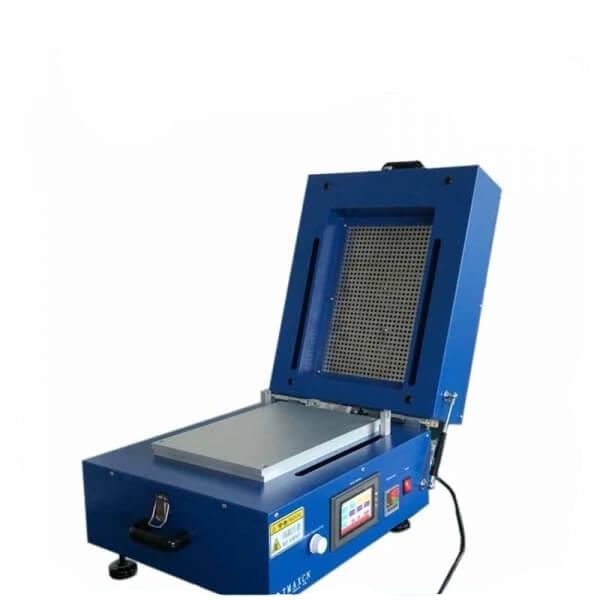

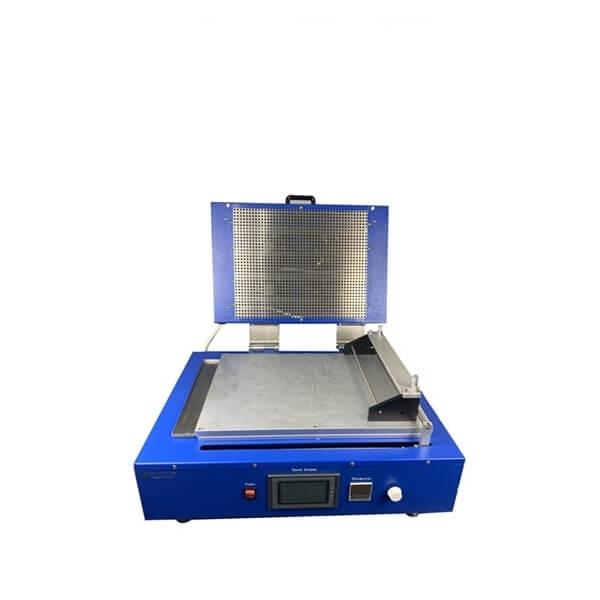

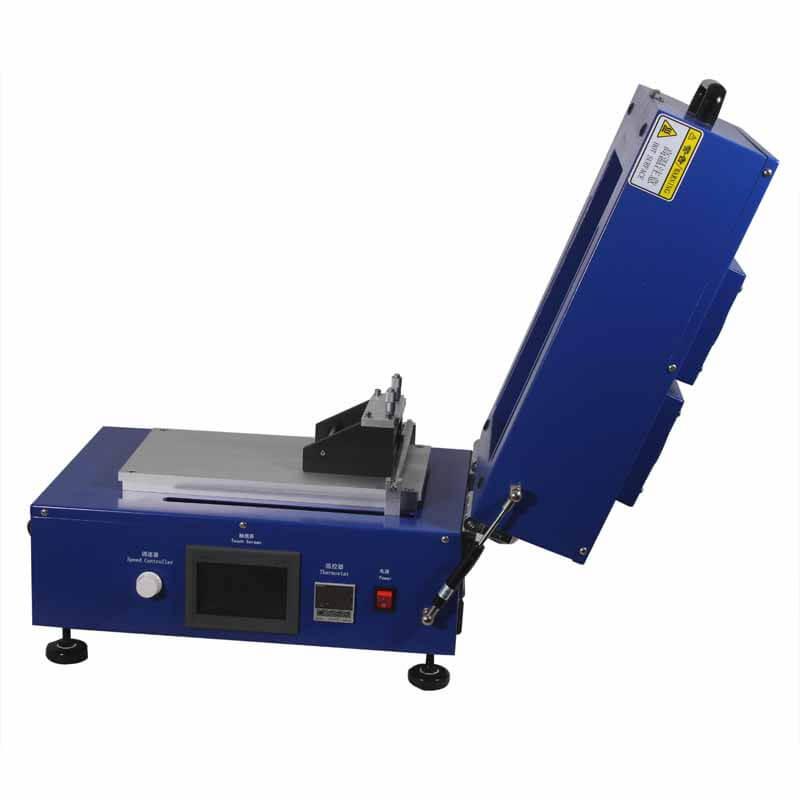

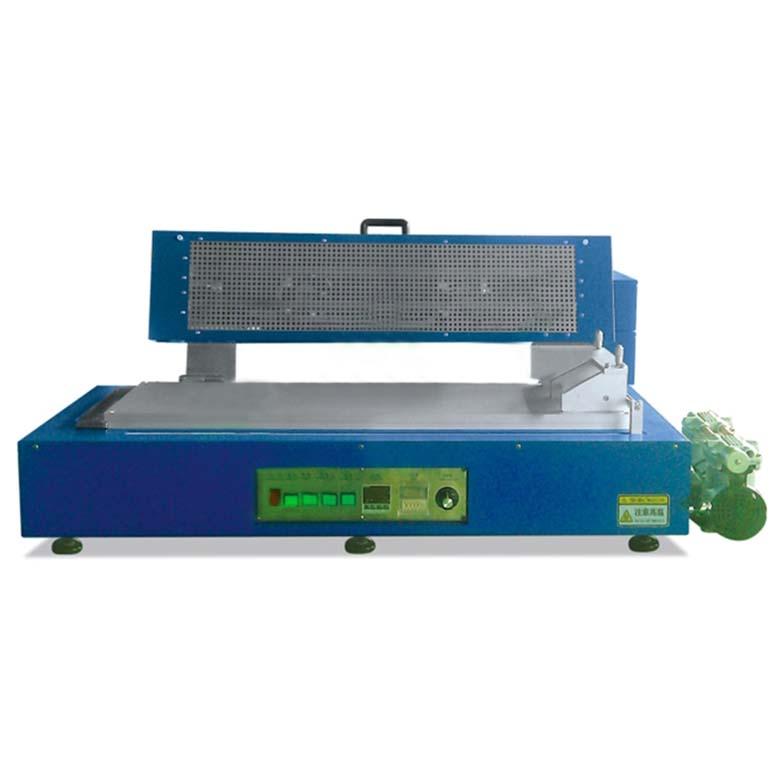

Vacuum Lab Blade Auto Film Coater Coating Machine with Drying Function

Product Name: Vacuum Lab Blade Auto Film Coater Coating Machine

This product is a casting coating machine with a length of 800mm, including a vacuum suction cup and an oil-free vacuum pump, and can produce long thick films with a scraper. With a unique automatic propulsion device, it can produce smooth coatings on any material within a width of 150mm and a length of 800mm. It is an ideal tool for low-cost research and development of 18650 battery electrode materials.

Features:

a. Strong wind circulation drying and heating, digital display temperature control, working temperature 130 ℃;

b. Digital display timer, the drying time can be set freely;

c. Coating speed is adjustable within the range of 0-120mm/sec;

d. Vacuum aluminum plate, can quickly place or remove the substrate;

e. The stroke can be adjusted by the stroke switch between 0 and 800mm;

f. With a scraper to adjust the thickness of the coating film (accuracy 0.01mm);

g. Small size, saving space;

h. Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;

 Technical parameter:

a. Coating speed: 0～120mm/sec;

b. The stroke can be adjusted by the stroke switch between 0 and 800mm.

c. Vacuum plate: with vacuum aluminum plate;

d. Vacuum plate size: L900mm×W200mm×H32mm;

e. Scraper adjustable range: 0 ~ 3.5mm;

f. Heating and drying system: room temperature to 130°C, digital display temperature controller, accuracy ±1°C

g. Including one oil-free vacuum pump;

h. Power supply: 220V/50Hz;

i. Power: 1.8KW

j. Weight: 70KG;

k. Dimensions: L1000mm×W355mm×H325mm;
