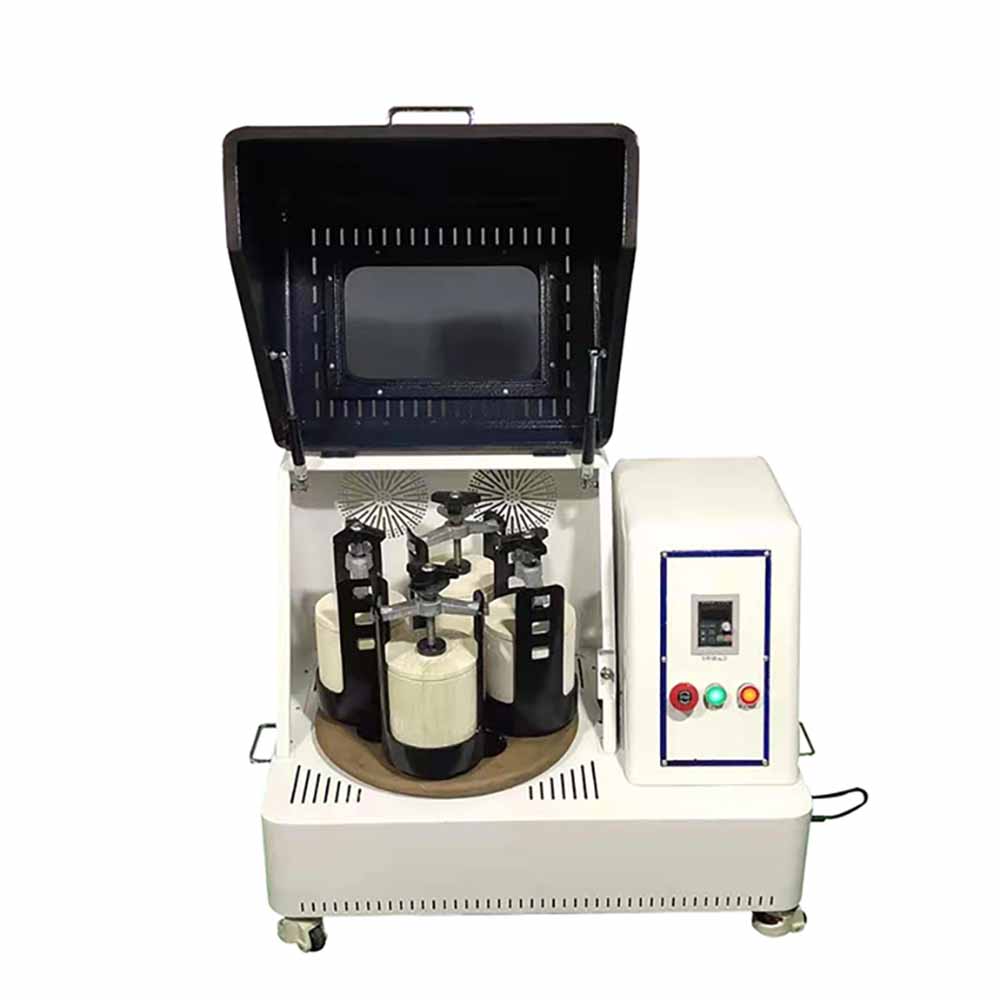

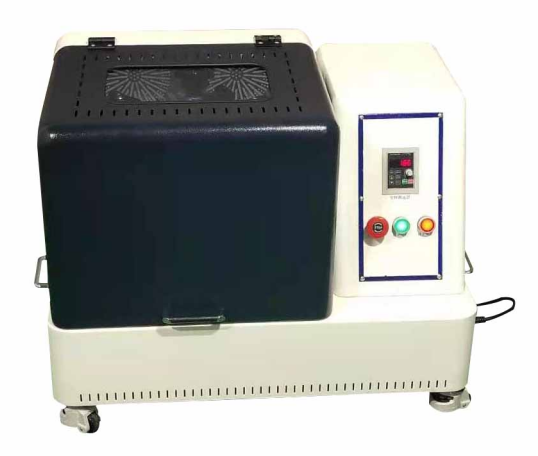

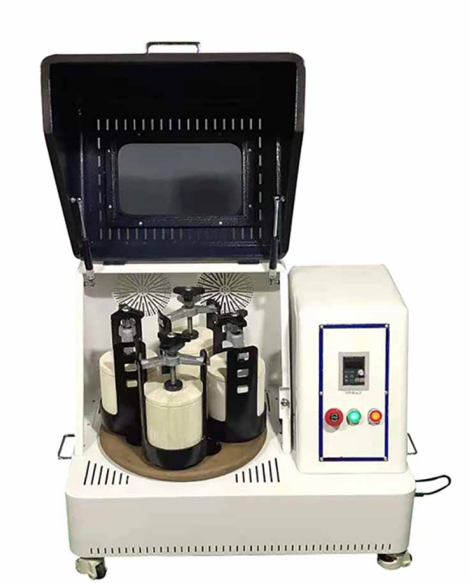

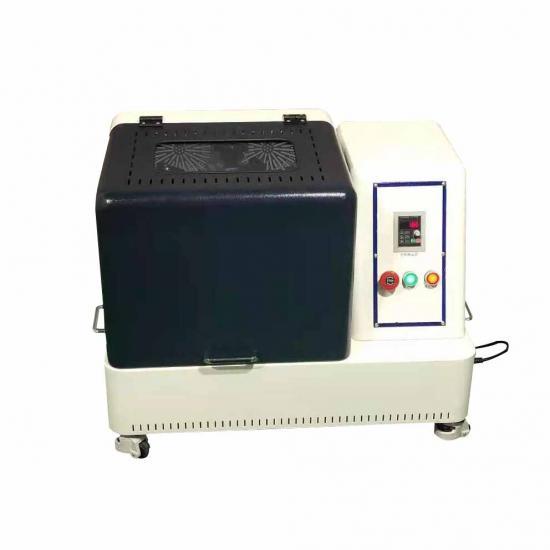

Laboratory 2L 4L 6L Automatic Vertical Planetary Ball Grinding Miller
Frequency conversion control
Ideal speed can be set according to the experimental requirements, high speed accuracy, frequency converter with undervoltage, over current, overload protection, optional intelligent panel, easy operation.
Planetary gear
Integral casting molding main plate, with manual anti-loose staring device (optional self-locking type), delicate and beautiful; Stable speed, high efficiency and good safety.

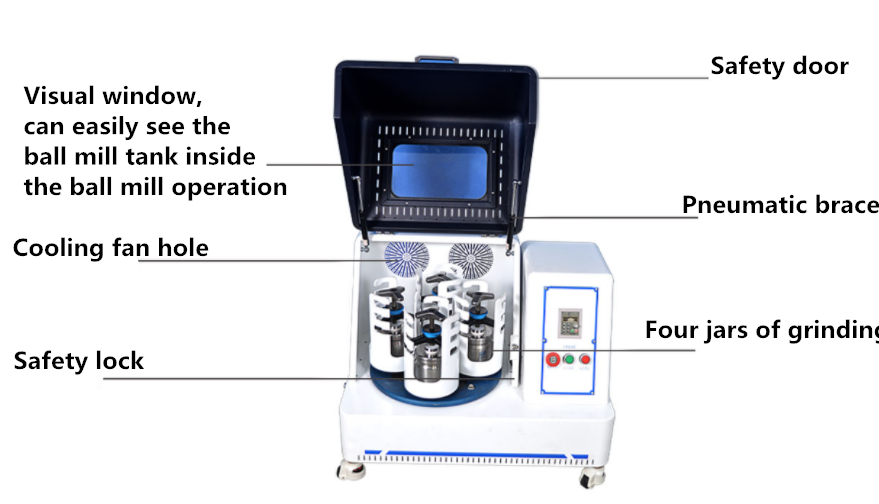

Cooling fan hole
The equipment runs at high speed, and the temperature inside the wall of the ball mill is effectively controlled by designing the reasonable layout of fan holes, so as to protect the normal ball grinding of materials and ensure the stability of the equipment.
Pneumatic brace
Constant support force, moderate resistance, easy to operate, safe.
A.The characteristics
Equipment through professional appearance modelling design, the shell is made of high precision mold stamping forming, generous and delicate, high-end sedate, planetary disc is made of casting forming, numerical control processing technology on structure component processing, transmission gear combination of high-temperature resistant non-metal and metal precision gear, metal heat treatment process of nitriding, can ensure abrasion resistance to prevent the broken shaft axis of rotation, to ensure that the equipment run time at a high speed It is stable and quiet, the grinding tank can be fixed at the same time, the operation is convenient, safe and reliable, the shell can match the color of the product, give the product new vitality, activate the new life of the product, in line with the international and domestic aesthetic needs, in line with ergonomics.
1. Fashion design
The equipment shell uses square design elements, high precision mold stamping forming, especially delicate.
2. Exquisite workmanship
Adopt numerical control processing technology, planetary disc integral casting molding, transmission gear selection of special material precision gear.
3. Grinding tank locking device
The crossbeam and nut of the locking device are all cast, easy to operate, safe and reliable. (Optional automatic locking device)
B. Parameter
|
Mode of transmission |
Gear transmission |
|
Mode of working |
Two and four ball grinding jars work simultaneously |
|
Mode of transmission |
Two thirds of the volume of the ball mill jar |
|

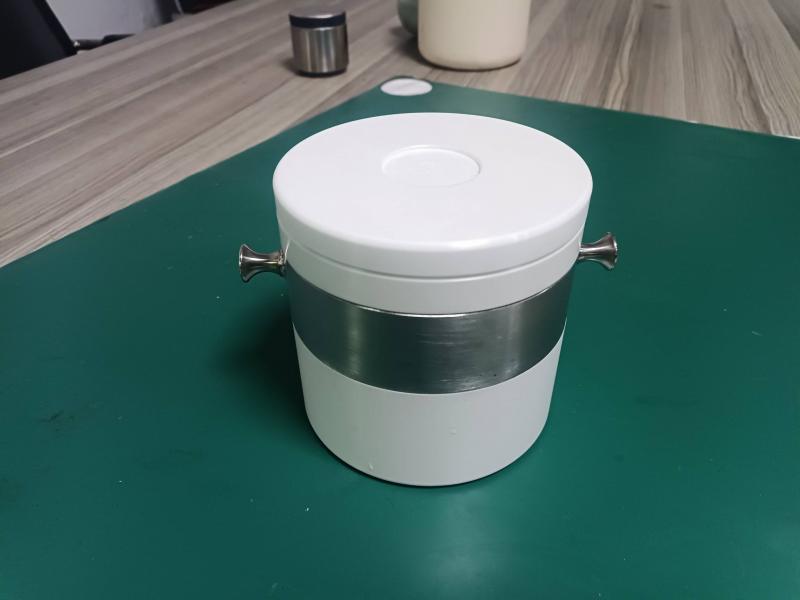

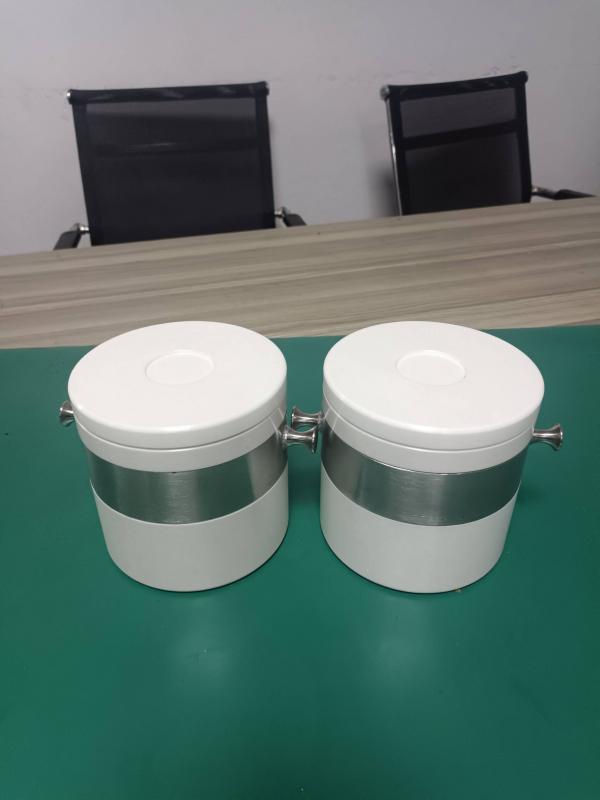

Ball mill tank volume |
0.05-3L per jar, total volume 0.2-12L |
|
Feed granularity |
Soil material≤10mm, and other materials≤3mm |
|
Granularity of discharge |
Up to 1 micron |
|
Mode of speed regulation |
Infinitely adjustable-speed |
|
Model |
Volume |
Configurable ball mill specifications |
Qty |
Configurable vacuum ball mill volume |
Locking device (optional automatic) |
|
PBM-LS-1 |
1 |
50-250ml |
4 |
50-100ml |
manual |
|
PBM-LS-2 |
2 |
50-500ml |
4 |
50-250ml |
manual |
|
PBM-LS-4 |
4 |
250-1000ml |
4 |
50-500ml |
manual |
|
PBM-LS-6 |
6 |
1-1.5L |
4 |
50-1000ml |
manual |
|
PBM-LS-8 |
8 |
1-2L |
4 |
50-1500ml |
manual |
|
PBM-LS-10 |
10 |
1-2.5L |
4 |
50-2000ml |
manual |
|
PBM-LS-12 |
12 |
1-3L |
4 |
1L-2L |
manual |
|
Model |
Power supply (single-phase) |
Power(kw) |
Total time to run the set(min) |
Alternating positive and negative running time(min) |
Adjustable speed Revolution(rpm) Rotation(rpm) |
|
|
PBM-LS-1 |
220V-50HZ |
0.75 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
PBM-LS-2 |
220V-50HZ |
0.75 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
PBM-LS-4 |
220V-50HZ |
0.75 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
PBM-LS-6 |
220V-50HZ |
0.75 |
1-9999 |
1-9999 |
35-370 |
70-740 |
|
PBM-LS-8 |
220V-50HZ |
1.5 |
1-9999 |
1-9999 |
35-320 |
70-640 |
|
PBM-LS-10 |
220V-50HZ |
1.5 |
1-9999 |
1-9999 |
35-320 |
70-640 |
|
PBM-LS-12 |
220V-50HZ |
1.5 |
1-9999 |
1-9999 |
35-320 |
70-640 |
|
Model |
Standard panel (optional intelligent, touch screen) |
Lubrication way |
Mode of speed regulation |
Weight(kg) |
Size(Length * width * height) |
Noise≤db |
|
PBM-LS-1 |
ordinary |
grease |
Frequency control |
90 |
780*470*570 |
60±5 |
|
PBM-LS-2 |
ordinary |
grease |
Frequency control |
93 |
780*470*570 |
60±5 |
|
PBM-LS-4 |
ordinary |
grease |
Frequency control |
93 |
780*470*570 |
60±5 |
|
PBM-LS-6 |
ordinary |
grease |
Frequency control |
95 |
780*470*570 |
60±5 |
|
PBM-LS-8 |
ordinary |
grease |
Frequency control |
148 |
920*600*640 |
63±5 |
|
PBM-LS-10 |
ordinary |
grease |
Frequency control |
150 |
920*600*640 |
63±5 |
|
PBM-LS-12 |
ordinary |
grease |
Frequency control |
152 |
920*600*640 |
63±5 |
