Furnace size

depth 200* width 150* height 150mm

Maximum temperature

1400℃

Common use temperature

0-1300℃

Heating element

Silicon carbide rod

Thermocouple

Type S

Temperature control accuracy

±1℃

Operating Voltage

220V 50hz/60hz

Maximum vacuum

-0.1Mpa

Furnace structure

Integrated compact design, step-type splicing structure, in line with the laws of mechanics, uniform force during heating, heat energy is not easy to dissipate.

Furnace material

High-quality high-alumina polycrystalline ceramic fiber (alumina>92%), resistant to rapid cooling and rapid heating, and excellent thermal insulation effect.

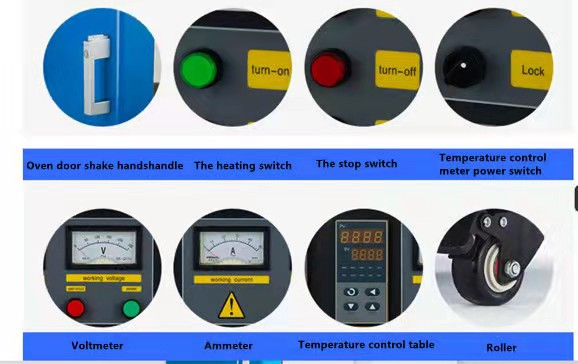

Temperature control

Using the most advanced domestic Yudian instrument manufacturer's only intelligent temperature control instrument, the shell is set to 30 segments of intelligent programmable PID self-tuning, one-key operation, automatic heating, automatic cooling, no need to guard, easy to operate. The temperature control accuracy is ±1℃.

Heating rate

0--15℃/min can be set arbitrarily

Safety protection

It has protection functions such as bias temperature protection, over temperature protection, broken couple protection, over current protection, over voltage protection, etc.

Gas available

Various inert gases such as oxygen, carbon monoxide, nitrogen, argon, water vapor, etc.

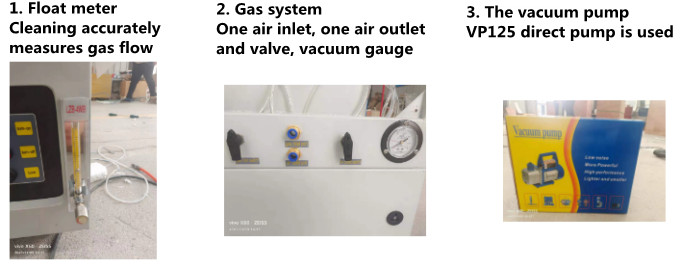

Gas control

The inlet end can be provided with one or more near-air ports, and each air inlet is provided with a needle valve, which is connected to a vacuum gauge. The air outlet is connected to one air outlet, and all the holes are provided with needle valves. Equipped with a vacuum pump.

Sealing method

Using 304 stainless steel flange, it is easy to install and disassemble, anti-oxidation, anti-acid and alkali, double-layer sealing, to ensure the tightness.

Warranty period

One year warranty for furnace body (except heating body), lifetime warranty

Standard accessories

1 vacuum pump, 1 crucible tongs, 2 heating elements, 1 pair of anti-high temperature gloves, 1 instruction manual, certificate, warranty card.

Package

Packed in wooden box and filled with foam, plastic film wraps the furnace body.
