Main parameter

PN: SA2-16-14TP

Max.Temp:1400C

Working temperature:0-1300C

Chamber size:D400*W300*H300mm

The power:16kw

Voltage:380V 2 phase 50/60HZ

Heating rate:0~15  Degree/Min

Max.vacuum:-0.1Mpa

Heating element:Sic heater

Thermocouple：S type

Temperature accuracy: ±1℃

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

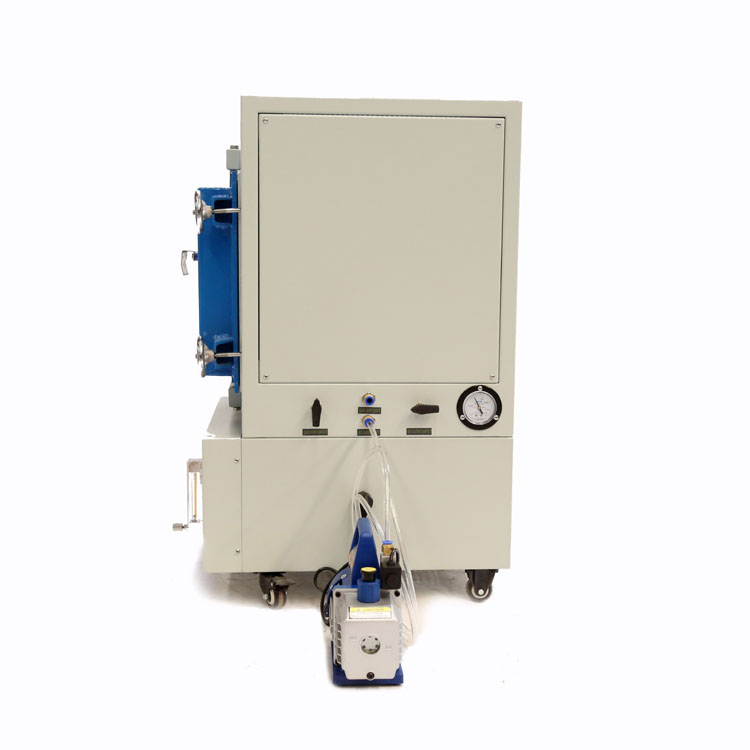

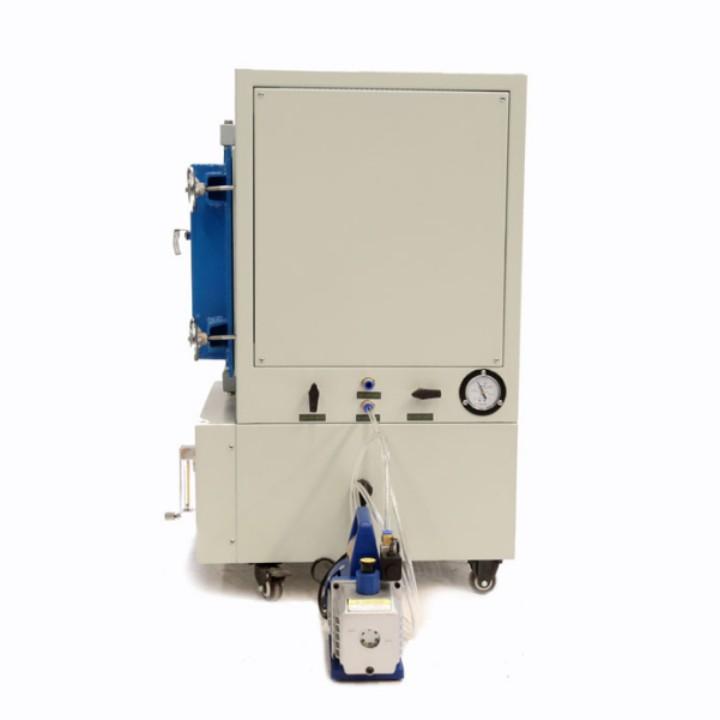

Gas control

The air inlet can be set up 1 or more air intakes, each air inlet is provided with a needle valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump.

Appearance design

The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

Furnace Chamber material

Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Furnace door adopts integral plane milling, silica gel strip embedded seal, with strong sealing, easy to open and close furnace door

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible clip

1 pc

Heating element

2 pcs

User manual

1 book

Door block

1 pc
