Furnace size

Depth 200*width 150*height 150mm

Maximum temperature

1700℃

Common use temperature

0-1600℃

power

4kw

Heating element

Mosi2 heating element

Thermocouple

Type B

Temperature control accuracy

±1℃

Operating Voltage

220V 50hz/60hz

Maximum vacuum

-0.1Mpa

Furnace structure

Integrated compact design, stepped splicing structure, in line with the laws of mechanics, uniform force during heating, heat energy is not easy to lose.

Furnace material

High-quality high-alumina polycrystalline ceramic fiber (alumina>92%), resistant to rapid cold and rapid heat, and excellent thermal insulation effect.

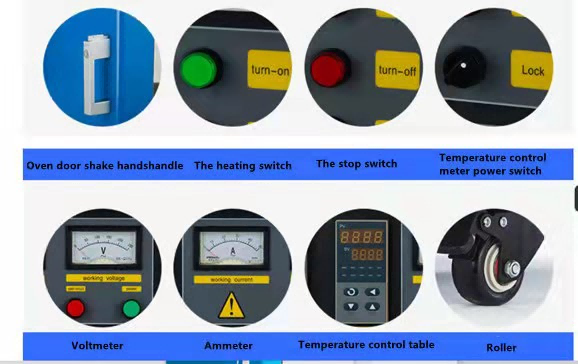

temperature control

It adopts the intelligent temperature control instrument from the most advanced domestic instrument, with 30-segment intelligent programmable PID auto-tuning, one-key operation, automatic heating and cooling, no need to keep the value, simple and convenient operation. The temperature control accuracy is ±1℃.

Heating rate

0--20℃/min can be set arbitrarily, suggest ≦10℃/min

safety protection

It has protection functions such as partial temperature protection, over temperature protection, broken couple protection, over current protection, over pressure protection, etc.

Passable gas

Various inert gases such as oxygen, carbon monoxide, nitrogen, argon, and water vapor.

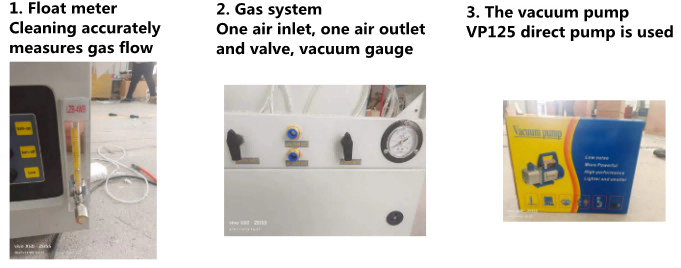

Gas control

The air inlet can be provided with one or more near air ports, and each air inlet is equipped with a needle valve, which is connected to a vacuum gauge. One air outlet is connected to the air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump.

Sealing method

The 304 stainless steel flange is used, which is easy to install and unload, anti-oxidation, anti-acid and alkali, and double-layer sealing to ensure the tightness.

warranty period

Furnace body is guaranteed for one year (except heating body), lifetime warranty

Standard accessories

One vacuum pump, one crucible tongs, one pair of anti-high temperature gloves, one instruction manual, certificate of conformity, and warranty card.

Package

Packed in wooden box and filled with foam, plastic film wraps the furnace body.
