Lab UV Cast Automatic Drying Film Coater

Product Name: Lab UV Cast Automatic Drying Film Coater

MSK-AFA-IIID-UV UV cast automatic drying film coating machine is a bottom heating type small automatic cast film coating scraping machine designed and developed by our company, mainly used for laboratory coating liquid-like or colloidal film use, the equipment adopts stepless variable speed motor for precise control of the film coating speed, to achieve the purpose of even speed to advance the scraper for film coating, the scraper is made of full stainless steel, with a constant The squeegee is made of stainless steel with constant weight, which can improve the consistency and uniformity of the coated film. The equipment adopts bottom vacuum adsorption sample and has bottom heating function, the heating temperature can reach up to 120℃, which can realize the function of baking film at the same time during the coating process and make the film dry quickly. The upper cover adopts ultraviolet light source, which is especially suitable for materials sensitive to ultraviolet light and can make the coated film cured quickly; in addition, the ultraviolet light also has polymerization function, which can polymerize monomer into polymer film.

Features:

1. The equipment adopts stepless variable speed motor to precisely control the coating speed

2. Adopt the crossbar to push the wet film preparer, and there is no special requirement for the shape size of the wet film preparer.

3. The waste collection box placed on the left edge of the vacuum suction plate can collect the excess coating to ensure the cleanliness of the equipment itself and the surrounding area.

4. The intelligent vacuum heating suction plate and the drying system with digital display temperature control can adapt to the development of science and technology of film formation under high temperature conditions.

5. It adopts bottom heating method to bake glue in the process of glue application.

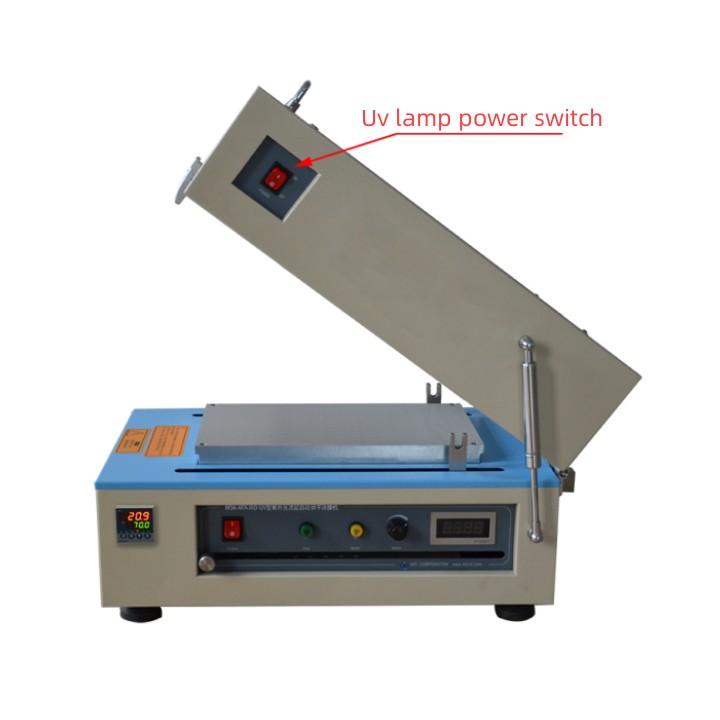

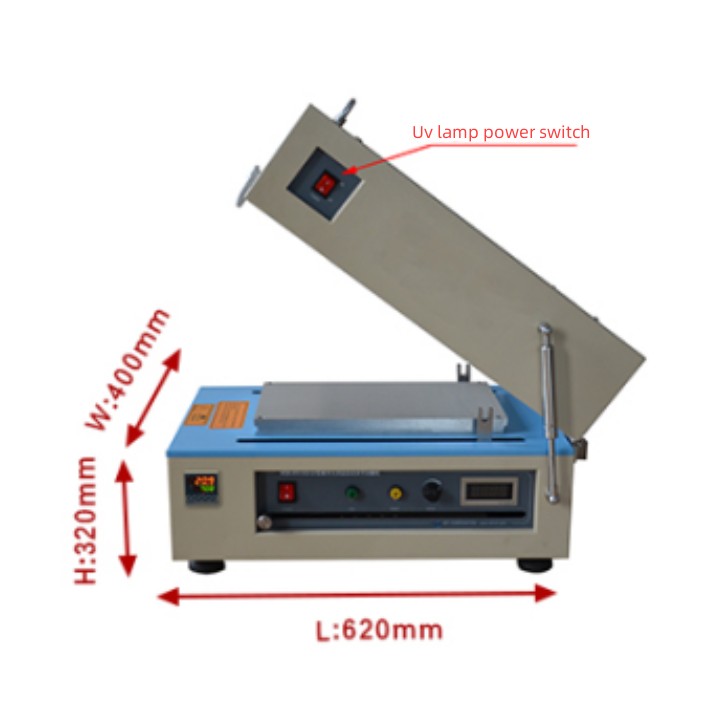

6. The upper cover adopts ultraviolet light source.

7. It has passed CE certification.

Technical parameters：
