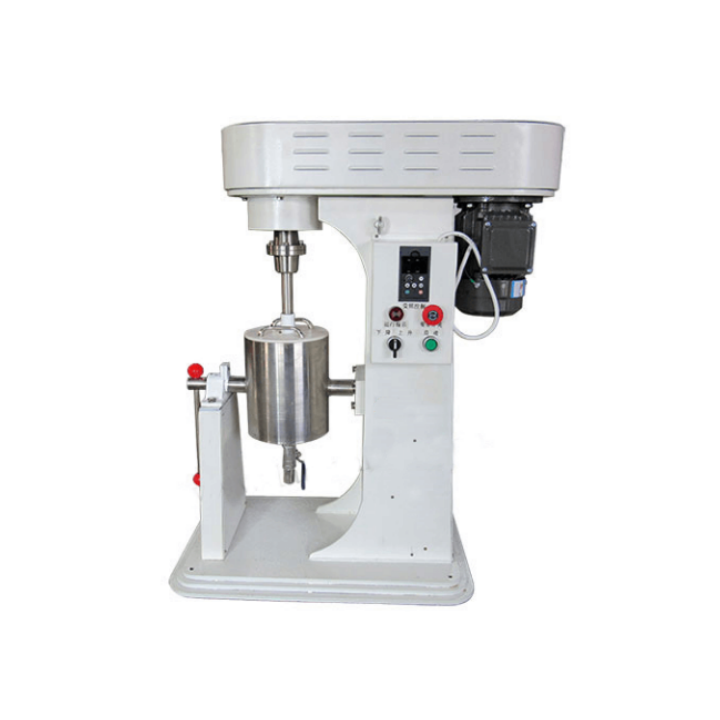

Lab Scale And Industrial Type Stirred Ball Mill Optional Jars of Different Material
Stirred ball mill mainly consist of jar with inner grinding media, stirring device and other auxiliary devices such as recycling device, cooling device, timing device, speed adjusting controller, and etc. Its advantages of high efficiency and fine granularity meet technological requirements of various processes. Stirred ball mill is a kind of ideal equipment that are used to crush new materials and research painting for universities, research centers and enterprises because of its features of small batch, low power and low price.
When machine rotates with high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.
1)High utilization rate of energy, saving energy
2)Granularity is adjustable by adjusting grinding time
3)Less vibration, low noise
4)Simple structure, easy operation
5)Meet requirements of various processes, realize continuous or intermittent production
6)Jar with jacket, easy to control the grinding temperature
7)Customized service is available. Special functions such as timing, speed adjusting, recycling, temperature controlling can be selected and ordered.
8)A variety of grinding jars in different materials is available for customer’s option such as stainless steel, corundum ceramic, polyurethane, zirconia and so on.
Application Cases of Planetary Ball Mill
|
Main Parameters of Stirred Ball Mill |
|||||||||
|
Model No. |
Rotate Speed |
Volume |
Load Capacity |
Power Supply |
Available Jars |
Feed Size |
Output Granularity |
Speed Control Mode |
Category |
|
JM-1L |
50-1400 |
1 |
0.35 |
0.37KW/220V |
Stainless steel |
≤5 |
≤1µm |
Frequency speed adjuster |
Laboratory Scale |
|
JM-2L |
50-1400 |
2 |
0.7 |
0.37KW/220V |
≤5 |
≤1µm |
|||
|
JM-3L |
50-1400 |
3 |
1.05 |
0.37KW/220V |
≤5 |
≤1µm |
|||
|
JM-5L |
60-560 |
5 |
1.75 |
0.75KW/220V |
≤5 |
≤1µm |
Frequency speed adjuster |
Small Type |
|
|
JM-10L |
60-560 |
10 |
3.5 |
1.5KW/220V |
≤10 |
≤1µm |
|||
|
JM-15L |
60-380 |
15 |
5.25 |
2.2KW/380V |
≤10 |
≤1µm |
|||
|
JM-20L |
60-380 |
20 |
7 |
2.2KW/380V |
≤10 |
≤1µm |
Light Type |
||
|
JM-30L |
60-310 |
30 |
10.5 |
3.0KW/380V |
Carbon steel |
≤10 |
≤1µm |
||
|
JM-50L |
60-140 |
50 |
17.5 |
4.0KW/380V |
≤10 |
≤1µm |
|||
|
JM-100L |
60-140 |
100 |
35 |
7.5KW/380V |
≤20 |
≤1µm |
Industrial Type |
||
|
JM-200L |
60-110 |
200 |
70 |
11KW/380V |
≤20 |
≤1µm |
|||
|
JM-300L |
60-110 |
300 |
100 |
15KW/380V |
≤20 |
≤1µm |
|||
|
JM-500L |
60-90 |
500 |
170 |
18.5KW/380V |
≤20 |
≤1µm |
|||
|
JM-600L |
60-90 |
600 |
200 |
22KW/380 |
≤20 |
≤1µm |
|||
Besides the planetary ball mill machine, our factory provides all kinds of mill pots， like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
Suggestions for Matching Solution About Mill Jars & Materials
We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
