Lab Programmable Hi-speed Refrigerated Centrifuge Suitable for PCR Experiments of Genetic Genes

Contact Person：Gilia Ding

Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna

Item no.:
LITH-DH
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Lead Time:
7 days
Compliance:
CE Certified
Warranty:
Two years limited standard warranty

Categories

New Products

IPX34 Spraying Water Rain Tester Machine Testing Chamber view more

Product Detail

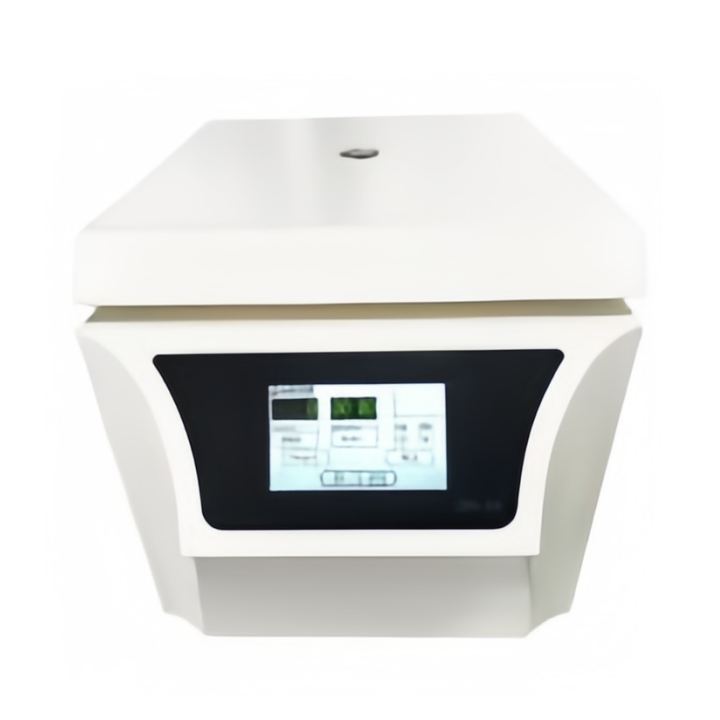

Lab Programmable Hi-speed Refrigerated Centrifuge Suitable for PCR Experiments of Genetic Genes

It is suitable for experiments in biology, medicine, agriculture and other fields, and is the first choice for PCR experiments of genetic genes and protein nucleic acids.

Instrument characteristics

1.5-inch HD touch screen, easy to operate, intuitive display

2. Automatically identify 7 different rotors to eliminate security risks caused by user misoperation

3.9 speed up, 10 speed down, effectively prevent secondary suspension, good centrifugal effect

4. Can store 15 groups of programs, standby user calls

5. Ac variable frequency motor, high speed control accuracy

6. Air-tight rotor, effectively prevent aerosols

7. Free switching of speed and centrifugal force

8. Special air duct to ensure that the rotor works at normal temperature

9. Equipped with overspeed, door protection, unbalanced protection and other protection to ensure human and machine safety

Technical parameter

Model number	DH-16	DH-18	DH-20
Maximum speed	16500r/min	18500r/min	20000r/min
Maximum relative centrifugal force	21380×g	23800×g	27000×g
Maximum capacity	4×100mL	4×100mL	4×100mL
Electric machine	Ac variable frequency motor
Speed accuracy	±30r/min	±30r/min	±30r/min
Timing range	Timing centrifugation: 1min ~ 99 min59sec Continuous centrifugation :Hold
Power source	AC220±22V 50/60Hz	-20℃~+40℃	-20℃~+40℃
Machine noise	<60dB(A)	±1.0℃	±1.0℃
Overall dimensions (L×D×H)	350×495×350(mm)	AC220±22V 50/60Hz	AC220±22V 50/60Hz
Net weight	30kg	<55dB(A)	<55dB(A)

Adaptive rotor

Model number	DH-16		DH-18		DH-20		Test tube size(mm)
Capacity	Max speed rmp/m	Max RCF(xg)	Max speed rmp/m	Max RCF(xg)	Max speed rmp/m	Max RCF(xg)	Test tube size(mm)
Angle rotor 12×1.5/2ml	16500rmp/m	18400×g	18500rmp/m	23800×g	20000rmp/m	27000×g	Φ 10x42
Angle rotor 24×1.5/2ml	15000rmp/m	21380×g	15000rmp/m	21380×g	16000rmp/m	24327×g	Φ 10x42
Angle rotor 48×0.5ml	13000r/min	19080×g	14000r/min	22350×g	15000rmp/m	15839×g	Φ8x32
Angle rotor 32×1.5ml	13000r/min	19270×g	14000r/min	22350×g	15000rmp/m	25658×g	Φ 10x42
Angle rotor 12×5ml	12000r/min	10100×g	13500r/min	12830×g	14500rmp/m	14926×g	Φ 13x53
Angle rotor 12x10ml	12500r/min	16060×g	12500r/min	16060×g	14000rmp/m	20160×g	Φ 16x83
Angle rotor 6x50ml	12000r/min	15130×g	12000r/min	15130×g	13000rmp/m	18327×g	Φ 29x120
Angle rotor 4x100ml	10000r/min	10620×g	11000r/min	12850×g	11000rmp/m	12850×g	Φ 28x119
Angle rotor 8×15ml	12000r/min	15370×g	13000r/min	18040×g	13000rmp/m	18040×g	Φ 17x121
Enzyme -labeled rotor 2x2x48 hole	4000r/min	2000×g	4000r/min	2000×g	4000r/min	2000×g
