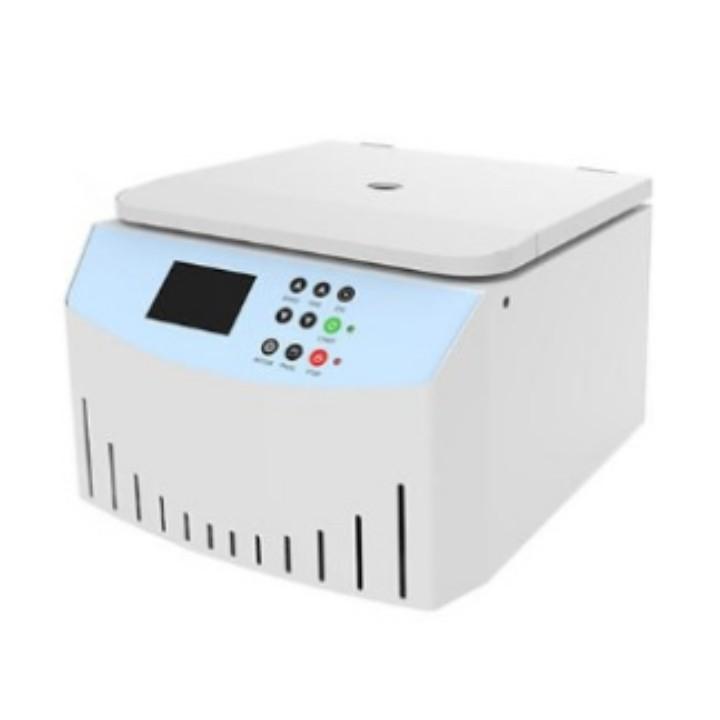

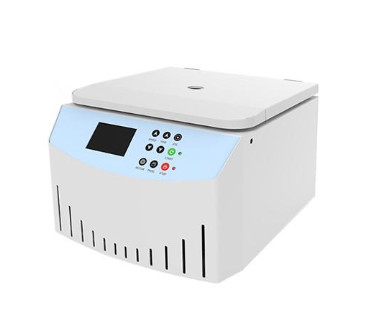

Table Top Microcomputer Controlled Desktop Low Speed Automatic Balancing Centrifuge
Introduction:
BKC-TL4MII is a microcomputer controlled desktop low-speed automatic balancing centrifuge. It has a steel body with plastic-sprayed surface, so it has good rigidity, high strength, novel shape, beautiful appearance, low noise, low temperature rise, safety and reliability.
This machine adopts DC brushless maintenance-free motor drive, microcomputer control, door cover protection, make your operation more safe, more convenient, more reliable.
Application:
It can be widely used in the separation of particles of different density in scientific research laboratories and production department such as radioimmunity, biochemistry and pharmacy.
Features:
1.It can store 20 programs, automatic memory from the last running programs.
2. Power failure self-recovery, improve efficiency.
3.The program is adjustable during running, convenient and fast;
4. Adjustable acceleration levels: 16, deceleration levels: 16.
5. It has continuous, instantaneous, point operation modes.
6. LCD display, real-time display of all operating parameters.
7. Program memory function, automatic memory of the last running parameters,
8. English and Chinese could be change freely.
Technical Parameters:
Model |
BKC-TL4MII |
Max. Speed |
4000rpm |
Max. RCF |
2250xg |
Max. Capacity |
4*100ml |
Speed Precision |
±1% or 20rpm |
Time Range |
1s~999min |
Power Supply |
AC 110/220V, 50/60Hz |
Consumption |
250W |
Noise |
≤65dB |
External Size(L*W*H)mm |
430*350*270 |
Package Size(L*W*H)mm |
490*410*330 |
Net Weight/Gross Weight(kg) |
18/22 |
Rotor:
No. |
Rotor |
Capacity |
Max.Speed(rpm) |
Max.RCF(xg) |
No.1 |
Angle Rotor |
4*50ml |
4000 |
2100 |
No.2 |
4*100ml |
2100 |
||
No.3 |
6*50ml |
2100 |
||
No.4 |
8*15ml |
2100 |
||
No.5 |
12*5/7ml |
2150 |
||
No.6 |
12*10ml |
2200 |
||
No.7 |
12*15ml |
2200 |
||
No.8 |
12*20ml |
2150 |
||
No.9 |
18*10ml |
2250 |
||
No.10 |
24*10ml |
2250 |
||
No.11 |
30*5/7ml |
2250 |
