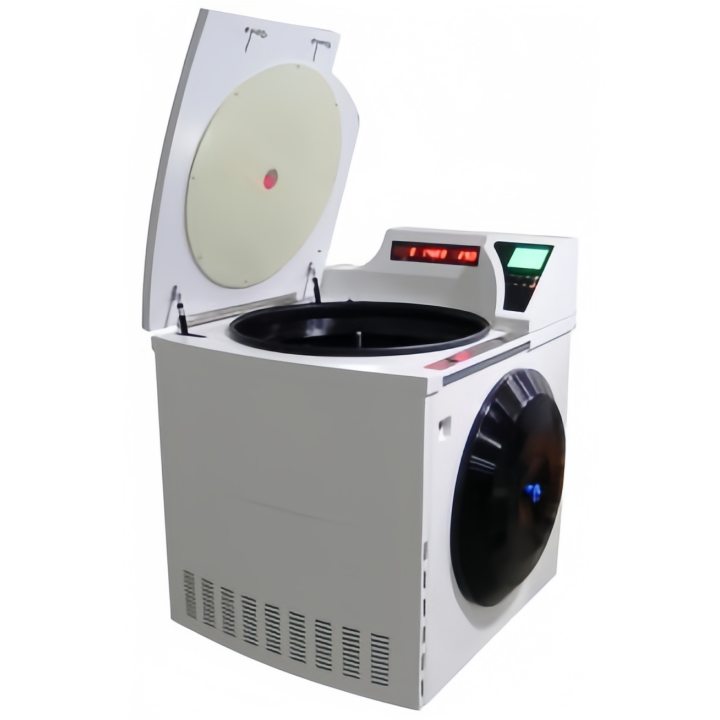

Lab 14.4L Super Capacity Refrigerated Centrifuge with 8000RPM High Speed
This series of large capacity design centrifuge, 14.4L super capacity, can separate 12 bags of 400 ~ 500ml whole blood at a time, to meet the production efficiency; Widely used in blood stations, pharmaceuticals, biological products and other industries.
Product characteristics
1) Drive: AC variable frequency motor drive. It has a soft brake function to prevent sample resuspension.
2) Speed control: It takes 14 seconds to accelerate to the maximum speed, and 15 seconds to drop from the maximum speed to zero.
3) Display: Intelligent control, touch panel, LCD, LED dual display, operating parameters can be automatically memorized, RCF can be set directly.
4) Refrigeration: Using imported fluorine-free compressor units and control valves, small vibration, fast refrigeration, low noise, to meet the requirements of environmental protection.
5) Rotor: Rotor standby cooling function. The rotor can be autoclaved (121℃·20 min).
6) Fuselage: Fuselage adopts high quality steel structure; Stainless steel centrifugal chamber.
7) Security protection: Rotor number identification function, electronic security door lock, with door cover, overspeed, imbalance and other multiple protection functions.
8) Control: 10 kinds of lifting rate, can store 40 kinds of custom working mode, point function, short centrifugation, easy to diversify centrifugation.
Performance parameter
|
Model number |
DD8KR |
|
Maximum speed |
8000r/min |
|
Maximum relative centrifugal force |
12160×g |
|
Maximum capacity |
6×2400ml |
|
Speed accuracy |
±20r/min |
|
Timing range |
0～99h59min59s |
|
Temperature control range |
-20℃~40℃ |
|
Temperature control accuracy |
±1℃ |
|
Compressor |
Imported high performance compressor unit, fluorine free refrigerant |
|
Machine noise |
≤58dB |
|
Electric machine |
Ac variable frequency motor, microcomputer control |
|
Power source |
AC 220V 50Hz 35A |
|
Overall dimension |
960×860×1200mm |
|
Weight |
500kg |
Adaptive rotor
|
Rotor number |
Max capacity |
Max speed |
Max RCF |
Centrifugal tube size |
|
No.36 angle rotor |
6×500ml |
8000r/min |
11680×g |
Φ74×168 |
|
No.40 angle rotor |
6×1000ml |
7200r/min |
12160×g |
Φ97×175 |
|
No.71 horizontal rotor |
6×2400ml |
4200r/min |
6130×g |
Twenty-four 200ml quad bags |
|
No.72 horizontal rotor |
2×6×1000ml |
4000r/min |
5000×g |
