Lab Mold Incubator with Multi-segment Program Control Technology

Contact Person:Gilia Ding
Email: gilia@inthelaboratory.com
Tel:+86 177 5900 4070
Telephone:+86-177-59004070

Whatsapp: +86 177 5900 4070

Skype: gia@tmaxcn.com

Wechat:Dingqiuna
  • Item no.:

    LITH-LMI
  • Product Detail

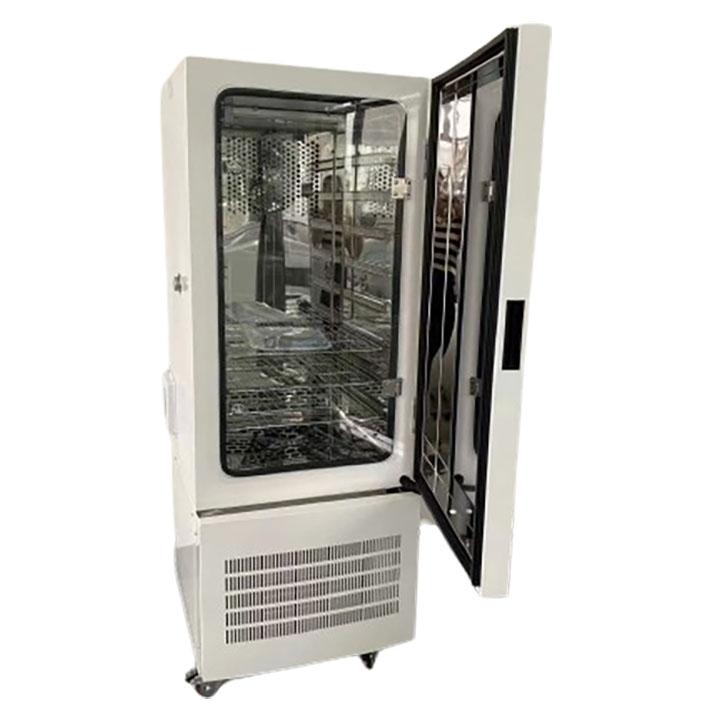

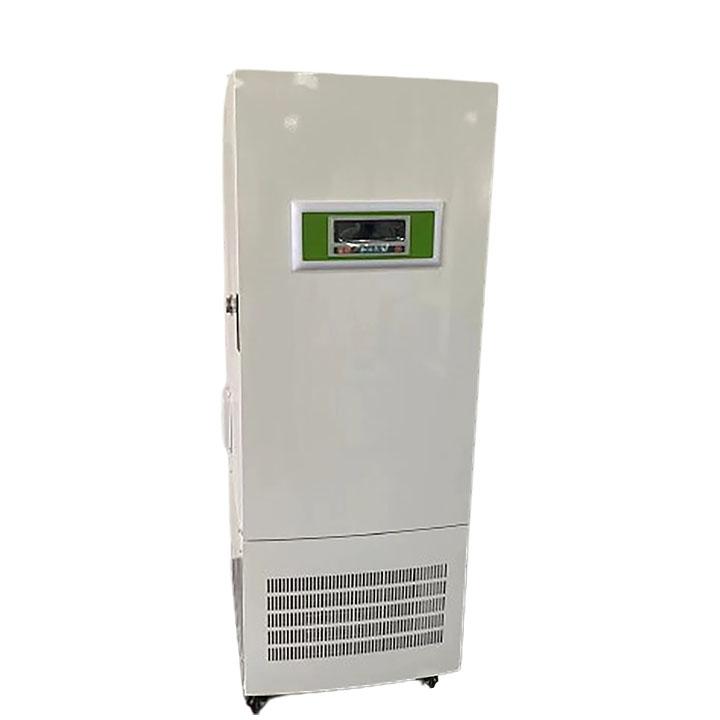

Lab Mold Incubator with Multi-segment Program Control Technology


Biochemical incubator



This product is suitable for the special equipment used for the cultivation and incubation of various microorganisms in the production, detection and scientific research of medicine, chemical industry, environmental protection, agriculture and other industries.

The mold incubator has high-precision laboratory equipment with heating, cooling, humidifying, and disinfecting functions. It is widely used in the cultivation of various molds, tissue cells, microorganisms, and anti-biotics. It can also be used for the constant temperature test of insects, small animals, and other uses. It has one more disinfection function than the biochemical incubator. Generally, it has a UV germicidal lamp and can be used as a biochemical incubator. Some mold incubators have added humidity control on the basis of constant temperature and sterilization. The mold incubator with humidity control can also be used as a constant temperature and humidity incubator.


Features

1. Large-screen LCD display, multiple groups of data on one screen, menu-type operation interface, easy to understand and easy to operate.

2. Temperature and humidity control adopts new digital display multi-segment program control technology with high accuracy and no overshoot.

3. PID control mode, small temperature and humidity fluctuations.

4. The program with 99 cycles, each cycle is divided into 30 sections, and the cyclic steps of 99 hours and 99 minutes each can almost meet all the complicated experimental processes.

5. If the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator to ensure that the experiment runs safely without accidents.

6. The cabinet and studio are designed with arc structure.

7. The studio is made of stainless steel with mirror surface. The height of the shelf can be adjusted and assembled freely, which is convenient for cleaning the working room.

8. The studio is equipped with germicidal lamps to facilitate sterilization in the work room.

9. The surface of the outer box is sprayed with plastic, the whole machine is beautiful and reasonable in appearance, and it is convenient to use and maintain.

10. The door of the incubator is a double door design. The inner door is made of tempered glass, which can directly observe the culture conditions in the working room.

11. Adopting brand compressor and independently developed compressor cooling system can effectively extend the compressor's service life.

12. Using JAKEL tube-flow circulation fan, with uniquely designed air duct structure, a good air circulation system is manufactured, which effectively guarantees the temperature uniformity in the box.

13. Use well-known brand humidity sensor and self-designed built-in water tank electric heating tube humidification system to effectively guarantee humidity deviation.

14. Equipped with leakage protector.

15. Equipped with auxiliary temperature controller to ensure that the product can work normally (for heating) when the main temperature control is out of control.

16.With UV sterilization device


SPECIFICATIONS

Model

LMI-100

LMI -150

LMI-250

LMI-300

LMI-400

LMI-800

Nominal volume(L)

100

150

250

300

400

800

Temperature control range(℃)

0~65

Temperature resolution

0.1℃

Temperature fluctuation(℃)

High temperature±0.5、Low temperature±1

Temperature uniformity(℃)

±1

Humidity control range

40~90%RH

Rated power(W)

1100

1400

1950

2000

2600

3200

Humidity fluctuation

±3%RH

Refrigerant

R134a

Power supply

220V±10%,50Hz±2%

Continuous running time

Can run continuously for a long time

Working environment(℃)

5~40

Dimensions(cm)W×D×H

58×61×116

61×63×135

71×73×153

71×77×164

84×100×121

126×612×120

Operating room size(cm)W×D×H

45×38×59

48×40×78

58×50×85

58×54×95

70×55×114

122×58.5×112

Net weight/gross weight(kg)

82/125

95/138

103/147

115/157

125/180

185/250

Optional parts

1.Embedded printer

2.RS485 interface and special software

3.Test hole 25mm / 50mm

4.Box door observation window

5.Multi-stage programmable temperature and humidity controller

6. Wireless alarm system (SMS alarm system)
