Lab High End Planetary Ball Mill Machine with Induction Lamp Device

Planetary ball mill is a necessary device for mixing, fine grinding, small sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials. It is the ideal equipment for scientific research units, colleges and universities, and enterprise laboratories to obtain micro-particle research specimens (four samples can be obtained at the same time for each experiment), and with the vacuum ball mill tank, the specimens can be ground under vacuum. It is widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments. The rotational speed, alternating time of forward and reverse rotation, and total grinding time can be set according to the process requirements.



I. Working principle

The PBM series planetary ball mill is equipped with four ball grinding jars on the same planetary mechanism disk. When the planetary disk rotates, the ball grinding jars rotate around the axis of the rotary disk and rotate around their own axis at the same time, making planetary motion. The grinding balls in the jars collide with each other in the high-speed motion, grinding and mixing the sample. The product can grind and mix products with different particle sizes and materials by both dry and wet methods, and the smallest particle size can be as small as 0.1 micron (i.e. 1.0×10mm-4).



II. Technical parameters

Model	PBM- 10L
Volume of ball mill tank(ML)	2L*4
Material of ball mill tank	Available in hard steel, stainless steel, zirconia, onyx, corundum, tungsten carbide, nylon,polyurethane, polytetrafluoro, etc.
Grinding media material	Tungsten carbide, stainless steel, agate, zirconia, corundum, etc.
Maximum charge per tank	Materials and grinding media do not exceed two-thirds of the volume
Feeding size	Less than 10 mm for brittle materials, less than 3 mm for others
Discharge size	Down to 0.1 micron (depending on material characteristics)
Rotation speed	Max. 35-320rpm for metric rotation, 70-640rpm for autogenous rotation
Rotational speed ratio (Rotation: Rotation)	1:2
Speed control mode	Variable frequency speed control
Planetary disk drive mode	Gear drive
Working voltage	Three phase 380V, 50HZ
Host motor power and frequency conversion power	1.5KW (motor brand is Dedon, inverter brand is Delixi)
Working mode	Two or four tanks working simultaneously
Maximum continuous working time	72 hours
Program control	Better man-machine interface integration (touch screen configuration), free to set the total setting, positive rotation, reverse rotation, interval standby time, repeated alternate operation, real-time alarm for running equipment can be over-current, over-voltage, overload protection, etc.
Lubrication method of planetary mechanism	Planetary mechanism transmission system adopts gear box type liquid oil immersion lubrication, which solves the problem of wear and tear caused by untimely lubrication of transmission components, reduces noise and shortens the service life of equipment.
Reference size(MM)	940 (L) *620 (W) *760 (H)
Reference weight(KG)	Approx. 180



III. Product features

1. The equipment through the professional appearance design, the shell using high precision laser cutting, CNC bending molding, generous and delicate, high-end and stable.

2. The planetary disk, structural components using CNC machining technology processing, nitriding metal heat treatment process, to ensure that the rotation of the shaft parts wear-resistant to prevent broken shaft, the transmission gear is made of high-temperature wear-resistant non-metallic and metal combination of precision gears, using gear box liquid oil immersion lubrication, safe and reliable, low noise, no pollution, low loss;

3. Equipped with induction lamp device: the working lamp is controlled by infrared body sensor, the lamp is on when people come and off when people leave, which is convenient and energy-saving.

4. The ball mill tank adopts planetary motion, with high ball mill efficiency and fine particle size.

5. The frequency converter has under-voltage and over-current protection, which can protect the motor and other electrical parts.

6. The cover adopts the hydraulic lever uncovering type, and the normal operation of the equipment and the personal safety of the operator are ensured by the electromagnetic safety latch and the latch type limit switch.

7. Double-layer vacuum toughened glass is used for the window glass, which not only reduces sound and noise, but also ensures personal safety, and the interior of the ball mill chamber is equipped with sound-absorbing cotton.

8. The electrical control part is designed with independent control box built-in equipment, 5 sets of exhaust fans to force air cooling, forming a one-in-one-out internal circulation cooling system.

9. Low center of gravity, stable performance, compact structure, easy to operate, safe and reliable, low noise, no pollution, low loss.

Small loss.

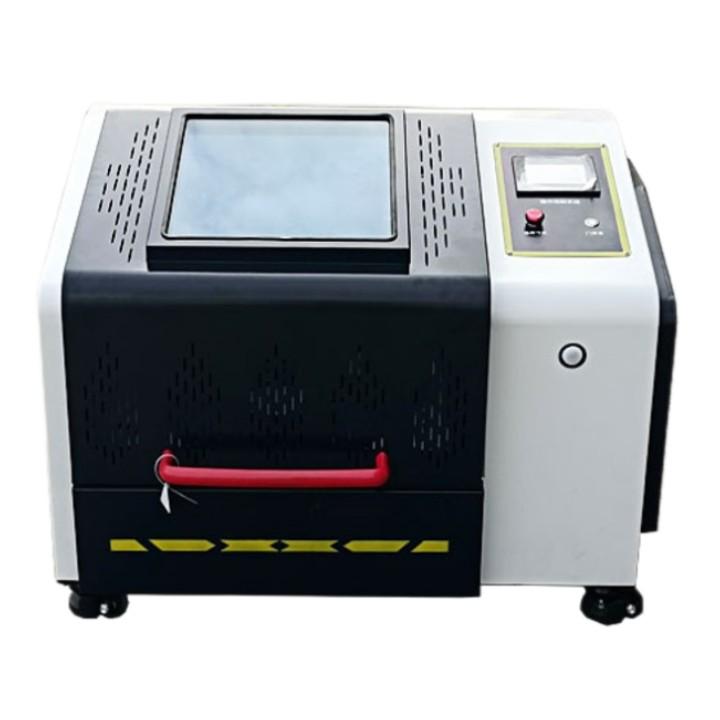

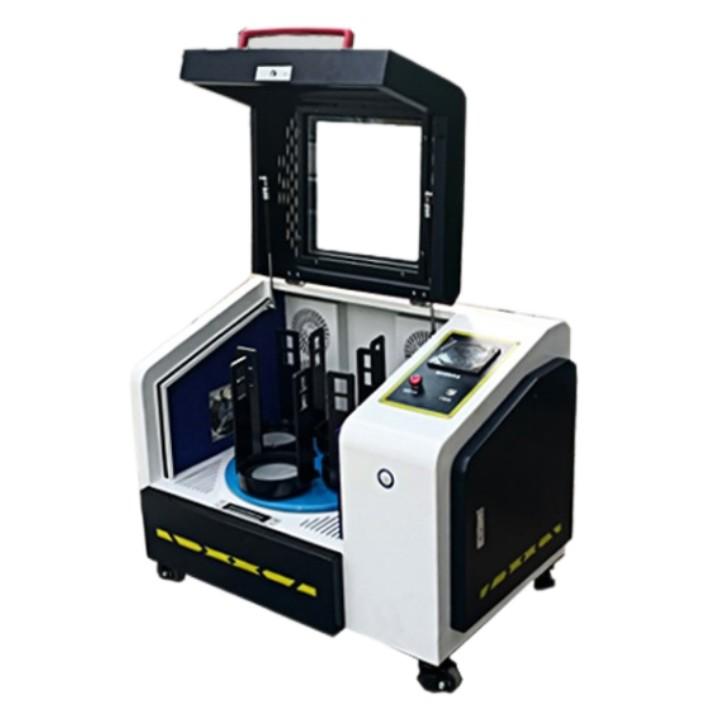

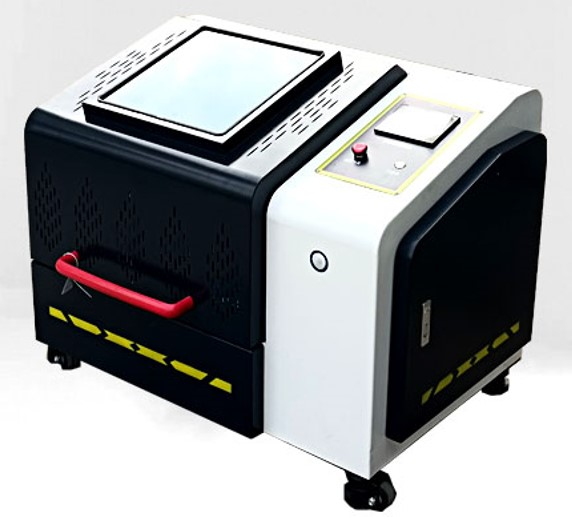

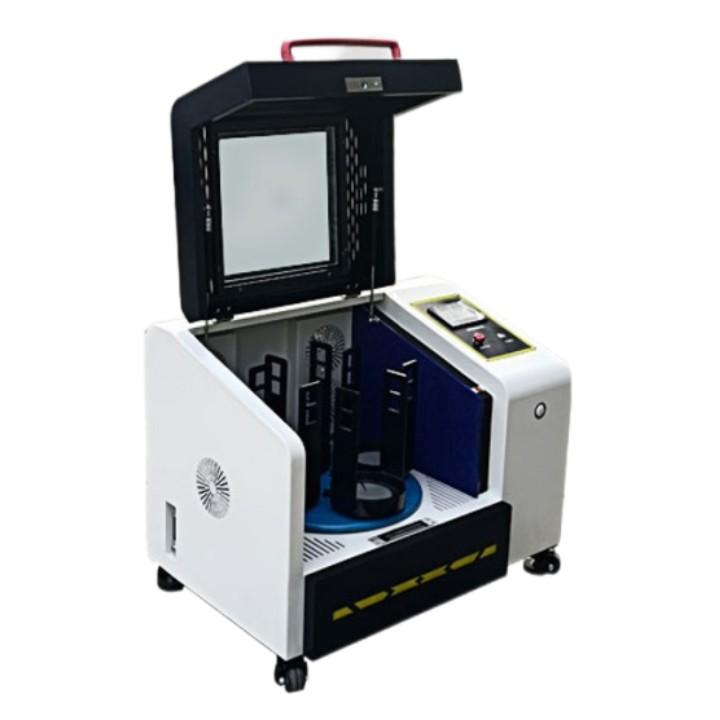

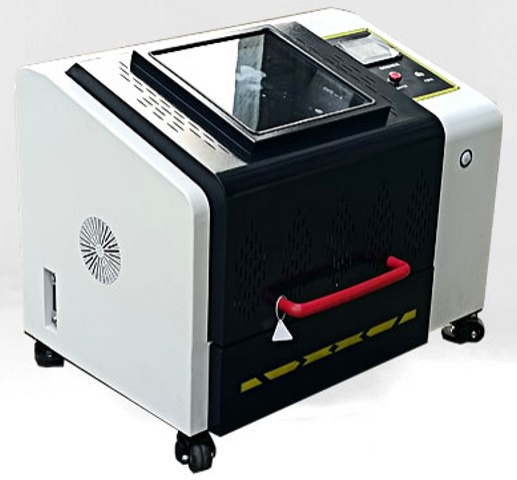

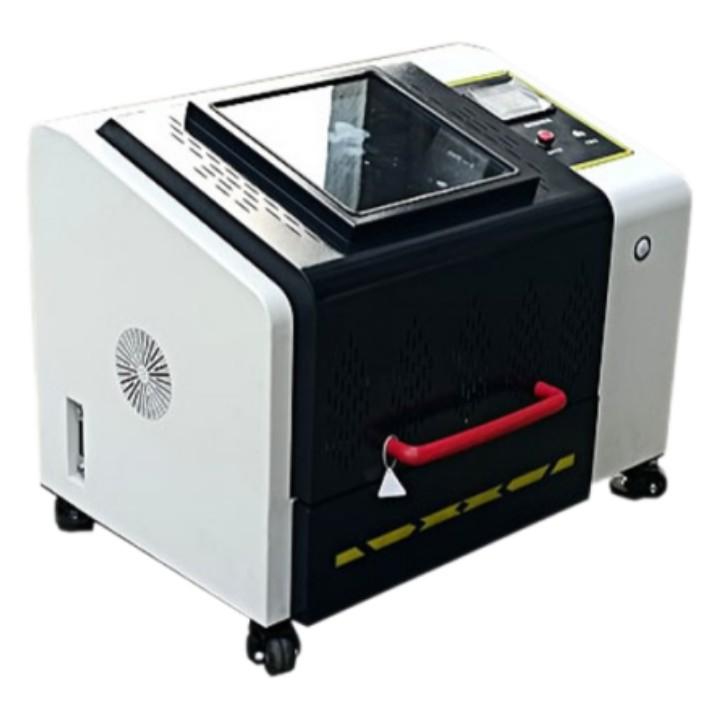

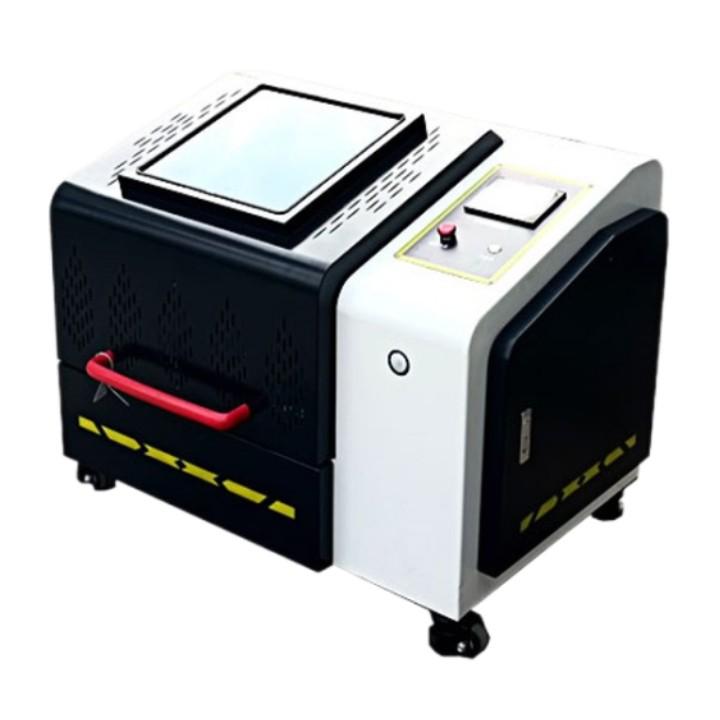

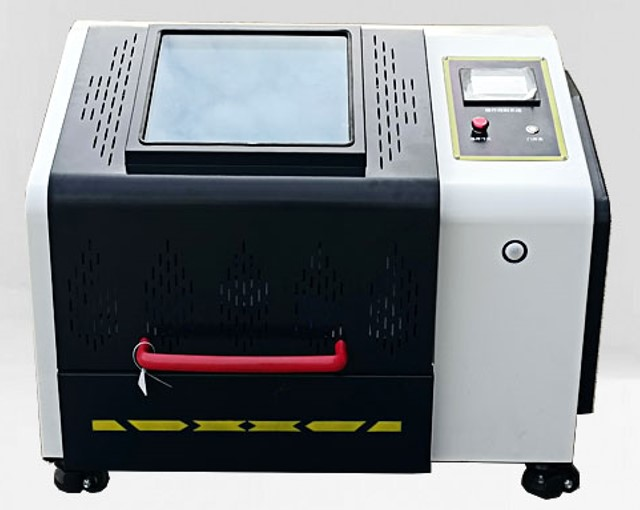

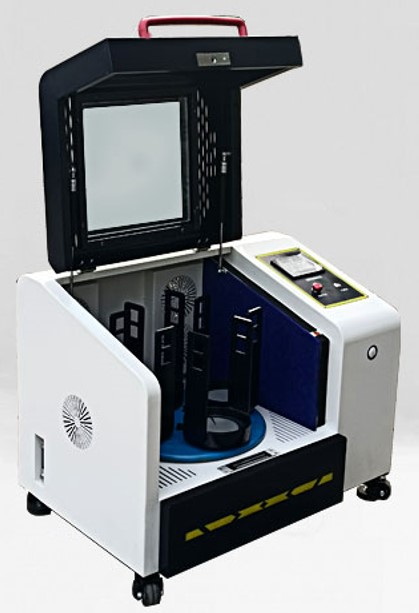

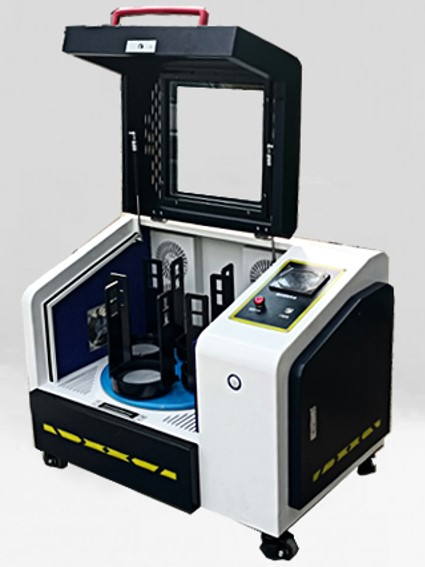

IV. High-end planetary ball mill products related to the picture.
