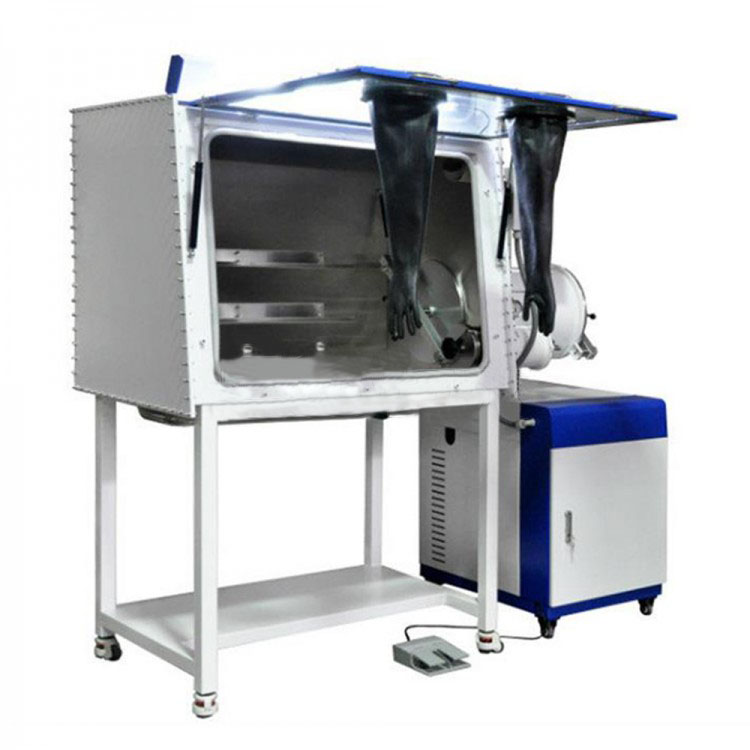

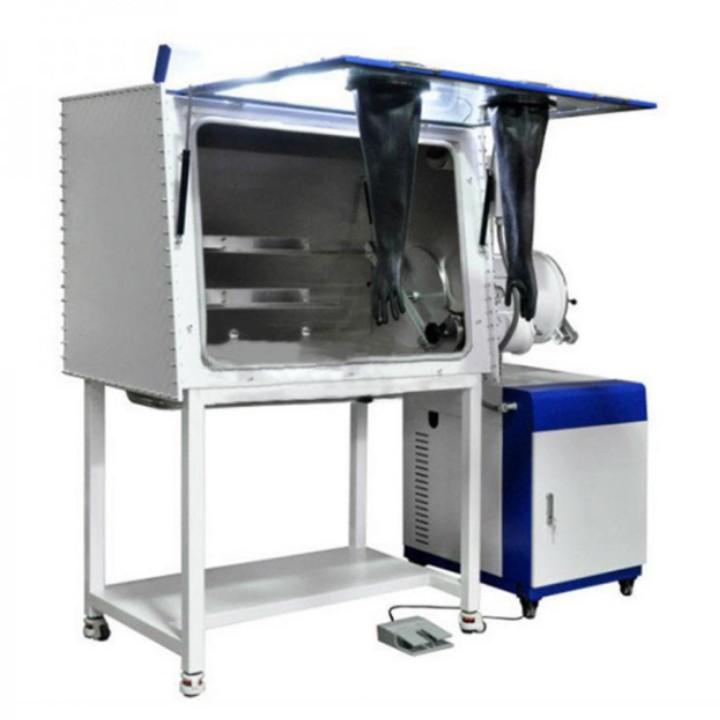

Lab Front Lift Window Stainless Steel Vacuum Glove Box

Product Overview：

The front lift window stainless steel vacuum glove box is designed for the study of materials science, chemistry, semiconductors and related industries, using German BASF oxygen removal materials and American UOP high efficiency water absorption materials, the water and oxygen content in the glove box can sustain a high clean and high purity gas environment with gas purity below 1ppm for a long time, hand/automatic control system air pressure; hand/automatic control system purification state; automatic control Gas purification system reduction process; automatic prompt, alarm function; system control parameter setting; system parameter recording; system actuator working condition monitoring; transparent front panel makes operation more convenient and easy, widely used in the preparation of nanomaterials and battery electrode materials.

Technical parameters：

Indicators: water ≤ 1ppm, oxygen ≤ 1ppm.

Leakage rate: ≤ 0.001 vol%/h.

Main chamber: dimensions 1200mm × 750mm × 900mm (L × W × H), openable front window glass.

Glove openings: 2 pcs, of hard aluminium alloy/polymetal.

Glove: North, USA, glove calibre 8", thickness 0.4 mm, made of butyl rubber.

Large transition compartment: 1pc, φ360mm × L 600mm, vacuum ≤ -0.1 MPa.

Small transition chamber: 1pc, φ150mm × L 330mm, vacuum ≤ -0.1 MPa.

Control system: Siemens microsystem controller, touch screen operation and control.

Operation interface: Siemens 7" colour touch screen, Chinese interface, human-machine dialogue, convenient operation.

Regeneration process: full automatic valve control, safe and reliable.

Vacuum pump: using Atlas GVD-12 or Eduard RV12.

Circulation fan: high speed variable frequency fan, flow rate 0-100m3/h, microprocessor controlled, pressure tested stainless steel unit.

Single purification column: German BASF deaerating material, American UOP high efficiency water absorption material.

Purification valve: Burkert, Germany, fully automatic electro-pneumatic valve, modular design.

Filters: high efficiency filters with 0.3 micron pore size filters in accordance with HEPA standards.

Solvent column: absorption of solvents volatilised at work, high efficiency activated carbon, which can be up according to the use (or different adsorption materials according to the solvents adsorbed).
