No.

Accessory Name

Quantity

Unit

Accessory pictures

1

KF40 Clamp

4

sets

2

KF25 Clamp

3

sets

3

KF40 Bellow

2

pcs

4

KF25 Bellow

1

pc

5

Gloves

4

pcs

6

Glove seals

8

pc

7

Eduard vacuum pump

1

pc

8

Oil mist filter

1

pc

9

Water Analyser

1

pc

10

Oxygen analyser

1

pc

11

Instruction manual

1

pc

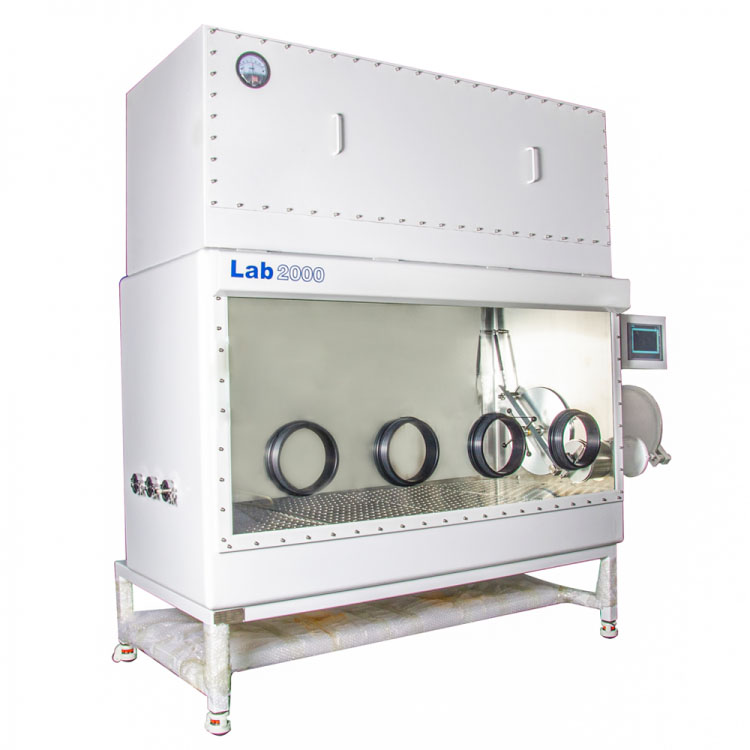

Boxes

Description

Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm

Net dimensions: 1800mm(L) x 950mm(W) x 1700mm(H)

Volume

2.9 m³

Front window

Panel: 8 mm thick safety toughened glass or 10 mm thick polycarbonate (optional)

Dimensions: 1735mm(L) x 839mm(H)

Glove opening

Hard aluminium or paraformaldehyde (optional)

Calibre 220 mm, O-ring seal

Gloves

Material: butyl rubber

Thickness: 0.4 mm or 0.8 mm (optional)

Filters

Outlet and inlet filters, filtration <0.3μm

Lighting

LED lighting in the upper part of the front window roof

Leakage rate

Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to Class 1 hermeticity < 0.001 vol%/h Final acceptance test.

GP20 gas purification system

Description

Automatic removal of H2O and O2

Single clean-up column system with automatic regeneration (optional GP200 double clean-up column)

Sealed gas circulation lines

Voltage used

AC 230 V / 50-60 Hz, 10 A or AC 115 V / 50-60 Hz, 20 A (optional)

Working gases

Working gases: N2, Ar, He (purity ≥ 99.999%)

Regenerative gas: H2 accounts for 5-10%, the rest is working gas (purity ≥ 99.999%)

Vacuum pumps

Specifications: Rotary vane vacuum pump with oil mist filter, with gas ballast control

Flow rate: 12 m³/h (7 cfm), double baseplate, vacuum < 2 x 10-3 mbar or dry pump (optional)

Circulation units

Oil-free high-speed fans

Air volume: 80 m³/h

Valves

KF40 High vacuum valve

Leakage rate

Leak detection according to ISO 10648-2 : 1994 / EJ/T 1096-1999 "Hermetically sealed chambers - Part 2: Classification of hermeticity and related test methods" Oxygen content method and pressure change method for testing of chambers according to class 1 hermeticity < 0.001 vol%/h Final acceptance test.

Control cabinet dimensions

600mm (L) x 800mm (D) x 870mm (H)

Transition cabin

Large Transitional Cabin

Materials

Stainless steel type 304(1.4301), thickness 3 mm

Size

φ360mmx600mm(L) or φ390mmx600mm(L) (optional)

Vacuum level

< 1 x 10-2 mbar

Small Transitional Cabin

Materials

Stainless steel type 304(1.4301),, thickness 2 mm

Size

φ150mm x 330mm(L)

Vacuum level

< 1 x 10-2 mbar

Cleaning systems

Description

By setting the corresponding time and pressure, the system can automatically displace the gas to the chamber.

Analyzers

Oxygen analyser

Size

205 mm (L) x 80 mm (W) x 60 mm (H)

Measurement range

0-1000 ppm

Other Oxygen Analysers

GE oxy.IQ™ Oxygen Transmitter

Moisture analyser

Size

205 mm (L) x 80 mm (W) x 60 mm (H)

Measurement range

0-500 ppm

Other water analysers

GE VeriDri™ Dew Point Transmitter

Solvent purification systems

Description

Material: Stainless steel 1.4301 (SUS type 304), thickness 3 mm

Internal dimensions: 220mm(Φ) x 450mm(H)

High quality activated carbon

Clean (Class 100) high efficiency purification circulation system

Description

The maximum concentration limit of suspended particles in the controlled environment in the chamber is greater than or equal to the required particle size (pcs/m³) by means of a high efficiency class 100 clean environment filtration and purification system

≥ (suspended particle diameter) 5.0μm less than 29pcs/m³

≥ (suspended particle diameter) 0.5μm less than 3520 /m³
